Summary of Contents for Blue Diamond Rototiller

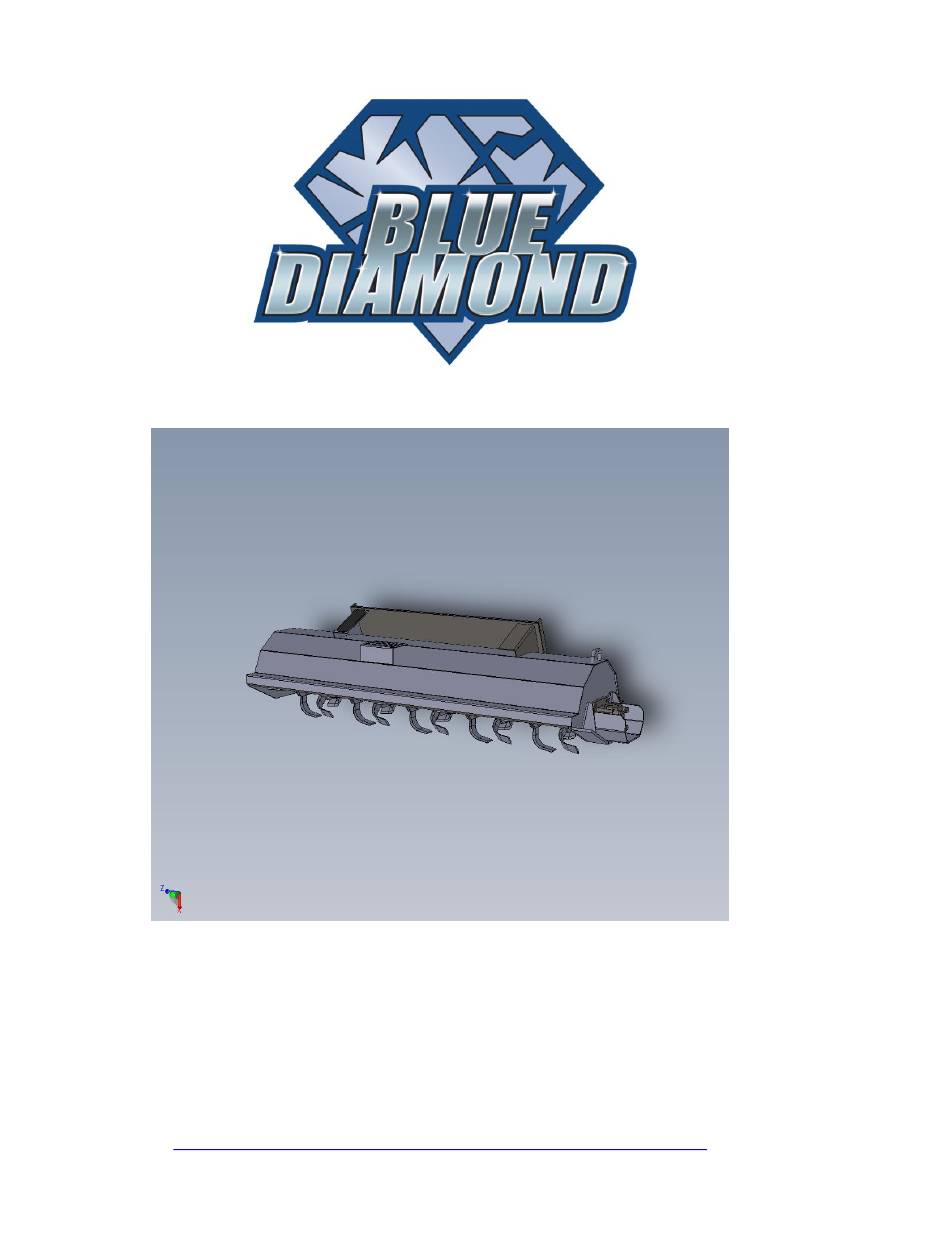

- Page 1 Rototiller Blue Diamond Rototiller Operation and Maintenance Manual To ensure warranty coverage please register your attachment at: http://www.bluediamondattachments.com/warranty-registration/ Blue Diamond...
-
Page 2: Document History
Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning any equipment, equipment feature, or service offered or to be offered by Blue Diamond. Blue Diamond reserves the right to make changes to this document at any time, without notice, and assumes no responsibility for its use. -
Page 3: Table Of Contents
Safety Notices ......................5 Modifications to Equipment ..................5 About the Rototiller Attachment ..................6 Attaching the Rototiller to the Prime Mover ..............7 Removing the Rototiller from the Prime Mover ..............7 Rototiller Operation ......................8 Equipment Inspection Schedule .................. 9 Daily Inspection ...................... -
Page 4: About This Manual
Terminology Prime Mover: The Rototiller can be attached to many different pieces of equipment; therefore, the term “prime mover” will be used. A prime mover is any equipment, tractor, or skid steer providing power to the attachment. -
Page 5: About The Rototiller Attachment

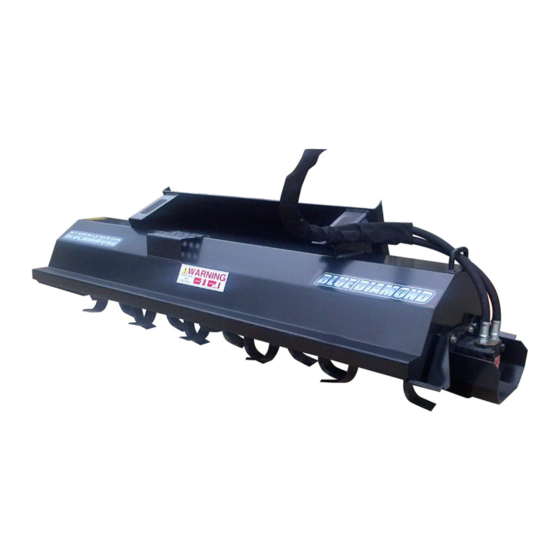

1 year warranty. The Rototiller attachment is vital in the landscaping, nursery and grounds maintenance industries. This unique Rototiller is offered in a variety of sizes for a variety of applications. Figure 1 – Rototiller... -
Page 6: Attaching The Rototiller To The Prime Mover
Rototiller Attaching the Rototiller to the Prime Mover NOTE: Before attempting to attach the Rototiller to the prime mover, verify that all hydraulic couplings are compatible. WARNING: Improper attachment to the prime mover may cause personal injury. CAUTION: All hydraulic connections must be clean and free of debris before making any connection. -
Page 7: Rototiller Operation
Never operate the Rototiller with any guards removed. Disengage the Rototiller and shut off the engine before leaving the cab of your machine. Do not place hands or feet near the Rototiller while the machine is running. -
Page 8: Equipment Inspection Schedule
NOTE: Shut off the prime mover and disengage the Rototiller before performing any maintenance. Daily Inspection Inspect the Rototiller by performing a walk around daily before and after use. Use the following inspection checklist as a guideline. After the Rototiller has been attached, check that all latches or locks are closed. -
Page 9: Inspection Checklist
Are the tines in good condition? Is there any wire or vines wound under the Shroud or drive shaft? Are any cracks visible in Rototiller structure? Are the tines worn, bent, or broken? Has all debris been removed from the motor area? ... -
Page 10: Detailed Parts List
Rototiller Detailed Parts List Figure 2 – ROTOTILLER PARTS Table 1 - Parts List – Rototiller Item Description Part No. Qty. Number Hydraulic motor 229005 229020 Motor to shaft coupler Main frame Bearing guard 229010 bearing Shaft retaining bolt Shaft retainer washer... - Page 11 Rototiller Figure 3 – Rototiller parts Table 2 – Parts list - Rototiller Item Description Part number number 229016-KIT-1 76” =40 68”=36 9, 10, 11 Tine, bolt, & nut 229015 68" = 229025 Main shaft 76" = 229027 Blue Diamond...
-
Page 12: Warning Decal Placement
Rototiller Warning Decal Placement Figure 3 – Rototiller – Rear View Table 2 - Parts List - Warning Decals Part Name Description Part No. Warning Decal High Pressure Fluid Hazard BD-01 Warning Decal Read Owners Manual Before Operating BD-02 Warning Decal... -
Page 13: Manufacturer's Limited Warranty
Blue Diamond Attachments factory or authorized Blue Diamond Attachments dealership or in any way so as in Blue Diamond Attachments judgment, to affect its stability or reliability, nor which has been subject to misuse, negligence or accident beyond the Company recommended machine rated capacity. - Page 14 It can be faxed to 865-246-2007 or emailed to: info@bluediamondattachments.com Name and address _______________________________________________________ Phone #___________________________________ Attachment part #__________________________ Attachment serial #_________________________ Date purchased ____________________________ Name of dealer attachment was purchased from: Comments:_____________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ Blue Diamond Attachments, Knoxville TN 888-376-7027 Blue Diamond...
