  • Page 1 User’s manual Manual de usuario SP-6N Wall-mount bracket for N6P, S6P and G7 Soporte colgado para pared para N6P, S6P y G7 January 2021...

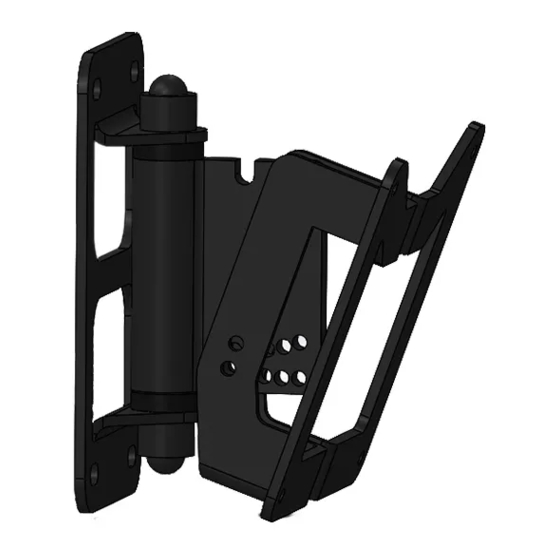

  • Page 2  The SP-6N is an optional accessory for wall mounting (vertical orientation) of the N6P, S6P and G7. ~ El SP-6N es un accesorio opcional para el colgado en pared (vertical) de la N6P, S6P y de la G7. “A”...
  • Page 3 SP-6N Jan 2021  Fix the part “B” of the SP-6N bracket using the four DIN7380 M4x20 screws (“D”), the four 4mm washers (“E”) and the four rubber washers (3x12x2mm) (“F”) that you will find in the kit. ~ Fijar la parte “B” del soporte SP-6N a la caja de madera mediante los cuatro tornillos DIN7380 M4x20 (“D”), las cuatro arandelas de 4mm (“E”) y las cuatro...
  • Page 4  Place the SP-6N bracket (part “A”) in front of the mounting surface, so you can mark the locations of the four mounting holes. ~ Sitúe la parte “A” del soporte SP-6N cerca de la pared donde vaya a colgar la caja y marque la localización de los cuatro puntos de soporte.
  • Page 5 SP-6N Jan 2021  Due to the weight of the enclosure, it will tilt towards the wall. ~ Debido al propio peso de la caja acústica, el recinto se inclinará hacia la pared.  Choose the desired inclination and block the position with the locking screw (“C”) and the self-locking nut.
  • Page 6 SP-6N Jan 2021 0º -5º -10º Amate Audio...
  • Page 7 SP-6N Jan 2021 -15º -20º -5.5º Amate Audio...
  • Page 8 SP-6N Jan 2021 +5.5º +11º +16.5º Amate Audio...
  • Page 9 “A” del soporte SP-6N (aflojar, escoger ángulo y volver a blocar).  Fix the part “B” of the SP-6N bracket using the four DIN7380 M4x20 screws (“D”), the four 4mm washers (“E”) and the four rubber washers (3x12x2mm) (“F”) that you will find in the kit.
  • Page 10  Place the SP-6N bracket (part “A”) in front of the mounting surface, so you can mark the locations of the four mounting holes. ~ Sitúe la parte “A” del soporte SP-6N cerca de la pared donde vaya a colgar la caja y marque la localización de los cuatro puntos de soporte.
  • Page 11 SP-6N Jan 2021  Due to the weight of the enclosure, it will tilt towards the wall. ~ Debido al propio peso de la caja acústica, el recinto se inclinará hacia la pared.  Choose the desired inclination and block the position with the locking screw (“C”) and the self-locking nut.
  • Page 12 SP-6N Jan 2021 -5º -10º -15º Amate Audio...
  • Page 13 SP-6N Jan 2021 -20º -5.5º +5.5º Amate Audio...
  • Page 14 “A” of the SP-6N bracket (unblock, choose angle, block again). ~ Puede dar inclinación en el plano horizontal a través de la tuerca inferior de M8 situada en la parte “A” del soporte SP-6N (aflojar, escoger ángulo y volver a blocar).
