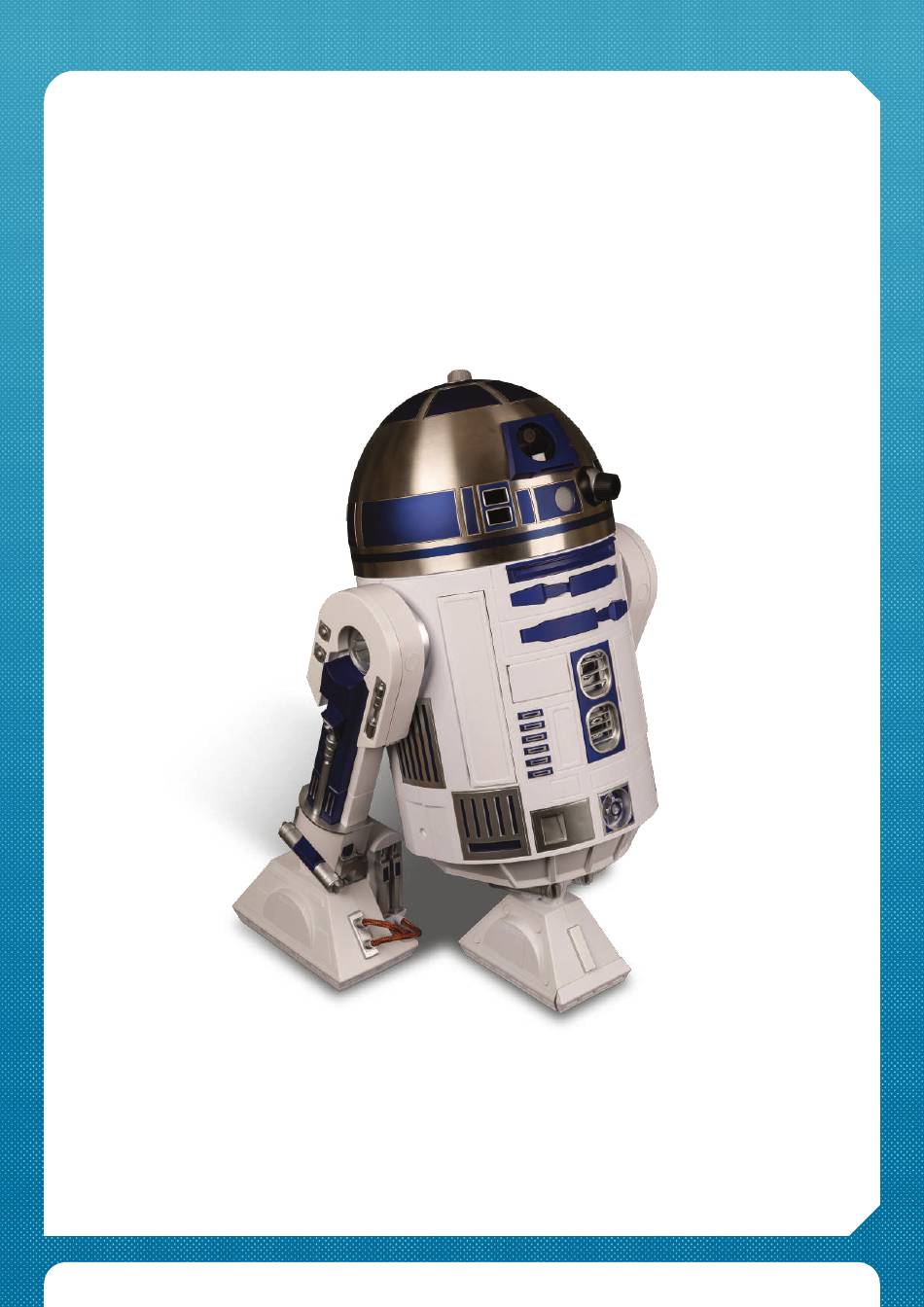

BUILD YOUR OWN
R2-D2
START UP GUIDE
Please follow these instructions carefully, step-by-step, before turning on
and operating your R2-D2 unit.
R2-D2 is powered by six rechargeable batteries (which must be bought separately) that you
prepare using the included tester/charger and USB lead.
© & TM 2021 LUCASFILM LTD
1
Advertisement
Related Manuals for Deagostini R2-D2
Summary of Contents for Deagostini R2-D2
- Page 1 Please follow these instructions carefully, step-by-step, before turning on and operating your R2-D2 unit. R2-D2 is powered by six rechargeable batteries (which must be bought separately) that you prepare using the included tester/charger and USB lead. © & TM 2021 LUCASFILM LTD...
- Page 2 Make sure you buy batteries with a nominal voltage of less well-known brands. They are widely available 3.7V (it is rare to nd ones in R2-D2’s that don`t match online, and in some retail outlets. Popular uses this). But note that their capacity – in milliamp hours include powering e-cigarettes, ashlights, digital (mAh) –...
- Page 3 If you nd your purchased cells do not match, do not use them in R2-D2. Once you have carried out the initial testing/charging process, the battery pack can be recharged as a whole using R2-D2’s external charging socket.
- Page 4 Preparing the batteries Follow these vitally important steps before inserting any batteries into R2-D2’s battery box. Double-check the speci cations of Take the rst Make sure that the tester/charger is not plugged in, your batteries match all of the battery and identify so it will operate as a voltage reader.
- Page 5 Powering up If you have purchased, tested and charged the batteries in accordance with the instructions on the previous pages, you are now ready to install the batteries and power up R2-D2. Take your six prepared batteries and Undo the screws holding the battery …so you can take hold of the...
- Page 6 Simply connect to the mains rear status display will go green or yellow, then to recharge. If R2-D2 is turned on when you connect to R2-D2 will make a noise to indicate his readiness. the mains, his front red/blue status light will change...
- Page 7 Long Press: force shut down To control R2-D2’s advanced operations you’ll need to install his special free app. On Google Play search for “Build Your Own R2-D2”. On the App Store search for “R2-D2 droid control”. App publisher is De Agostini Publishing Italia S.p.A.
