Polyend Medusa Manual Addendum

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Medusa
4.0 Manual Addendum

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Medusa and is the answer not in the manual?

Questions and answers

Related Manuals for Polyend Medusa

Summary of Contents for Polyend Medusa

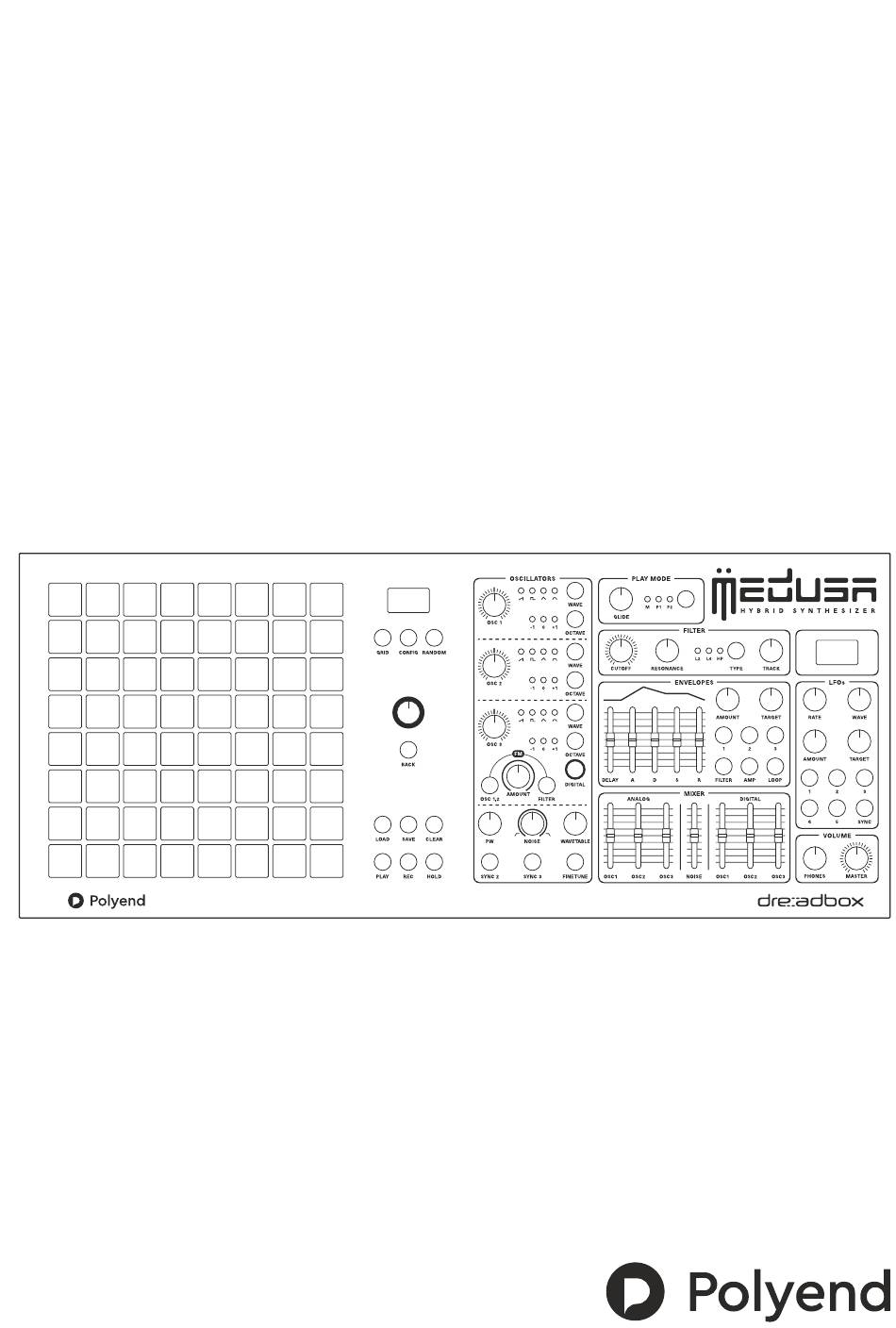

  • Page 1 Medusa 4.0 Manual Addendum...
  • Page 2 To turn it on, press the Play Mode button until all three mode diodes are pulsating. In this mode Medusa delivers 6 digital voices of polyphony. Each voice is a separate mix of Medusa’s digital oscillators. In FM terms, DOSC1, DOSC2, and DOSC3 serve as 3 FM Operators where frequency is specified in ratios between 1/12 and 16.
  • Page 3 LFOs. The analog oscillator levels are controlled in the Mixer, like in other play modes. With six complex digital voices and a fat analog mono voice, Medusa in DFM mode reaches the full potential of her hybrid design.
  • Page 4 Additional sound design tips Medusa supports 5 LFOs that you can use to create very rich motion within digital FM patches, including further frequency modulation. This can be used both as subtle vibrato/tremolo effect, as well as more drastic timbre changes if you think of your LFOs as additional FM operators (which can also affect each other!);...
  • Page 5 Fortunately, most of the time it’s rare to blast full signal from all voices of polyphony at once. So Medusa over-amplifies those voices digitally by 50% which we found gives the best results most of the time.
  • Page 6 Incoming CC messages are now processed in “voice per channel” mode; but note that they are still synth-global, which includes pitch bend and the sustain pedal. Be careful: you can overwhelm Medusa with incoming CC if you send lots of it from all channels at once.
  • Page 7 When a note is pressed when no voices are available in Next voice priority, the least recently used voice is taken over; note that in the First voice priority Medusa will not play another note if all voices are used, this is deliberate;...
  • Page 8 CC64 used to control ENV2 AMOUNT, now it controls the sustain pedal; ENV 2 AMOUNT is now controlled by CC39; CC39 used to control GLIDE, now it controls ENV 2 AMOUNT; GLIDE is now controlled by CC5. Enjoy your refreshed instrument! – Polyend Team...
