- Page 1 INST100 ISSUE 1 – JAN 2019 Lithium-ion portable carry case kits Operating instructions...
- Page 2 This is the latest in portable battery pack technology from Tracer. Please take a moment to read carefully the following instructions to get the best performance from your lithium battery pack. Features • Lightweight – approximately ¼ of the weight of equivalent capacity sealed lead acid batteries.

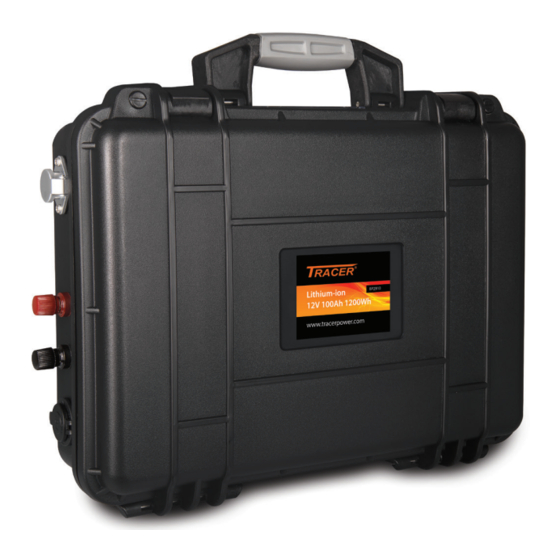

- Page 3 Highlighted Features BP2905 & BP2910 configurations pictured below. Note: BP2915 has the USB and 12V socket • on the same side. Side 01 5V USB output socket x2 (2.1A & 1A). Battery charge meter, clear illuminated digital display. USB and fuel gauge power switch.
- Page 4 Circuit diagram 14awg 20A Output terminal posts BATTERY (Nominal Voltage 12V) 14awg 10A 12V socket Switch 10A fuse 5V USB x2 (2.1A & 1A) Battery meter 14awg Pin 2 Pin 1 CH2F 20A Charge / discharge socket Using as a backup or “float” power supply •...
- Page 5 Code Model Dimensions (mm) Weight Charge time (hrs) Max discharge current (kg) 12V 10A Continuous Peak (for 10ms) BP2905 12V 50Ah BP2910 12V 100Ah BP2915 12V 150Ah BP2915 BP2905 BP2910 Specifications Lightweight, strong and robust Carry Case. IP64 rated to protect from dust ingress, water spray and limited ingress protection.
- Page 6 Capacity (percentage) Important charger information • Only use the charger supplied with the battery pack, or a Tracer approved charger. Visit www.tracerpower.com for information on more chargers. • Do not use this charger for any other purpose. It has been designed to be used with this battery pack only.
- Page 7 Tracer Li-ion battery pack and carry case. • Tracer mains Fast charger. • Tracer PL2M plug to bare ends. 1m length (TR8305). • Terminal post connecting eyelets. Spare and accessories Please visit www.tracerpower.com to see a full list of available...
- Page 8 Tracer Cell Pack Solutions Ltd, 6 West Walpole Street, South Shields, Tyne and Wear, NE33 5BY, UK +44 191 489 9999 info@tracerpower.com www.tracerpower.com...
