Bestway AQUAFEED Owner's Manual

Owner's Manual
Model No. #58338

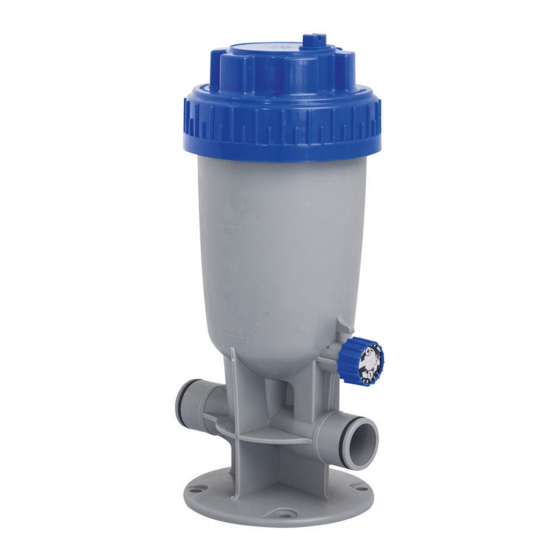

AQUAFEED CHLORINATOR
DANGER!
• NEVER mix chemicals
• Flush the product thoroughly with fresh water before filling with
chemicals
WARNING!
• Turn off the pump and pool valve(s) before opening the product
• Avoid inhaling fumes when opening the product
• Wear eye and skin protection when contacting the product
• KEEP CHILDREN AWAY FROM THIS PRODUCT
The Flowclear AquaFeed Chlorinator uses ONLY small or
TM
large slow dissolving Trichlor (Trichloro-s-Triazinetrione)
tablets/sticks.
WARNING!
No other types of chemicals should ever be used in your
AquaFeed Chlorinator. It holds up to 5 large (7.6cm
Flowclear
TM
(3in.) diameter) tablets or about 1kg (2.2lbs) of small tablets and
has a dial-type control valve to regulate the rate of water passing
through it.

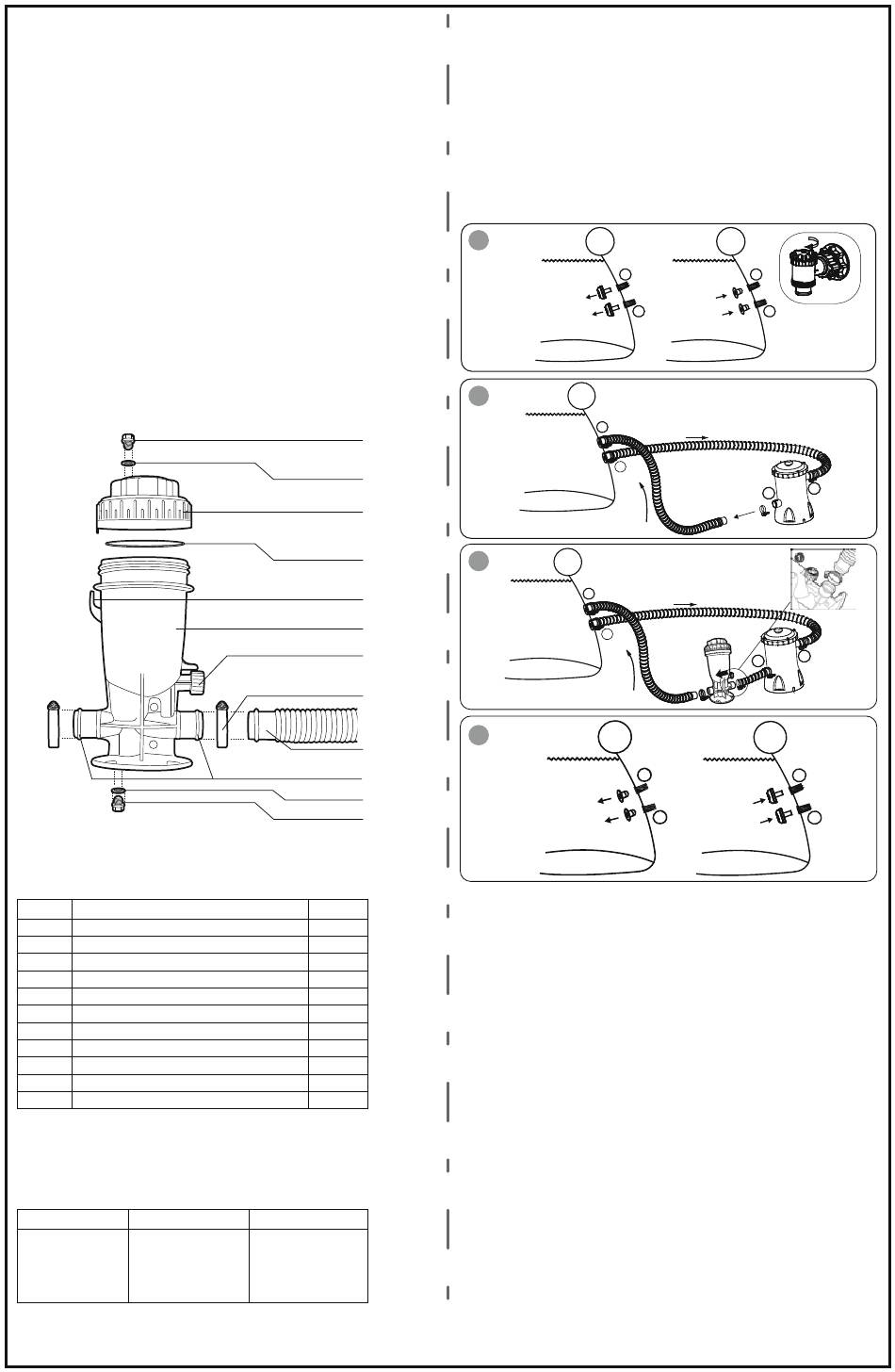

Parts reference overview
Note: Drawings for illustration purpose only. May not reflect
actual product. Not to scale.
NO. Description
1 Release Valve
2 O-Ring, Air Release/Drain
3 Cap
4 O-Ring
5 Cap Locking Tab
6 Main Body
7 Dial Control Valve
8 Hose Clamps
9 Short Connection Hose
10 O-Ring, Inlet/Outlet
11 Drain Plug
Your Flowclear AquaFeed Chlorinator is designed for a
TM
permanent installation in the return line to an above ground pool
that has having a filtration system using 32mm (1¼in) flexible
hose. For other size of hose, please purchase a hose adaptor to
connect the hose.
Hose size Filter Pump
330gal/h
32mm(1¼in) 530gal/h
Available 800gal/h
1000gal/h
1
2
3
4
5
6
7
8
9
10
2
11
Qty
1
2
1
1
1
1
1
2
1
2
1
Sand Filter
530gal/h
1000gal/h
Installation
1. Take out the debris screens inside the pool and plug the inlet
and outlet with stopper plugs. If your pool has control valves,
please stop them (Fig.1)
2. Disconnect the hose of the pump (Fig.2)
3. Connect the Flowclear
on the side of the body) and the pump with the short connector
hose, then connect the Flowclear
secure them with hose clamps. (Fig.3)
4. Open the valves of the water inlet/outlet or unplug the stopper
plugs.(Fig.4)
1
2
A
3
A
B
4
IMPORTANT: Before you start your pump, please follow the
procedures in the pump's owner's manual to release the air inside
the pump by unscrewing the Air Purge Valve.
Always install your Flowclear
heater. If there is no heater, install it after the filter. Damage to the
filter or the heater may result if concentrated chlorine is allowed to
flow through them.
Directions for usage
Before starting up your Flowclear
pool should be properly conditioned and have a chlorine residual
of approximately 1.0 to 1.5 ppm. Follow the dealers and chemical
manufacturer's directions and instructions.
By regulating the valve setting between + (more chlorine) and -
(less chlorine) and the amount of Trichlor tablets you place into
your Flowclear AquaFeed Chlorinator, you can easily adjust the
TM
chlorine feed rate that is necessary to maintain a proper chlorine
residual for your pool.
The chlorine demanded for pools varies based on use,
temperature, sunlight, size and other parameters. Initially, you will
have to experiment to determine the proper amount of chlorine
1
AquaFeed (check the"FLOW" mark
TM
AquaFeed to the pool,
TM
A A
B B
B
A
A
A
B
AquaFeed Chlorinator after the
TM
AquaFeed Chlorinator, your
TM
B
B
A
B
