Summary of Contents for Sunna Design Sol UP4
- Page 1 USER MANUAL solarlighting.com © Sunna Design, Inc. 2020 – Sunna Design reserves the right UP4, v5, SL4280 - Z10077-00_A to modify the information in this document. USER MANUAL...

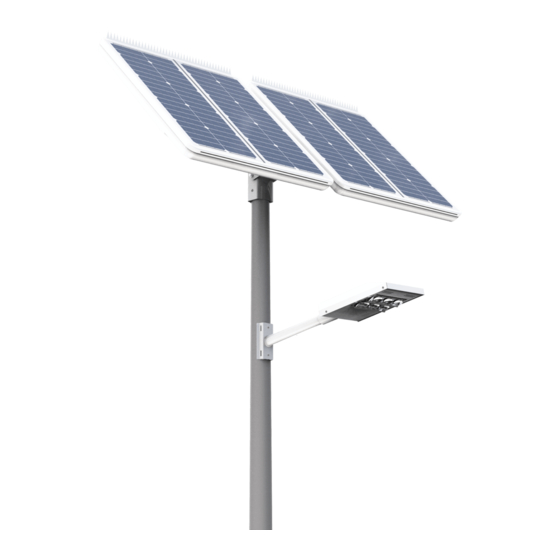

- Page 2 SOL thank you for choosing UP4 Solar Street Light and hope it will give you satisfaction.This manual will familiarize you with the features and operation standards of SOL’s UP4 Solar Street Light. Non-contractual visuals, lanterns may differ depending on chosen options. © 2020, Sunna Design, Inc.
- Page 3 Do not open the product without formal written authorization from Sunna Design, Inc., as this will invalidate the warranty. Changes or modifications to Sunna Design, Inc. equipment not expressly approved by Sunna Design, Inc. could void the user’s authority to operate the equipment as well as its warranty.
-
Page 4: Parts List
For safety reasons, please ensure that every element is correctly attached and tightened on the product. Required tools (non fournis / not included) 0.1 in. Allen key 0.15 in. Allen key 0.5 in. socket wrench Bracket not included © 2020, Sunna Design, Inc. - Page 5 • Shading • Light Pollution • Angle Point solar panels towards the South in the Northern hemisphere Point solar panels towards the North in the Southern hemisphere © 2020, Sunna Design, Inc.
-
Page 6: Installation Steps
UP4, v5, SL4280 USER MANUAL Installation steps Wheel clamp installation on the sleeper Spigot installation © 2020, Sunna Design, Inc. - Page 7 UP4, v5, SL4280 USER MANUAL Cable routing on the bracket and unit Fixing the bracket on the unit © 2020, Sunna Design, Inc.
- Page 8 UP4, v5, SL4280 USER MANUAL Installation on the pole © 2020, Sunna Design, Inc.
- Page 9 UP4, v5, SL4280 USER MANUAL Bracket and lanterns installation ø 1.26 Crosse non fournie Bracket not included Bracket not included Non-contractual visuals, lanterns may differ depending on chosen options. © 2020, Sunna Design, Inc.
-
Page 10: Start-Up Steps
UP4, v5, SL4280 USER MANUAL Start-up steps Start-up Make sure to switch ON on each module. Initialisation LED status © 2020, Sunna Design, Inc. - Page 11 The product is then operational. NB: This initialization process may last up to 3 days, depending on solar radiation. If not, please contact our customer service. 100% Diagram 1: Lighting profile during first night NIGHT © 2020, Sunna Design, Inc.
-
Page 12: Maintenance
• dirt and dust • snow • leaves • debris • shade that may have developed after installation due to adjacent plant growth © 2020, Sunna Design, Inc. - Page 13 Technical characteristics: Detectable difference in temperature between the target and background is more than 4°C (7,2°F) Movement speed: 2,6 to 3.2 fps Detection object = human body (minimal size is 27,5 in. x 9,8 in.) © 2020, Sunna Design, Inc.
-
Page 14: Troubleshooting
MODULE mode (energy to work all night (no IS LOW OR saving) blackout) DECREASES AT THE BEGINNING OF THE NIGHT * FLASH : default flashes every 3 seconds; if sleep mode, flashes every minute. © 2020, Sunna Design, Inc. - Page 15 UP4, v5, SL4280 USER MANUAL © 2020, Sunna Design, Inc.
- Page 16 ADDRESS : Sunna Design, Inc. 990 Biscayne Boulevard, Office 701 Miami, FL 33132 – USA sales@solarlighting.com toll free: (800) 959-1329 solarlighting.com © Sunna Design, Inc. 2020 – Sunna Design reserves the right Z10077-00_A to modify the information in this document.
