HEX HS31 Maintenance Instructions

VALVE
Packing Disassembly
1) Remove the handle (1) by tapping through
actuator (6) using hammer.
2) Remove the spacer rings (2) from inside the
actuator (6) exposing the top of the stem (15).
3) Thread actuator (6) into yoke (8) by turning
counterclockwise until the roll pin (3) and stem
retainer (4) are visible in the actuator (6) handle
hole.
4) Remove roll pin (3) from stem (15) and remove
stem retainer (4). NOTE offset of pin hole in stem
retainer (4). Stem retainer (4) must be
reassembled in same orientation. See figure 1.
Hex Valve
Division of Richards Industries
3170 Wasson Road • Cincinnati, Ohio 45209
Maintenance Instructions
HS31 SAMPLE AND DRAIN VALVE

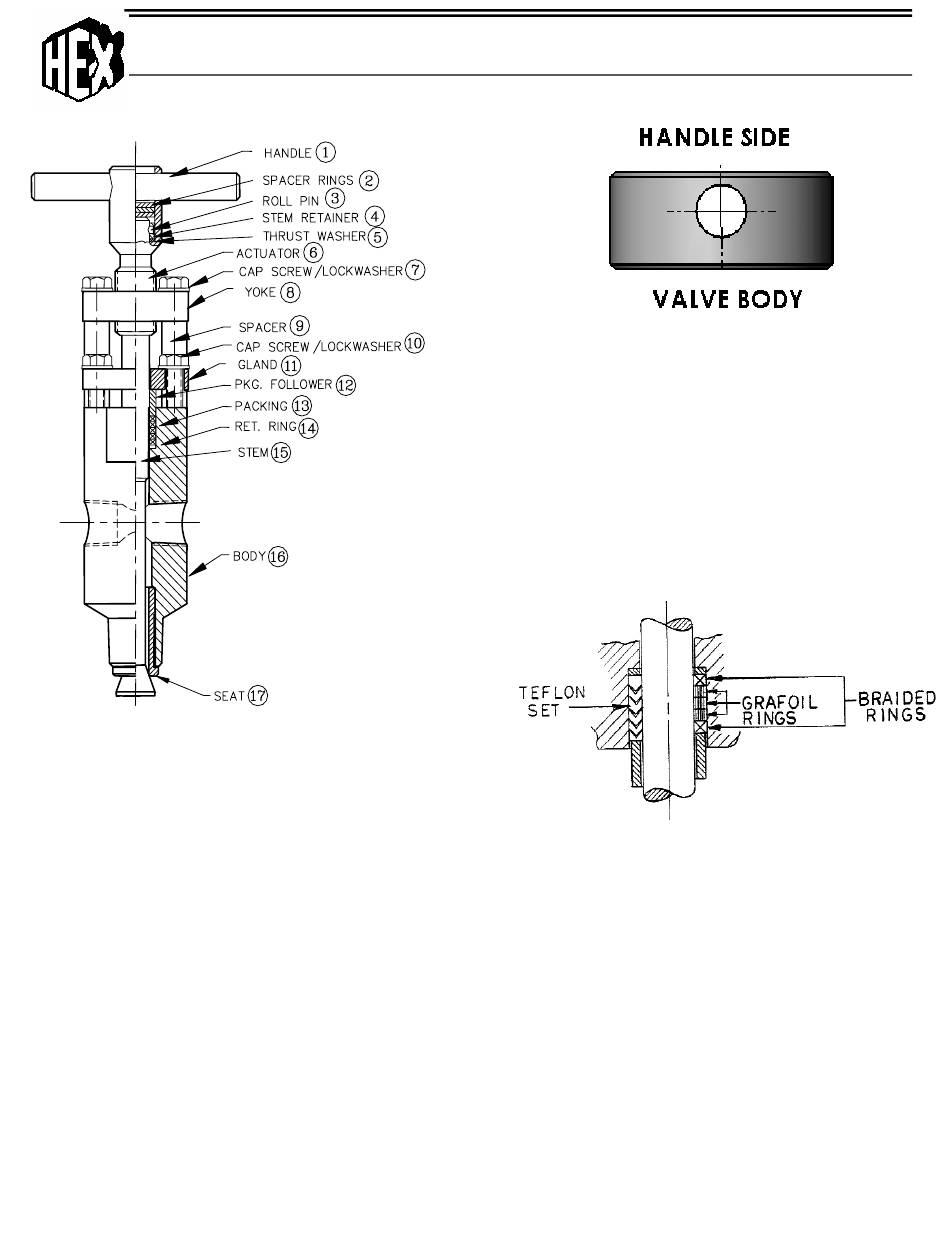

Figure 1. Stem Retainer (4)
5) Remove actuator (6) from stem (15) and yoke
(8) by turning clockwise. Thrust washer (5) can
remain in actuator (6).
6) Remove cap screws (7) and (10) to allow
removal of yoke (8), spacers (9) and gland (11).
7) Remove stem (15) from body (16), then packing
follower (12), packing rings (13), and retaining
ring (14), noting the order each ring is placed in
packing chamber to insure new packing is
installed in same order. See figure 2.
Figure 2. Packing Arrangement (13)
Packing Reassembly
1) Inspect stem (15) and packing chamber bore.
Replace stem (15) if damaged or shows evidence
of corrosion in the area of the packing. Make sure
stem (15) and bore are clean and free of packing
or debris. Use solvent only to clean the stem (15)
and packing chamber bore.
2) Lubricate the stem (15) in the packing area with an
Anti-Seize compound such as "THRED-GARD".
3) Install the stem (15) in the body (16).
