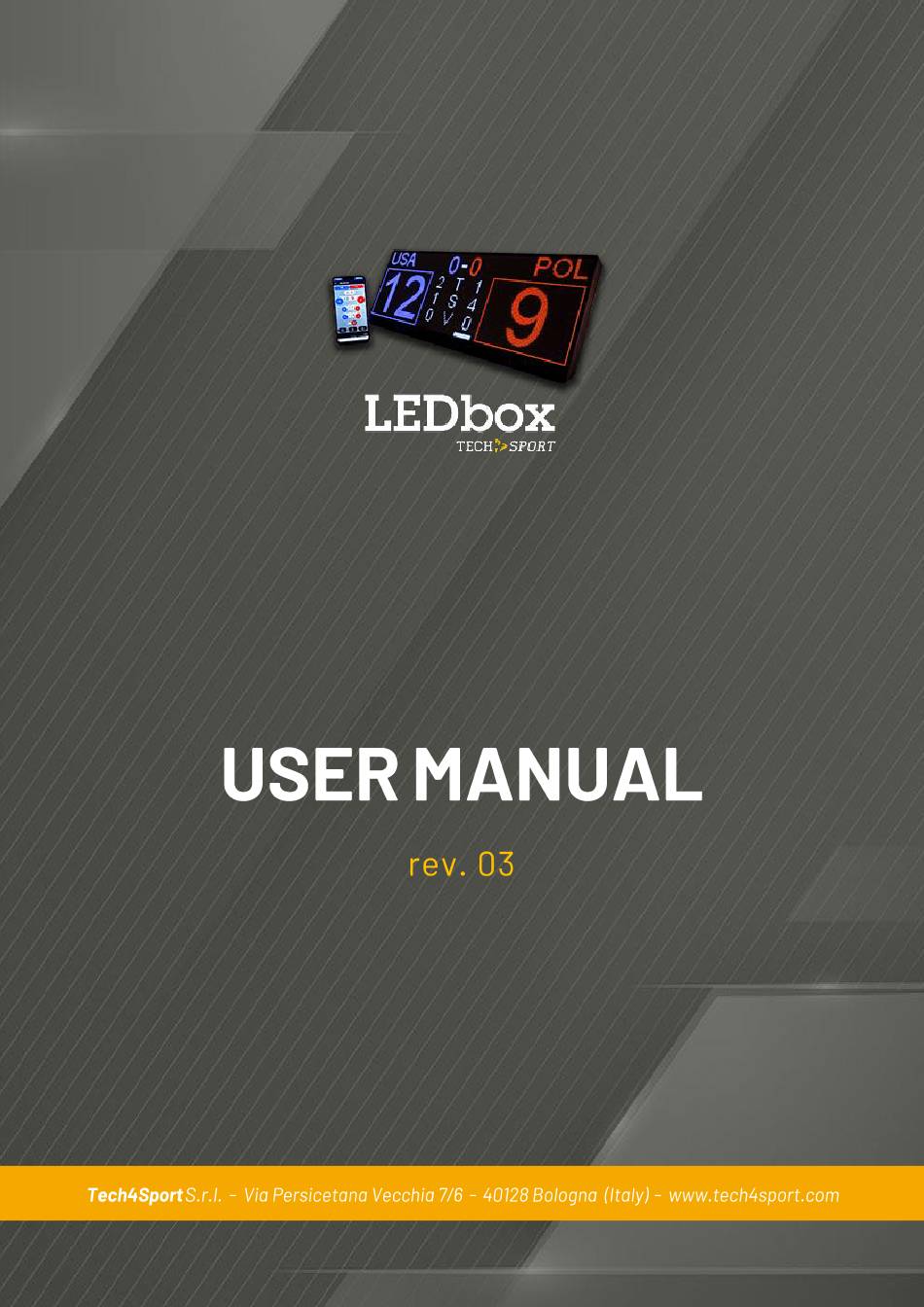

Summary of Contents for Tech4Sport LEDbox
- Page 2 COPYRIGHT & TRADEMARKS connected; See the dealer or an experienced Specifications are subject to change without notice. Tech4sport is a registered radio/TV technician for help. trademark of Tech4sport S.r.l. All other This device complies with Part 15 of the...
-
Page 3: Product Overview
Instead, they are a source of promotion and income. LEDbox is the new full colour LED table display (60x20cm), designed and created to display the score of the match of any sport, support the coach’s work during practice and showcase texts, logos and videos of the sponsors during downtime. -
Page 4: Back Panel
BACK PANEL Fig. 2 1. VESA support 50x50. 2. RJ45 connector (LAN). 3. USB Host connector/Audio Jack. 4. Micro USB connector. 5. Power supply connector (24V DC 10A). 6. Switch. 7. Fan. 8. Buzzer. -
Page 5: Switching On And Off The Device
LEDbox. OFF THE DEVICE BLUETOOTH CONNECTION SWITCHING ON To enable the LEDbox for a Bluetooth connection to other devices, carry out the 1. Connect the 24V DC 10A power pairing phase within one minute from supply connector to the LEDbox. - Page 6 (Indoor and Beach), in the same way as the LiteScore DataProject. E-SCORESHEET VOLLEYBALL 1. Connect the computer to the LEDbox using the USB / micro USB cable. 2. Start the e-Scoresheet Volleyball software and click on the Options button.
-
Page 7: Bluetooth Connection
CONNECTION WITH LEDBOX When you launch the app for the first time, enter your username, select a sport and The LEDbox App can connect to the choose a picture to display on the LEDbox LEDbox via: while waiting. Bluetooth connection. -
Page 8: Wi-Fi Direct Connection
Wi-Fi connection or LAN network cable). 2. Start the app from your smartphone/tablet and tap 3. Wait LEDbox found in the network: a confirmation message will display Fig. 7 and the serial number of the LEDbox connected will be shown on the right ... - Page 9 IP address of the LEDbox will be show. CONFIGURATION OF WI-FI DIRECT OR WI-FI CLIENT MODEL The LEDbox can be configured in two connection modes: Wi-Fi Direct: the LEDbox creates a Wi-Fi network with the SSID and password indicated on the back label of the device.
- Page 10 Exercises: sends a sequence of exercises that are played independently on the LEDbox. Free text: sends a text to the LEDbox that Fig. 9 will be played with a vertical or horizontal 4. Enter the name of the playlist.
- Page 11 LEDbox will be shown. Fig. 11 It is also possible to download new types Fig. 10 of score display for each available sport from the online catalogue. Otherwise, if the “Countdown” field is set 1.
- Page 12 2. Tap the button (at the top left corner).Cliccare sul tasto (in alto a destra). Fig. 12 5. Wait for the interface to be installed and present in the list of those available in the app. Fig. 14 3. Enter the name of the exercises sequence 4.
- Page 13 Use the button to confirm the changes PLAY to made, or use the PLAY button start playback on the LEDbox. UTILIZZO DI UNA SEQUENZA DI ESERCIZI GIÀ PRONTA Fig. 16 6. Repeat step 4 to add more exercises to the list.
- Page 14 CREATION OF A NEW CUSTOM TEXT By choosing “CUSTOM TEXT” from the app’s main screen, fixed or scrolling texts can be played on the LEDbox: 1. Tap the button (at the top left corner). Fig. 20 2. Enter the name of the free text.
- Page 15 Stop the execution of all processes (the button STOP ALL at the bottom). Fig. 21 Use the button to confirm the changes, PLAY to send and or use the button start the free text on the LEDbox. Fig. 22...
- Page 16 This user manual is for informational purposes only and may be changed without notice. The current version is available on the internet at www.tech4sport.com in the corresponding product page. Furthermore, Tech4Sport s.r.l. does not assume responsibility of any kind for errors or inaccuracies that may be found in this user manual.
