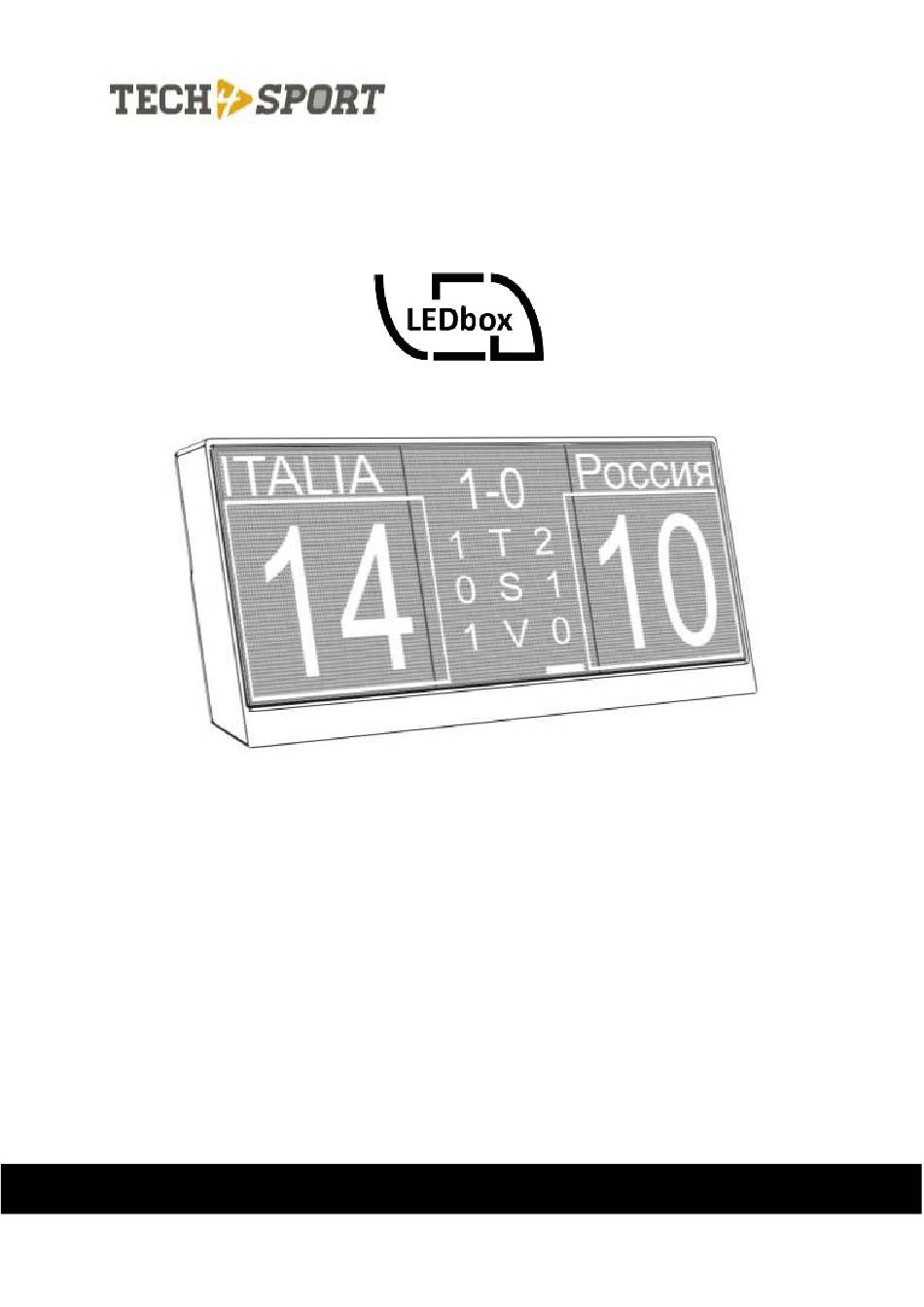

  • Page 1 USER MANUAL rev. 02 Tech4Sport s.r.l. - Via Guelfa, 9 - 40128 Bologna - Italy - www.tech4sport.com...
  • Page 2 COPYRIGHT & TRADEMARKS connected;  consult the dealer or an Specifications are subject to change without notice. Tech4sport is a registered experienced radio/TV technician trademark of Tech4sport s.r.l. All other for help. brands product...

  • Page 3: Product Overview

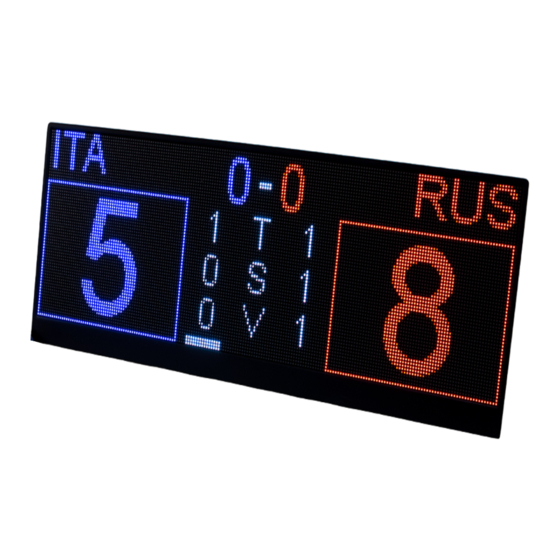

    Instead, they are a source of promotion and income. LEDbox is the new full colour LED table display (60x20cm), designed and created to display the score of the match of any sport, support the coach’s work during practice and showcase texts, logos and videos of the sponsors during downtime.

  • Page 4: Back Panel

    Back panel Fig. 2 1. VESA support 50x50. 2. RJ45 connector (LAN). 3. USB Host connector/Audio Jack. 4. Micro USB connector. 5. Power supply connector (24V DC 10A). 6. Switch. 7. Fan. 8. Buzzer.

  • Page 5: Switching On And Off The Device

    3. Press the switch on the back and move it to the ON position (the switch BLUETOOTH CONNECTION will light up). To enable the LEDbox for a Bluetooth 4. Wait about 30 seconds before connection to other devices, carry out the starting the system.
  • Page 6 (Indoor and Beach), in the same way as the LiteScore DataProject. SCORESHEET VOLLEYBALL 1. Connect the computer to the LEDbox using the USB / micro USB cable. 2. Start the e-Scoresheet Volleyball software and click on the Options button.
  • Page 7 LEDbox can be controlled using the LEDbox (192 x 64 pixels). mobile app “LEDbox App”, you can freely download from Google Play Store or Apple iTunes Store.  If you don’t select any image, the default one will be used.
  • Page 8 1. Start the app from your smartphone/tablet and tap (at the bottom of the screen). 2. Select “Bluetooth”. 3. Select the identifier corresponding to the LEDbox from the list of devices paired to your device. fig. 6 BLUETOOTH CONNECTION Before carrying...
  • Page 9 LAN network cable). 2. Start the app from your smartphone/tablet and tap 3. Wait for the LEDbox to be found in the network: a confirmation message will be displayed and the serial number of the LEDbox connected will be shown on the right side of the app bar.
  • Page 10 4. In the “WiFi Client” mode, enter the Free text: sends a text to the LEDbox that SSID and the password of the will be played with a vertical or horizontal network to which the LEDbox should scrolling animation. connect.
  • Page 11 10. Select the type of score to be played to send the playlist (files sent only the on the LEDbox. first time) and start it on the LEDbox.  During this phase the specific It is also possible to set a countdown on...
  • Page 12 1. Tap the “MATCHSCORE” button on the app’s main screen. 2. Tap the button (at the top right corner). 3. Wait for the interfaces available online to load and select one for installation. 4. Tap the “Download and install” button. Fig.
  • Page 13 Fig. 14 Fig. 15 3. Enter the name of the exercises By pressing “Edit” you can define: sequence.  the image of the exercise. 4. In the detail screen of the exercises  Round: Number of times the sequence, tap the button to add a exercise must be played.
  • Page 14 LEDbox. CREATION OF A NEW CUSTOM TEXT By choosing “CUSTOM TEXT” from the app’s main screen, fixed or scrolling texts can be played on the LEDbox: 1. Tap the button (at the top left corner). Fig. 16 6.
  • Page 15 Use the button to confirm the changes, PLAY to send and or use the button start the free text on the LEDbox. LEDBOX TASK MANAGER All the processes that are running on the LEDbox (Playlists, Exercises, Free Text) are displayed in the app task manager (the icon on the bottom left corner of the app).
  • Page 16 This user manual is for informational purposes only and may be changed without notice. The current version is available on the internet at www.tech4sport.com in the corresponding product page. Furthermore, Tech4Sport s.r.l. does not assume responsibility of any kind for errors or inaccuracies that may be found in this user manual.
