ASROCK iBOX 1100 Series User Manual

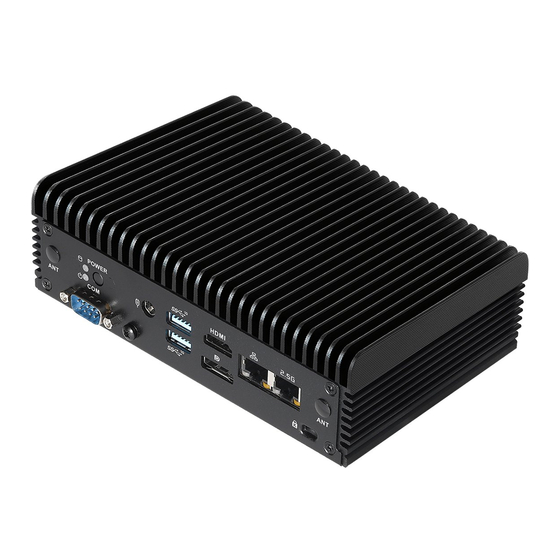

Fanless embedded box pc
Hide thumbs Also See for iBOX 1100 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
iBOX 1100 Series
User Manual
Version 1.0
Published March 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iBOX 1100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASROCK iBOX 1100 Series

Summary of Contents for ASROCK iBOX 1100 Series

  • Page 1 1100 Series User Manual Version 1.0 Published March 2021...
  • Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at www.ASRock.com; or you may contact your dealer for further information.

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Product Specifications Block Diagram Chapter 2 Product Overview Front View Rear View Inside View Chapter 3 Hardware Installation How to Remove the Bottom Case How to Install the WiFi Module How to Remove the M.2 SSD and the Bracket How to Install the M.2 SSD How to Install the 2.5-inch Hard Drive How to Install the Memory Modules (DDR4)
  • Page 5 Chapter 5 UEFI Setup Utility Introduction Main Screen Advanced Screen Hardware Health Event Monitoring Screen Security Screen Boot Screen Exit Screen Chapter 6 Software Support Install Operating System Support CD Information...

  • Page 7: Chapter 1 Introduction

    1100 Series Chapter 1 Introduction Because the hardware specifications might be updated, the content of this documentation will be subject to change without notice. 1.1 Package Contents • iBOX-1100 Series (pre-installed motherboard) • 1 x SATA 1 to 1 Power Cable • 4 x HDD Screws (M3x4)

  • Page 8: Product Specifications

    1.2 Product Specifications iBOX 1100 Series Barebone iBOX-1185G7E (I7-1185G7E, QC, Max Speed up to 4.4GHz) iBOX-1145G7E (I5-1145G7E, QC, Max Speed up to 4.1GHz) iBOX-1115G4E (I3-1115G4E, DC, Max Speed up to 3.9GHz) iBOX-6305E (Celeron 6305E, DC, 1.8GHz) Chipset Memory Supports Dual Channel DDR4 3200 MHz, 2 x 260-pin SO-DIMM, Max.
  • Page 9 Volume 0.6L (Liters) Operating 0°C~40°C Temperature * For iBOX 1100 Series, it is not recommended to install 2.5” HDD. If you install the 2.5” HDD, please keep the iBOX 1100 Series in a vertical position to ensure better cooling performance.

  • Page 10: Block Diagram

    1.3 Block Diagram...

  • Page 11: Chapter 2 Product Overview

    1100 Series Chapter 2 Product Overview This chapter provides diagrams showing the location of important components of the iBOX 1100 Series. 2.1 Front View Description Audio(Mic-in, Line-out) 2 x USB 3.2 Gen2 Ports (Type C, supports DP1.2a display output) USB 3.2 Gen2 (Type A)

  • Page 12: Rear View

    2.2 Rear View Description COM Port Power Button 2 x USB 3.2 Gen2 (Type A) HDMI RJ-45 (2.5G LAN)** DC-IN DisplayPort RJ-45 (1G LAN)* * There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port...
  • Page 13 1100 Series * There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port Activity / Link LED Speed LED Status Description Status Description...

  • Page 14: Inside View

    2.3 Inside View Description SO-DIMM Slot SATA 3.0 Connector Mini PCIe Slot M.2 Slot Hard disk drive tray (compatible with 2.5" SATA HDD/SSD) SO-DIMM memory, hard drive and mSATA SSD are not included with this system.

  • Page 15: Chapter 3 Hardware Installation

    1100 Series Chapter 3 Hardware Installation This chapter helps you install or remove important components. 3.1 How to Remove the Bottom Case 1. Remove the four screws on the bottom case. 2. Then lift up and remove the bottom panel.

  • Page 16: How To Install The Wifi Module

    3.2 How to Install the WiFi Module 1. Locate the WiFi Module slot on the motherboard. 2. Carefully insert the WiFi Module into the slot. 3. Tighten the screw to secure the WiFi Module to the motherboard.

  • Page 17: How To Remove The M.2 Ssd And The Bracket

    1100 Series 3.3 How to Remove the M.2 SSD and the Bracket 1. Release the screw and carefully remove the M.2 SSD. 2. Release the screw and remove the bracket from the motherboard.

  • Page 18: How To Install The M.2 Ssd

    3.4 How to Install the M.2 SSD 1. Locate the M.2 slot on the motherboard. 2. Carefully insert the M.2 SSD into the slot. 3. Tighten the screw to secure the M.2 SSD to the motherboard.

  • Page 19: How To Install The 2.5-Inch Hard Drive

    1100 Series 3.5 How to Install the 2.5-inch Hard Drive 1. Remove the four screws on the bottom case. Then lift up and remove the bottom panel. 2. Attach the HDD cage to the bottom panel and secure it using the four screws. Then...
  • Page 20 3. Connect the SATA Data and Power Cable to the HDD. 4. Connect the SATA Cable to the connector.
  • Page 21 1100 Series 5. Then reinstall the bottom panel.

  • Page 22: How To Install The Memory Modules (Ddr4)

    3.6 How to Install the Memory Modules (DDR4) 1. The iBOX 1100 Series requires DDR4 SO-DIMM. 2. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 SO-DIMM pairs. The SO-DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

  • Page 23: Chapter 4 Motherboard

    1100 Series Chapter 4 Motherboard 4.1 Motherboard Layout 1 : M.2 Key-M Socket (M2_M1) 2 : M.2 Key-E Socket (M2_E1) 3 : USB2.0 Connector (USB2_7_8) 4 : COM Port Header (RS232) 5 : Clear CMOS Header (CLRCMOS1) 6 : SATA3 Port (SATA3_0)

  • Page 24: Motherboard Specifications

    4.2 Motherboard Specifications Form Dimensions NUC 4.09" x 4.02" (104 x 102mm) Factor ® Intel 11th Gen (Tiger Lake-UP3) Core™ Processors Processor I7-1185G7E QC, Max Speed up to 4.4GHz System Chipset BIOS AMI SPI 256 Mbit ® ® Controller Intel Iris Graphics HDMI 2.0a...
  • Page 25 1100 Series 2 x USB 2.0 (1 x 2.00 pitch header) Internal 1 x COM(RS-232) Connector N/A, support onboard TPM 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4 x4 and SATA3 for SSD Storage *M.2 Key M 2280(Supported by bracket) SATA 1 x SATA3.0 (6.0 Gb/s)

  • Page 26: Jumpers Setup

    4.3 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...

  • Page 27: Onboard Headers And Connectors

    1100 Series 4.4 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard!
  • Page 28 PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys- tem is in S1 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
  • Page 29 1100 Series Back Side: Power Button Header (PWR_BTN1) Fan Connector +12V (FAN1) FAN_SPEED FAN_SPEED_CONTROL Battery Connector (BAT1) ESPI Connector (ESPI1)

  • Page 30: Installation Of Rom Socket

    4.5 Installation of ROM Socket * Do not apply force to the actuator cover after ic inserted. * Do not apply force to actuator cover when it is opening over 120 degree, Otherwise, the actuator cover may be broken. * The yellow dot (Pin1) on the ROM must be installed at pin1 position of the socket.

  • Page 31: Expansion Slots (M.2 Slots)

    1100 Series 4.6 Expansion Slots (M.2 Slots) There are 2 M.2 slots on this motherboard. M.2 for SSD: 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4 x4 and SATA3 for SSD. * M.2 Key M 2280(Supported by bracket) M.2 for Wi-Fi: 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless.

  • Page 32: Chapter 5 Uefi Setup Utility

    Chapter 5 UEFI Setup Utility 5.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>...

  • Page 33: Main Screen

    1100 Series 5.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Enter>...

  • Page 34: Advanced Screen

    5.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configu- ration, Chipset Configuration, Storage Configuration, Super IO Configuration, ACPI Configuration, USB Configuration, Trusted Computing, MCTP Configuration and Se- rial Port Console Redirection. Setting wrong values in this section may cause the system to malfunction.
  • Page 35 1100 Series 5.3.1 CPU Configuration Cool ‘n‘ Quiet Use this item to enable or disable AMD’s Cool ‘n’ QuietTM technology. The default value is [Enabled]. Configuration options: [Enabled] and [Dis- ® abled]. If you install Windows OS and want to enable this function, please set this item to [Enabled].
  • Page 36 5.3.2 Chipset Configuration Share Memory Configure the size of memory that is allocated to the integrated graphics processor when the system boots up. Onboard HD Audio Select [Enabled] or [Disabled] for the onboard HD Audio feature. Verb Table Select The default value is [Combo Jack]. Onboard LAN 1 This allows you to enable or disable the Onboard LAN 1.
  • Page 37 1100 Series 5.3.3 Storage Configuration SATA Controller(s) Use this item to enable or disable the SATA Controller feature. SATA Mode Selection Use this to select SATA mode. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages.
  • Page 38 5.3.4 Super IO Configuration COM1 Configuration Use this to set parameters of COM1. Type Select Use this to select COM1 port type: [RS232], [RS422] or [RS485]. WDT Timeout Reset Use this to set the Watch Dog Timer.
  • Page 39 1100 Series 5.3.5 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. Onboard LAN Power On Use this item to enable or disable onboard LAN to turn on the system from the power-soft-off mode.
  • Page 40 5.3.6 USB Configuration Legacy USB Support Use this option to select legacy support for USB devices. There are two configuration options: [Enabled] and [UEFI Setup Only]. The default value is [Enabled]. Please refer to below descriptions for the details of these two options: [Enabled] - Enables support for legacy USB.
  • Page 41 1100 Series 5.3.7 Trusted Computing Security Device Support Enable or disable BIOS support for security device.

  • Page 42: Hardware Health Event Monitoring Screen

    5.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU_FAN1 Setting This allows you to set CPU_FAN1’s speed.

  • Page 43: Security Screen

    1100 Series 5.5 Security Screen In this section, you may set, change or clear the supervisor/user password for the system. Supervisor Password Set or change the password for the administrator account. Only the ad- ministrator has authority to change the settings in the UEFI Setup Utility.

  • Page 44: Boot Screen

    5.6 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority. Boot From Onboard LAN Use this item to enable or disable the Boot From Onboard LAN feature. Setup Prompt Timeout This shows the number of seconds to wait for setup activation key.
  • Page 45 1100 Series CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test. If you are using Windows 8.1 64-bit and all of your devices support UEFI, you may also disable CSM for faster boot speed.

  • Page 46: Exit Screen

    5.7 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”...

  • Page 47: Chapter 6 Software Support

    Click on a specific item then follow the installation wizard to install it. 6.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may con-...

This manual is also suitable for:

Ibox-1185g7eIbox-1115g4eIbox-6305eIbox-1145g7e
