Dalsa X64 Xcelera-CL PX4 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

DALSA • 7075 Place Robert-Joncas, Suite 142 • St-Laurent, Quebec, H4M 2Z2 • Canada
http://www.imaging.com
™

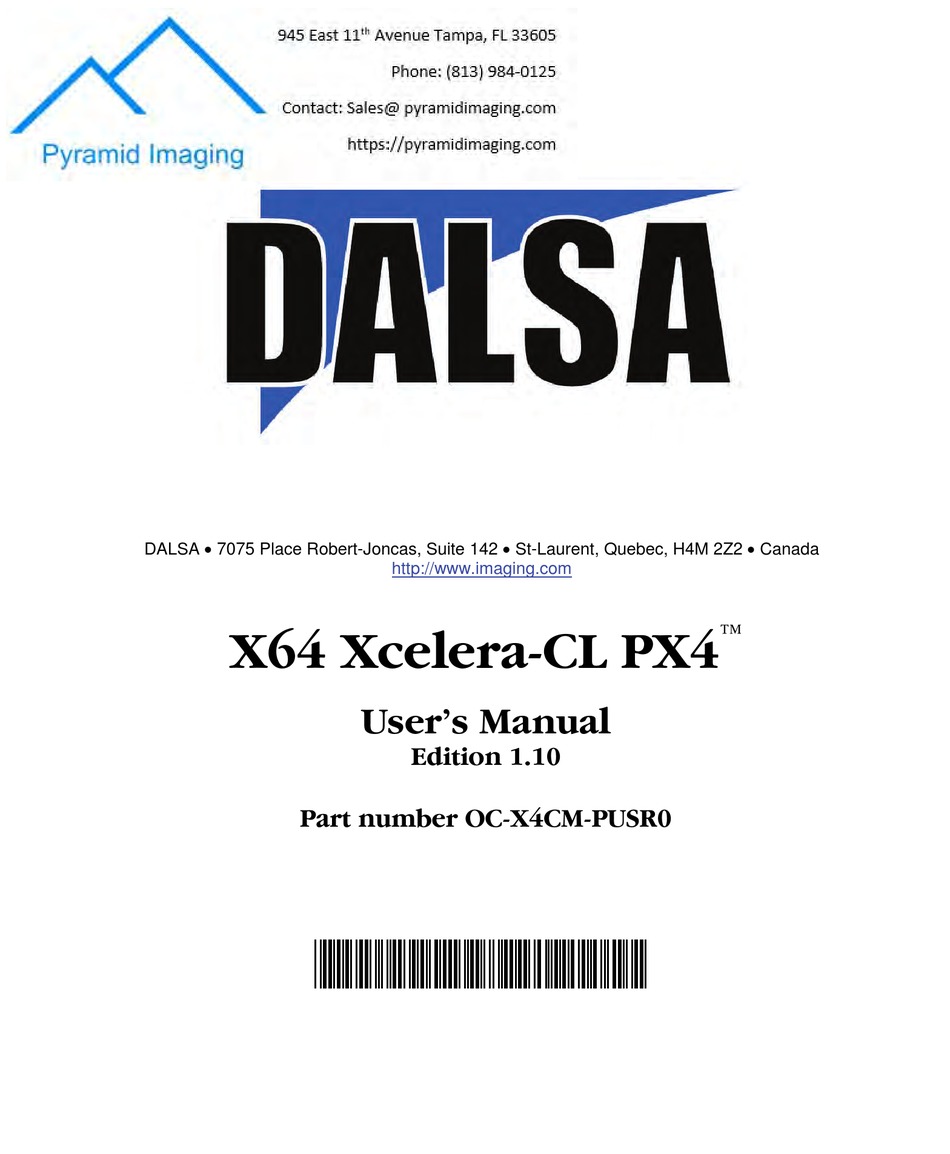

X64 Xcelera-CL PX4
User's Manual
Edition 1.10
Part number OC-X4CM-PUSR0
*OC-X4CM-PUSR0*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X64 Xcelera-CL PX4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dalsa X64 Xcelera-CL PX4

Summary of Contents for Dalsa X64 Xcelera-CL PX4

  • Page 1 DALSA • 7075 Place Robert-Joncas, Suite 142 • St-Laurent, Quebec, H4M 2Z2 • Canada http://www.imaging.com ™ X64 Xcelera-CL PX4 User's Manual Edition 1.10 Part number OC-X4CM-PUSR0 *OC-X4CM-PUSR0*...
  • Page 2 Use of the products described herein is understood to be at the user’s risk. DALSA Corp. assumes no liability whatsoever for the use of the products detailed in this document and reserves the right to make changes in specifications at any time and without notice.

  • Page 3: Table Of Contents

    Contents X64 XCELERA-CL PX4 OVERVIEW ________________________________________ 5 ....................5 RODUCT UMBERS X64 X -CL PX4 F ............7 BOUT THE CELERA RAME RABBER Series Key Features..................... 7 User Programmable Configurations ................7 ACUPlus: Acquisition Control Unit ................8 DTE: Intelligent Data Transfer Engine............... 8 Advanced Controls Overview ..................
  • Page 4 Windows Device Manager..................27 Memory Requirements with Area Scan Acquisitions..........27 Symptoms: CamExpert Detects no Boards..............28 Symptoms: X64 Xcelera-CL PX4 Does Not Grab ............. 28 Symptoms: Card grabs black ..................29 Symptoms: Card acquisition bandwidth is less than expected ........29 CAMEXPERT QUICK START _____________________________________________ 31 ..............
  • Page 5 EMI C ....................... 81 ERTIFICATIONS ................82 ONNECTOR AND WITCH OCATIONS X64 Xcelera-CL PX4 Board Layout Drawing ............82 Connector Description List ..................82 ..............83 ONNECTOR AND WITCH PECIFICATIONS X64 Xcelera-CL PX4 End Bracket Detail ..............83 Configuration Micro-switches................... 84 Status LEDs Functional Description .................
  • Page 6 Using Sapera LT General I/O Demo............... 111 Sapera LT General I/O Demo Code Samples............113 DALSA CONTACT INFORMATION _______________________________________ 117 ...................... 117 ALES NFORMATION ...................... 118 ECHNICAL UPPORT GLOSSARY OF TERMS _________________________________________________ 119 INDEX _________________________________________________________________ 123 iv • Contents X64 Xcelera-CL PX4 User's Manual...

  • Page 7: X64 Xcelera-Cl Px4 Overview

    X64 Xcelera-CL PX4 Board Item Product Number All models have 85MHz Pixel Clock X64 Xcelera-CL PX4 Full with 128 MB of memory OR-X4C0-XPF00 X64 Xcelera-CL PX4 Dual with 128 MB of memory OR-X4C0-XPD00 X-I/O Module (optional): provides an additional 8 input & 8 output general I/Os OC-IO01-STD00 (see "Appendix: X-I/O Module...
  • Page 8 Item Product Number (optional) X64 Xcelera-CL PX4 can be shipped with an External Signals Connector Bracket Assembly, either with a DB37 or DB25 connector (see the two product numbers below). Either cable, if required, should be specified at the time of order.

  • Page 9: About The X64 Xcelera-Cl Px4 Frame Grabber

    See “Technical Specifications” on page 79 for detailed information. User Programmable Configurations Use the X64 Xcelera-CL PX4 firmware loader function in the DALSA Device manager utility to select firmware for one of the supported modes. Firmware selection is made either during driver installation or manually later on (see "Firmware Update: Manual...

  • Page 10: Acuplus: Acquisition Control Unit

    Older computers may not support the maximum data transfer bandwidth defined for PCI Express x4. • The X64 Xcelera-CL PX4 board can also be used in an PCI Express x8 slot typically without issue. • If the computer only has a PCI Express x16 slot, direct installation tests or the computer documentation is required to know if the X64 Xcelera-CL PX4 is supported.

  • Page 11: Advanced Controls Overview

    The X-I/O module can be either purchased with the X64 Xcelera-CL PX4 board or installed into the computer system at a later time. The module occupies one adjacent PCI slot and connects to the X64 Xcelera-CL PX4 via a ribbon cable.

  • Page 12: Development Software Overview

    Sapera++ LT is a powerful development library for image acquisition and control. Sapera++ LT provides a single API across all current and future DALSA hardware. Sapera++ LT delivers a comprehensive feature set including program portability, versatile camera controls, flexible display functionality and management, plus easy to use application development wizards.

  • Page 13: Installing X64 Xcelera-Cl Px4

    Never remove or install any hardware component with the computer power on. Upgrading Sapera or any Board Driver When installing a new version of Sapera or a DALSA acquisition board driver in a computer with a previous installation, the current version must be un-installed first. Upgrade scenarios are described below.

  • Page 14: Sapera And Board Driver Upgrades

    Sapera LT Library Installation Note: to install Sapera LT and the X64 Xcelera-CL PX4 device driver, logon to the workstation as administrator or with an account that has administrator privileges. The Sapera LT Development Library (or ‘runtime library’ if application execution without development is preferred) must be installed before the X64-CL device driver.

  • Page 15: Installing X64 Xcelera-Cl Px4 Hardware And Driver

    Install the X64 Xcelera-CL PX4 into a free PCI Express x4 expansion slot. The X64 Xcelera-CL PX4 could also be installed in a PCI Express x8. Note that some computer's x16 slot may support the X64 Xcelera-CL PX4. The user needs to test each computer to verify support of a x4 product.

  • Page 16: X64 Xcelera-Cl Px4 Firmware Loader

    If there are multiple X64 Xcelera-CL PX4 boards in the system, all will be updated with new firmware. If any installed X64 Xcelera-CL PX4 board installed in a system already has the correct firmware version, an update is not required.
  • Page 17 A manual firmware update is made as follows: • Select the X64 Xcelera-CL PX4 to update via the board selection box (if there are multiple boards in the system) • From the Configuration field drop menu select the firmware version required •...

  • Page 18: Enabling The Camera Link Serial Control Port

    Any serial port communication program, such as Windows HyperTerminal, can connect to the camera in use and modify its function modes via its serial port controls. The X64 Xcelera-CL PX4 serial port supports communication speeds from 9600 to 115 kbps.

  • Page 19: Setup Example With Windows Hyperterminal

    • On the following dialog screen select the port to connect with. The port could be the COM port mapped to the X64 Xcelera-CL PX4 or the COM device as shown in this example. Installing X64 Xcelera-CL PX4 • 17...
  • Page 20 • HyperTerminal now presents a dialog to configure the COM port properties. Change settings as required by the camera you are connecting to. Note that the X64 Xcelera-CL PX4 serial port does not support hardware flow control. 18 • Installing X64 Xcelera-CL PX4...

  • Page 21: Displaying X64 Xcelera-Cl Px4 Board Information

    The following screen image shows the Device Manager program with the Information/Firmware tab active. The left window displays all X64 Xcelera-CL PX4 boards in the system and their individual device components. The right window displays the information stored in the selected board device. This example screen shows the X64 Xcelera-CL PX4 information contained in the EEProm component.

  • Page 22: Camera To Camera Link Connections

    Connect the camera to Camera Link 1 with a Camera Link cable. When using a Medium camera, connect the second camera cable to Camera Link 2. • The X64 Xcelera-CL PX4 Dual board supports one or two cameras (one or two Base, or one Medium – see “Data Port Summary” on page 100 for information on Camera Link configurations).

  • Page 23: Configuring Sapera

    Configuring Sapera Viewing Installed Sapera Servers The Sapera configuration program (Start • Programs • DALSA • Sapera LT • Sapera Configuration) allows the user to see all available Sapera servers for the installed Sapera-compatible boards. The System entry represents the system server. It corresponds to the host machine (your computer) and is the only server that should always be present.

  • Page 24: Contiguous Memory For Sapera Messaging

    Troubleshooting Installation Problems The X64 Xcelera-CL PX4 (and the X64 family of products) has been tested by DALSA in a variety of computers. Although unlikely, installation problems may occur due to the constant changing nature of computer equipment and operating systems.

  • Page 25: Windows Event Viewer

    CL PX4 Device Driver • CorDeviceManager. If the Device Manager program does not run, it will exit with a message that the board was not found. Since the X64 Xcelera-CL PX4 board must have been in the system to install the board driver, possible reasons for an error are: •...
  • Page 26 The following figure shows the Device Manager information screen. Click to highlight one of the board components and the information for that item is shown on the right hand window, as described below. • Select Information to display identification and information stored in the X64 Xcelera-CL PX4 firmware. •...

  • Page 27: Pci Configuration

    As shown in the following screen image, use the first drop menu to select the PCI device to examine. Select the device from DALSA. Note the bus and slot number of the installed board (this will be unique for each system unless systems are setup identically). Click on the Diagnostic button to view an analysis of the system PCI configuration space.

  • Page 28: Sapera And Hardware Windows Drivers

    The Log Viewer lists information about the installed DALSA drivers. Click on File • Save and you will be prompted for a text file name to save the Log Viewer contents. Email this text file to DALSA Technical Support when requested or as part of your initial contact email.

  • Page 29: Windows Device Manager

    This double buffering memory allocation is automatic at the driver level. The X64 Xcelera-CL PX4 driver uses two buffers to ensure that the acquired video frame is complete and not corrupted in cases where the image transfer to host system memory may be interrupted and delayed by other host system processes.

  • Page 30: Symptoms: Camexpert Detects No Boards

    If CamExpert should have detected the installed board, troubleshoot the installation problem as described below. Troubleshooting Procedure When CamExpert detects no installed DALSA board, there could be a hardware problem, a PnP problem, a PCI problem, a kernel driver problem, or a software installation problem. •...

  • Page 31: Symptoms: Card Grabs Black

    Note that some computer's x16 slot may only support non x16 boards at x1 or not at all. Check the computer documentation or test an X64 Xcelera-CL PX4 installation. Note that the X64 Xcelera-CL PX4 board is not designed to function at x1 speeds.
  • Page 32 30 • Installing X64 Xcelera-CL PX4 X64 Xcelera-CL PX4 User's Manual...

  • Page 33: Camexpert Quick Start

    Every Sapera demo program starts by a dialog window to select a camera configuration file. Even when using the X64 Xcelera-CL PX4 with common video signals, a camera file is required. Therefore CamExpert is typically the first Sapera application run after an installation. Obviously existing .ccf files can be copied to the new installation when similar cameras are used.
  • Page 34 Device: Select which acquisition device to control and configure a camera file for. Required in cases where there are multiple boards in a system and also when one board supports multiple acquisition types. Note in this example, the X64 Xcelera-CL PX4 was installed with firmware for Full support for monochrome or Medium RGB cameras.

  • Page 35: Camexpert Demonstration And Test Tools

    The memory error message [ Error: "CorXferConnect" <Xfer module> - No memory () ] may occur when loading a Sapera camera file, or when the application configures a frame buffer for area scan cameras. The problem is that the X64 Xcelera-CL PX4 does not have enough onboard memory for two frame buffers.

  • Page 36: Overview Of Sapera Acquisition Parameter Files (*.Ccf Or *.Cca/*.Cvi)

    Camera Configuration file used with Sapera LT 5.0 and the CamExpert utility. CCA File Details DALSA distributes camera files using the “.CCA” extension, (CAMERA files), which contain all parameters describing the camera video signal characteristics and operation modes (what the camera outputs).

  • Page 37: Camera Interfacing Check List

    Confirm that DALSA has not already published an application note with camera files [http://www.imaging.com/camsearch]. • Confirm that the correct version or board revision of X64 Xcelera-CL PX4 is used. Confirm that the required firmware is loaded into the X64 Xcelera-CL PX4 . •...

  • Page 38: Using The Flat Field Correction Tool

    X64 Xcelera-CL PX4 Flat Field Support The X64 Xcelera-CL PX4 supports hardware based real-time Flat Field Correction when used with its dual Base or one Medium configuration. Important: Flat field and flat line correction impose limitations to the maximum acquisition frame rate.
  • Page 39 128. If acceptable accept the image as the white reference. • Click on Save. The flat field correction data is saved as a TIF image with a file name of your choice (such as camera name and serial number). CamExpert Quick Start • 37 X64 Xcelera-CL PX4 User's Manual...

  • Page 40: Using Flat Field Correction

    The CamExpert Bayer filter tool supports using both software or hardware based decoding. With boards that have Bayer filter decoding in hardware such as the X64 Xcelera-CL PX4 (requires loading the Bayer Decoder firmware), CamExpert directly controls the hardware for high performance real-time acquisitions from Bayer filter cameras.

  • Page 41: Using The Bayer Filter

    Using the Bayer Filter A Sapera application, when loading the camera file parameters, will have the RGB gain adjustment values. The application can provide the calibration window to make RGB adjustments as required. CamExpert Quick Start • 39 X64 Xcelera-CL PX4 User's Manual...
  • Page 42 40 • CamExpert Quick Start X64 Xcelera-CL PX4 User's Manual...

  • Page 43: Sapera Demo Applications

    The demo program first displays the acquisition configuration menu. The first drop menu displayed permits selecting from any installed Sapera acquisition servers (installed DALSA acquisition hardware using Sapera drivers). The second drop menu permits selecting from the available input devices present on the selected server.

  • Page 44: Flat-Field Demo Overview

    This program demonstrates Flat Field or Flat Line processing, either performed by supporting DALSA hardware or performed on the host system via the Sapera library. The program allows you to acquire a flat field or flat line reference image, and then do real time correction either in continuous or single acquisition mode.

  • Page 45: X64 Xcelera-Cl Px4 Reference

    Quad general Outputs Opto-coupled Data Control Power Out Control 1.5A/reset Power Gnd PCI Express 4X Controller X64 Xcelera-CL PX4 Full Simplified Block Diagram Host PCI Express 4X (or greater) Slot X64 Xcelera-CL PX4 Reference • 43 X64 Xcelera-CL PX4 User's Manual...

  • Page 46: Acquisition Timing

    Maximum Valid Data: 8-bits/pixel x 256K Pixels/line (LVAL) 16-bits/pixel x 128K Pixels/line (LVAL) 32-bits/pixel x 64K Pixels/line (LVAL) 64-bits/pixel x 32K Pixels/line (LVAL) 16,000,000 lines (FVAL) 44 • X64 Xcelera-CL PX4 Reference X64 Xcelera-CL PX4 User's Manual...

  • Page 47: Line Trigger Source Selection For Linescan Applications

    (quadrature) signal. The X64 Xcelera-CL PX4 shaft encoder inputs provide additional functionality with pulse drop or pulse multiply support. The following table describes the line trigger source types supported by the X64 Xcelera-CL PX4 Full. Refer to the Sapera Acquisition Parameters Reference Manual (OC-SAPM-APR00) for descriptions of the Sapera parameters.
  • Page 48 CORACQ_PRM_EXT_LINE_TRIGGER_SOURCE full description relative to trigger type and X64 Xcelera-CL PX4 configuration used: X64 Xcelera-CL External Line Trigger External Shaft Encoder Value PX4 configuration Signal used Signal used & camera input used CORACQ_PRM_EXT_LINE_ CORACQ_PRM_SHAFT_ TRIGGER_ENABLE = true ENCODER_ENABLE =true Dual - Camera #1...

  • Page 49: Shaft Encoder Interface Timing

    These trigger signals are used by the acquisition linescan camera. The X64 Xcelera-CL PX4 supports single or dual shaft encoder signals. Dual encoder signals are typically 90 degrees out of phase relative to each other and provide greater web motion resolution.

  • Page 50: Virtual Frame_Reset For Linescan Cameras

    • FRAME_RESET control is configured for rising edge trigger in this example. • FRAME_RESET connects to the X64 Xcelera-CL PX4 via the Trigger In 1 balanced inputs on connector J4 pin 11 (+) and 12 (-). • After the X64 Xcelera-CL PX4 receives FRAME_RESET, the EXSYNC control signal is output to the camera to trigger n lines of video as per the defined virtual frame size.
  • Page 51 \\ Frame_Reset signal type • If Z= 2, External Frame Trigger is a RS-422/LVDS signal For information on camera files see the Sapera Acquisition Parameters Reference Manual (OC-SAPM- APR00). X64 Xcelera-CL PX4 Reference • 49 X64 Xcelera-CL PX4 User's Manual...

  • Page 52: Acquisition Methods

    The Data Overflow event indicates that there is not enough bandwidth for the acquired data to be transferred without loss. This is usually caused by limitations of the acquisition module and should never occur. The Sapera event value is CORACQ_VAL_EVENT_TYPE_DATA_OVERFLOW. 50 • X64 Xcelera-CL PX4 Reference X64 Xcelera-CL PX4 User's Manual...
  • Page 53 (if transfers are already in progress). If a transfer of a fixed number of frames was requested, the transfer module will stop transfers automatically. The Sapera event value is CORXFER_VAL_EVENT_TYPE_END_OF_TRANSFER. X64 Xcelera-CL PX4 Reference • 51 X64 Xcelera-CL PX4 User's Manual...

  • Page 54: Lut Availability

    High performance cameras that output 10 taps can not be interfaced with a standard CameraLink full specification frame grabber. The X64 Xcelera-CL PX4 Full provides support for a non-standard 10-tap format by using specific firmware easily uploaded when required. This format is described below along with an example camera requiring this non-standard format.
  • Page 55 Tx23/Rx23 D6_1 Tx23/Rx23 D9_4 Tx23/Rx23 LVAL Tx24/Rx24 D6_2 Tx24/Rx24 D9_5 Tx24/Rx24 FVAL Tx25/Rx25 D6_3 Tx25/Rx25 D9_6 Tx25/Rx25 D3_0 Tx26/Rx26 D6_4 Tx26/Rx26 D9_7 Tx26/Rx26 D3_1 Tx27/Rx27 LVAL Tx27/Rx27 LVAL Tx27/Rx27 X64 Xcelera-CL PX4 Reference • 53 X64 Xcelera-CL PX4 User's Manual...

  • Page 56: X64 Xcelera-Cl Px4 Supported Parameters

    X64 Xcelera-CL PX4 Supported Parameters The tables below describe the Sapera capabilities supported by the X64 Xcelera-CL PX4 Full (i.e. default firmware is loaded). Unless specified, each capability applies to both boards or all mode configurations and all acquisition modes.

  • Page 57: Camera Related Parameters - Cameralink Full Mono

    = 1 line CORACQ_PRM_VBACK_PORCH min = 0 line max = 0 line step = 1 line CORACQ_PRM_HFRONT_INVALID min = 0 pixel max = 16777215 pixel step = 1 pixel X64 Xcelera-CL PX4 Reference • 55 X64 Xcelera-CL PX4 User's Manual...
  • Page 58 CORACQ_PRM_CAM_RESET_DURATION min = 1 µs max = 65535000 µs step = 1 µs CORACQ_PRM_CAM_NAME Default Area Scan CORACQ_PRM_LINE_INTEGRATE_METHOD CORACQ_VAL_LINE_INTEGRATE_METHOD_1 (0x1) CORACQ_VAL_LINE_INTEGRATE_METHOD_2 (0x2) CORACQ_VAL_LINE_INTEGRATE_METHOD_3 (0x4) CORACQ_VAL_LINE_INTEGRATE_METHOD_4 (0x8) CORACQ_PRM_LINE_TRIGGER_METHOD CORACQ_VAL_LINE_TRIGGER_METHOD_1 (0x1) 56 • X64 Xcelera-CL PX4 Reference X64 Xcelera-CL PX4 User's Manual...
  • Page 59 CORACQ_VAL_TAP_DIRECTION_LR (0x1) CORACQ_VAL_TAP_DIRECTION_RL (0x2) CORACQ_VAL_TAP_DIRECTION_UD (0x4) CORACQ_VAL_TAP_DIRECTION_DU (0x8) CORACQ_VAL_TAP_DIRECTION_FROM_TOP (0x10) CORACQ_VAL_TAP_DIRECTION_FROM_MID (0x20) CORACQ_VAL_TAP_DIRECTION_FROM_BOT (0x40) CORACQ_PRM_TAP_6_DIRECTION CORACQ_VAL_TAP_DIRECTION_LR (0x1) CORACQ_VAL_TAP_DIRECTION_RL (0x2) CORACQ_VAL_TAP_DIRECTION_UD (0x4) CORACQ_VAL_TAP_DIRECTION_DU (0x8) CORACQ_VAL_TAP_DIRECTION_FROM_TOP (0x10) CORACQ_VAL_TAP_DIRECTION_FROM_MID (0x20) CORACQ_VAL_TAP_DIRECTION_FROM_BOT (0x40) X64 Xcelera-CL PX4 Reference • 57 X64 Xcelera-CL PX4 User's Manual...
  • Page 60 CORACQ_VAL_ACTIVE_LOW (0x1) CORACQ_VAL_ACTIVE_HIGH (0x2) CORACQ_PRM_LINE_INTEGRATE_PULSE1_DELAY min = 0 µs max = 65535000 µs step = 1 µs CORACQ_PRM_LINE_INTEGRATE_PULSE1_DURATION min = 1 µs max = 65535000 µs step = 1 µs 58 • X64 Xcelera-CL PX4 Reference X64 Xcelera-CL PX4 User's Manual...
  • Page 61 CORACQ_VAL_TAP_DIRECTION_LR (0x1) CORACQ_VAL_TAP_DIRECTION_RL (0x2) CORACQ_VAL_TAP_DIRECTION_UD (0x4) CORACQ_VAL_TAP_DIRECTION_DU (0x8) CORACQ_VAL_TAP_DIRECTION_FROM_TOP (0x10) CORACQ_VAL_TAP_DIRECTION_FROM_MID (0x20) CORACQ_VAL_TAP_DIRECTION_FROM_BOT (0x40) CORACQ_PRM_TAP_13_DIRECTION CORACQ_VAL_TAP_DIRECTION_LR (0x1) CORACQ_VAL_TAP_DIRECTION_RL (0x2) CORACQ_VAL_TAP_DIRECTION_UD (0x4) CORACQ_VAL_TAP_DIRECTION_DU (0x8) CORACQ_VAL_TAP_DIRECTION_FROM_TOP (0x10) CORACQ_VAL_TAP_DIRECTION_FROM_MID (0x20) CORACQ_VAL_TAP_DIRECTION_FROM_BOT (0x40) X64 Xcelera-CL PX4 Reference • 59 X64 Xcelera-CL PX4 User's Manual...

  • Page 62: Vic Related Parameters - Cameralink Full Mono

    Not available CORACQ_PRM_BRIGHTNESS_BLUE Not available CORACQ_PRM_CONTRAST Not available CORACQ_PRM_CONTRAST_RED Not available CORACQ_PRM_CONTRAST_GREEN Not available CORACQ_PRM_CONTRAST_BLUE Not available CORACQ_PRM_HUE Not available CORACQ_PRM_SATURATION Not available CORACQ_PRM_FIX_FILTER_ENABLE Not available CORACQ_PRM_FIX_FILTER_SELECTOR (*) Not available 60 • X64 Xcelera-CL PX4 Reference X64 Xcelera-CL PX4 User's Manual...

  • Page 63: Coracq_Prm_Ext_Trigger_Enable

    Not available CORACQ_PRM_TIME_INTEGRATE_ENABLE TRUE FALSE CORACQ_PRM_TIME_INTEGRATE_DURATION min = 1 µs max = 65535000 µs step = 1 µs CORACQ_PRM_CAM_TRIGGER_ENABLE TRUE FALSE CORACQ_PRM_CAM_RESET_ENABLE TRUE FALSE CORACQ_PRM_OUTPUT_FORMAT CORACQ_VAL_OUTPUT_FORMAT_MONO8 CORACQ_VAL_OUTPUT_FORMAT_MONO16 CORACQ_PRM_EXT_TRIGGER_ENABLE CORACQ_VAL_EXT_TRIGGER_OFF (0x1) X64 Xcelera-CL PX4 Reference • 61 X64 Xcelera-CL PX4 User's Manual...

  • Page 64: Coracq_Prm_Ext_Trigger_Level

    Not available CORACQ_PRM_BIT_ORDERING CORACQ_VAL_BIT_ORDERING_STD (0x1) CORACQ_PRM_EXT_TRIGGER_LEVEL CORACQ_VAL_LEVEL_TTL (0x1) CORACQ_VAL_LEVEL_422 (0x2) CORACQ_PRM_STROBE_LEVEL CORACQ_VAL_LEVEL_TTL (0x1) CORACQ_PRM_EXT_FRAME_TRIGGER_LEVEL CORACQ_VAL_LEVEL_TTL (0x1) CORACQ_VAL_LEVEL_422 (0x2) CORACQ_PRM_EXT_LINE_TRIGGER_LEVEL CORACQ_VAL_LEVEL_422 (0x2) CORACQ_PRM_INT_LINE_TRIGGER_FREQ_MIN 245 Hz CORACQ_PRM_INT_LINE_TRIGGER_FREQ_MAX 500000 Hz CORACQ_PRM_MASTER_MODE Not available 62 • X64 Xcelera-CL PX4 Reference X64 Xcelera-CL PX4 User's Manual...

  • Page 65: Coracq_Prm_Ext_Trigger_Duration

    CORACQ_PRM_EXT_FRAME_TRIGGER_SOURCE (*) min = 0 max = 5 step = 1 CORACQ_PRM_EXT_LINE_TRIGGER_SOURCE (*) min = 0 max = 7 step = 1 CORACQ_PRM_EXT_TRIGGER_SOURCE (*) min = 0 max = 5 X64 Xcelera-CL PX4 Reference • 63 X64 Xcelera-CL PX4 User's Manual...
  • Page 66 [6] = Pulse to Board Sync [7] = To Board Sync When Grabbing CORACQ_PRM_VERTICAL_TIMEOUT_DELAY min = 0 max = 16383000 step = 1 CORACQ_PRM_BAYER_DECODER_SATURATION_FACTOR min = 0 max = 0 64 • X64 Xcelera-CL PX4 Reference X64 Xcelera-CL PX4 User's Manual...

  • Page 67: Acq Related Parameters - Cameralink Full Mono

    Supported Camera Related Capabilities - CameraLink Medium Color RGB Acquisition Device (1) Capability Values CORACQ_CAP_CONNECTOR_TYPE CORACQ_VAL_CONNECTOR_TYPE_CAMLINK (0x2) CORACQ_CAP_CONNECTOR_CAMLINK Pin - 01 CORACQ_VAL_SIGNAL_NAME_NO_CONNECT (0x1) CORACQ_VAL_SIGNAL_NAME_PULSE0 (0x8) CORACQ_VAL_SIGNAL_NAME_PULSE1 (0x10) CORACQ_VAL_SIGNAL_NAME_GND (0x4000) X64 Xcelera-CL PX4 Reference • 65 X64 Xcelera-CL PX4 User's Manual...

  • Page 68: Camera Related Parameters - Cameralink Medium Color Rgb

    = 0 pixel step = 1 pixel CORACQ_PRM_COUPLING Not available CORACQ_PRM_VFRONT_PORCH min = 0 line max = 0 line step = 1 line CORACQ_PRM_VBACK_PORCH min = 0 line 66 • X64 Xcelera-CL PX4 Reference X64 Xcelera-CL PX4 User's Manual...
  • Page 69 = 1 µs CORACQ_PRM_CAM_RESET_METHOD CORACQ_VAL_CAM_RESET_METHOD_1 (0x1) CORACQ_PRM_CAM_RESET_POLARITY CORACQ_VAL_ACTIVE_LOW (0x1) CORACQ_VAL_ACTIVE_HIGH (0x2) CORACQ_PRM_CAM_RESET_DURATION min = 1 µs max = 65535000 µs step = 1 µs CORACQ_PRM_CAM_NAME Default Area Scan X64 Xcelera-CL PX4 Reference • 67 X64 Xcelera-CL PX4 User's Manual...
  • Page 70 CORACQ_VAL_TAP_DIRECTION_FROM_MID (0x20) CORACQ_VAL_TAP_DIRECTION_FROM_BOT (0x40) CORACQ_PRM_PIXEL_CLK_DETECTION CORACQ_VAL_RISING_EDGE (0x4) CORACQ_PRM_CHANNELS_ORDER CORACQ_VAL_CHANNELS_ORDER_NORMAL (0x1) CORACQ_VAL_CHANNELS_ORDER_REVERSE (0x2) CORACQ_PRM_LINESCAN_DIRECTION Not available CORACQ_PRM_LINESCAN_DIRECTION_POLARITY Not available CORACQ_PRM_CAM_LINE_TRIGGER_FREQ_MIN 1 Hz CORACQ_PRM_CAM_LINE_TRIGGER_FREQ_MAX 16777215 Hz CORACQ_PRM_CAM_TIME_INTEGRATE_DURATION_MIN 1 µs CORACQ_PRM_CAM_TIME_INTEGRATE_DURATION_MAX 65535000 µs 68 • X64 Xcelera-CL PX4 Reference X64 Xcelera-CL PX4 User's Manual...
  • Page 71 CORACQ_PRM_CONNECTOR_LINESCAN_DIRECTION_INPUT (*) Default = 0 CORACQ_PRM_CAMLINK_CONFIGURATION CORACQ_VAL_CAMLINK_CONFIGURATION_BASE (0x1) CORACQ_PRM_DATA_VALID_ENABLE TRUE FALSE CORACQ_PRM_DATA_VALID_POLARITY CORACQ_VAL_ACTIVE_HIGH (0x2) CORACQ_PRM_CONNECTOR_PIXEL_CLK_OUTPUT (*) Default = 0 CORACQ_PRM_CONNECTOR_WEN_OUTPUT (*) Default = 0 CORACQ_PRM_WEN_POLARITY Not available CORACQ_PRM_TIMESLOT CORACQ_VAL_TIMESLOT_1 (0x1) X64 Xcelera-CL PX4 Reference • 69 X64 Xcelera-CL PX4 User's Manual...

  • Page 72: Vic Related Parameters - Cameralink Medium Color Rgb

    = 16 pixel CORACQ_PRM_CROP_HEIGHT min = 1 line max = 16777215 line step = 1 line CORACQ_PRM_SCALE_HORZ Not available CORACQ_PRM_SCALE_VERT Not available CORACQ_PRM_SCALE_HORZ_METHOD Not available CORACQ_PRM_SCALE_VERT_METHOD Not available 70 • X64 Xcelera-CL PX4 Reference X64 Xcelera-CL PX4 User's Manual...
  • Page 73 = 1 pixel CORACQ_PRM_DC_REST_WIDTH min = 0 pixel max = 0 pixel step = 1 pixel CORACQ_PRM_LUT_FORMAT Default = CORACQ_VAL_OUTPUT_FORMAT_RGB101010 CORACQ_PRM_VSYNC_TIMEOUT Not available CORACQ_PRM_VSYNC_REF CORACQ_VAL_SYNC_REF_END (0x2) CORACQ_PRM_HSYNC_REF CORACQ_VAL_SYNC_REF_END (0x2) X64 Xcelera-CL PX4 Reference • 71 X64 Xcelera-CL PX4 User's Manual...
  • Page 74 Default = 1 frame CORACQ_PRM_INT_FRAME_TRIGGER_ENABLE TRUE FALSE CORACQ_PRM_INT_FRAME_TRIGGER_FREQ min = 1 milli-Hz max = 1073741823 milli-Hz step = 1 milli-Hz CORACQ_PRM_SHARED_EXT_TRIGGER Not available CORACQ_PRM_SHARED_CAM_RESET Not available CORACQ_PRM_SHARED_CAM_TRIGGER Not available CORACQ_PRM_SHARED_TIME_INTEGRATE Not available 72 • X64 Xcelera-CL PX4 Reference X64 Xcelera-CL PX4 User's Manual...
  • Page 75 CORACQ_PRM_EXT_TRIGGER_DELAY_TIME_BASE CORACQ_VAL_TIME_BASE_LINE (0x4) CORACQ_PRM_BAYER_DECODER_ENABLE Not available CORACQ_PRM_BAYER_DECODER_METHOD Not available CORACQ_PRM_BAYER_DECODER_WB_GAIN_RED min = 0 max = 0 step = 1 CORACQ_PRM_BAYER_DECODER_WB_GAIN_GREEN min = 0 max = 0 step = 1 X64 Xcelera-CL PX4 Reference • 73 X64 Xcelera-CL PX4 User's Manual...
  • Page 76 = 0 max = 0 step = 1 CORACQ_PRM_BAYER_DECODER_SATURATION_WEIGHT_GRE min = 0 max = 0 step = 1 CORACQ_PRM_BAYER_DECODER_SATURATION_WEIGHT_BLU min = 0 max = 0 step = 1 74 • X64 Xcelera-CL PX4 Reference X64 Xcelera-CL PX4 User's Manual...

  • Page 77: Acq Related Parameters - Cameralink Medium Color Rgb

    CameraLink Medium Color RGB #1 CORACQ_PRM_EVENT_TYPE CORACQ_VAL_EVENT_TYPE_START_OF_FRAME CORACQ_VAL_EVENT_TYPE_END_OF_FRAME CORACQ_VAL_EVENT_TYPE_EXTERNAL_TRIGGER CORACQ_VAL_EVENT_TYPE_NO_PIXEL_CLK CORACQ_VAL_EVENT_TYPE_PIXEL_CLK CORACQ_VAL_EVENT_TYPE_FRAME_LOST CORACQ_VAL_EVENT_TYPE_DATA_OVERFLOW CORACQ_VAL_EVENT_TYPE_EXTERNAL_TRIGGER_IGNORED CORACQ_VAL_EVENT_TYPE_VERTICAL_TIMEOUT CORACQ_PRM_SIGNAL_STATUS CORACQ_VAL_SIGNAL_HSYNC_PRESENT CORACQ_VAL_SIGNAL_VSYNC_PRESENT CORACQ_VAL_SIGNAL_PIXEL_CLK_PRESENT CORACQ_PRM_DETECT_PIXEL_CLK Not available CORACQ_PRM_DETECT_HACTIVE CORACQ_PRM_DETECT_VACTIVE CORACQ_PRM_FLAT_FIELD_SELECT CORACQ_PRM_FLAT_FIELD_ENABLE TRUE FALSE CORACQ_CAP_SERIAL_PORT_INDEX Supported X64 Xcelera-CL PX4 Reference • 75 X64 Xcelera-CL PX4 User's Manual...

  • Page 78: Memory Error With Area Scan Frame Buffer Allocation

    The memory error message [ Error: "CorXferConnect" <Xfer module> - No memory () ] may occur when loading a Sapera camera file, or when the application configures a frame buffer for area scan cameras. The problem is that the X64 Xcelera-CL PX4 does not have enough onboard memory for two frame buffers.

  • Page 79: Sapera Servers & Resources

    Sapera Servers & Resources Servers and Resources The following table describes the X64 Xcelera-CL PX4 Full board Servers Resources Name Type Name Index Description Xcelera-CL_PX4_1 Acquisition CameraLink Full Mono Full configuration, (default firmware) monochrome output, Camera #1 CameraLink Full Color...

  • Page 80: Transfer Resource Locations

    The following table illustrates all possible source/destination pairs in a transfer. Source Transfer passing through Destination X64 Xcelera-CL PX4 Acquisition 1 to 2 internal buffers & 1 to 2 Host Buffers the X64 internal processor 78 • Sapera Servers & Resources X64 Xcelera-CL PX4 User's Manual...

  • Page 81: Technical Specifications

    Technical Specifications X64 Xcelera-CL PX4 Board Specifications X64 Xcelera-CL PX4 Dimensions Approximately 6.5 in. (16.6 cm) wide by 4 in. (10 cm) high. Digital Video Input & Controls Input Type Camera Link Specifications Rev 1.10 compliant; 1Full or 1 Medium or 1 Base...
  • Page 82 Approximately 680MB/s. Serial Port Supports communication speeds from 9600 to 115 kbps Controls Compliant with DALSA Trigger-to-Image Reliability framework Comprehensive event notifications (see "Supported Events" on page Timing control logic for EXSYNC, PRIN and strobe signals Dual independent opto-coupled external trigger inputs programmable as...

  • Page 83: Host System Requirements

    • PCI Express x4 slot or x8 slot compatible • On some computers the X64 Xcelera-CL PX4 installed in a x16 slot may function. The computer documentation or direct testing is required. Operating System Support Windows 2000 SP1, Windows XP, XP 64-bit, Windows Vista...

  • Page 84: Connector And Switch Locations

    J2000 LED 1 X64 Xcelera-CL PX4 Full PCIe 4X Connector Description List The following table lists components on the X64 Xcelera-CL PX4 board. Detailed information follows for connectors or switches the end user may have need of. Connector Description Connector...

  • Page 85: Connector And Switch Specifications

    Connect the camera to the J1 connector with a Camera Link cable. When using a Medium camera, connect the second camera connector to J2. Note: If the camera is powered by the X64 Xcelera-CL PX4, refer to "External Signals Connector Bracket Assembly" on page 94 for power connections.

  • Page 86: Configuration Micro-Switches

    Specifications" on page Assigned to OFF Position ON Position Switch Number (default) trigger input 1 Logic Transition at trigger input 2 ~2 volts Logic Transition at (preferred for differential ~10 volts signals) 84 • Technical Specifications X64 Xcelera-CL PX4 User's Manual...

  • Page 87: Status Leds Functional Description

    SW3: Additional Controls The X64 Xcelera-CL PX4 powers up either in its normal state or a 'Safe Boot' mode required to load firmware under certain conditions. See the notes for SW3-1 following the table for details. Assigned to OFF Position...

  • Page 88: J2: Camera Link Connector 1

    Neg. Camera Control 2 CC3- Output Neg. Camera Control 3 CC3+ Output Pos. Camera Control 3 CC4+ Output Pos. Camera Control 4 CC4- Output Neg. Camera Control 4 1, 13, 14, 26 Ground 86 • Technical Specifications X64 Xcelera-CL PX4 User's Manual...

  • Page 89: J3: Camera Link Connector 2

    FULL _X3- Input Neg. Full Data 3 FULL _X3+ Input Pos. Full Data 3 FULL _XCLK- Input Neg. Full Clock FULL _XCLK+ Input Pos. Full Clock 1, 13, 14, 26 Ground Technical Specifications • 87 X64 Xcelera-CL PX4 User's Manual...

  • Page 90: Camera Link Camera Control Signal Overview

    Note: The X64 Xcelera-CL PX4 pulse controller has a minimum resolution of 1 us. When configuring the Camera Link control signals, such as exposure control, etc. use values in increments of 1 us.

  • Page 91: J4: External Signals Connector

    Power Output 5 Volts, 1.5A max Power Output 5 Volts, 1.5A max (see note 6) Power Output 12 Volts, 1.5A max Power Output 12 Volts, 1.5A max Ground Ground Ground Ground Technical Specifications • 89 X64 Xcelera-CL PX4 User's Manual...
  • Page 92 Maximum output device sink current is 35mA with 25V output differential. • Maximum reverse voltage is 25V. • Maximum output switching frequency is limited by driver and register access on the PCIe bus. 90 • Technical Specifications X64 Xcelera-CL PX4 User's Manual...
  • Page 93 See also *.cvi file entries: External Trigger Level, External Frame Trigger Level, External Trigger Enable, External Trigger Detection. • External Trigger Input 2 used for two pulse external trigger with variable frame length linescan acquisition. Technical Specifications • 91 X64 Xcelera-CL PX4 User's Manual...
  • Page 94 • See also *.cvi file entries: Shaft Encoder Enable, Shaft Encoder Pulse Drop or see External Line Trigger Enable, External Line Trigger Detection, External Line Trigger Level, External Line Trigger Source. 92 • Technical Specifications X64 Xcelera-CL PX4 User's Manual...
  • Page 95 Both the 5Volt and 12Volt power pins have a 1.5 amp re-settable fuse on the board. If the fuse is tripped, turn off the host computer power. When the computer is turned on again, the fuse is automatically reset. Technical Specifications • 93 X64 Xcelera-CL PX4 User's Manual...

  • Page 96: External Signals Connector Bracket Assembly (Type 1)

    PC expansion slot and connect the free cable end to the board's J4 header. When connecting to J4, make sure that the cable pin 1 goes to J4 pin 1 (see the layout drawing "X64 Xcelera-CL PX4 Board Layout Drawing"...
  • Page 97 External Trigger Input 1 - Shaft Encoder Phase A + Shaft Encoder Phase A - Shaft Encoder Phase B + Shaft Encoder Phase B - Ground Strobe Output 0 Ground Strobe Output 1 Technical Specifications • 95 X64 Xcelera-CL PX4 User's Manual...
  • Page 98 Ground Ground +12V +12V Ground — — — — — — 96 • Technical Specifications X64 Xcelera-CL PX4 User's Manual...

  • Page 99: External Signals Connector Bracket Assembly (Type 2)

    External Signals Connector Bracket Assembly (Type 2) The External Signals bracket (OR-X4CC-0TIO2) provides a simple way to bring out the signals from the External Signals Connector J4 to a bracket mounted DB25. External cables designed for the DALSA X64-CL iPro can be connected directly.
  • Page 100 Refer to the table "J4: External Signals Connector " on page 89 for signal descriptions. DB25 Pin Number Signal J4 Connector Pin Number TRIG_0+ TRIG_0- TRIG_1+ TRIG_1- PHY_0+ PHY_0- PHY_1+ PHY_1- Strobe_0 Strobe_1 98 • Technical Specifications X64 Xcelera-CL PX4 User's Manual...

  • Page 101: Camera Link Interface

    3M™ is a trademark of the 3M Company. Channel Link™ is a trademark of National Semiconductor. Flatlink™ is a trademark of Texas Instruments. Panel Link™ is a trademark of Silicon Image. Camera Link Interface • 99 X64 Xcelera-CL PX4 User's Manual...

  • Page 102: Data Port Summary

    Camera Control 3 (CC3) • Camera Control 4 (CC4) Note: the X64-CL by default implements the control lines as follows (using DALSA Corporation terminology). (CC1) EXYNC (CC2) PRIN (CC3) FORWARD (CC4) HIGH 100 • Camera Link Interface X64 Xcelera-CL PX4 User's Manual...

  • Page 103: Camera Link Cables

    The serial interface protocol is one start bit, one stop bit, no parity, and no handshaking. Camera Link Cables For additional information on Camera Link cables and their specifications, visit the following web sites: http://www.3m.com/us/electronics_mfg/interconnects/ (enter Camera Link as the search keyword) Nortech Systems http://www.nortechsys.com/intercon/CameraLinkMain.htm Camera Link Interface • 101 X64 Xcelera-CL PX4 User's Manual...
  • Page 104 102 • Camera Link Interface X64 Xcelera-CL PX4 User's Manual...

  • Page 105: Appendix: X-I/O Module Option

    Occupies an adjacent slot to the X64 Xcelera-CL PX4 Full. Slot can be either PCI-32 or PCI- 64—no PCI signals or power are used. • Connects to the X64 Xcelera-CL PX4 via a 16 pin flat ribbon cable. J23 on X-I/O to J6 on X64 Xcelera-CL PX4. •...

  • Page 106: X-I/O Module Connector List & Locations

    X-I/O Module Connector List & Locations X-I/O revision A2 DB37 female external signals connector. 16 pin header connector (interconnect to the X64 Xcelera-CL PX4 via supplied ribbon cable). J21, J22, J24, J28 Reserved. Connect PC power via floppy drive power cable.

  • Page 107: Board Installation

    Insert the X-I/O module into any free PCI slot (no PCI electrical connections are used), securing the bracket. • Connect the X-I/O module 16 pin ribbon cable from J23 to the X64 Xcelera-CL PX4 board J6. • Power on the computer again.

  • Page 108: Db37 Pinout Description

    Input #8 ( TTL ) OUT_TTL_3 TTL output 3 OUT_TTL_4 TTL output 4 OUT_TTL_5 TTL output 5 OUT_TTL_6 TTL output 6 OUT_TTL_7 TTL output 7 OUT_TTL_8 TTL output 8 106 • Appendix: X-I/O Module Option X64 Xcelera-CL PX4 User's Manual...

  • Page 109: Ttl Output In Npn Mode: Electrical Details

    Output 4 Output 5 Output 6 Output 7 Output 8 X-I/O Module • Each output can sink 700 mA. • Over-current thermal protection will automatically shut down the output device. Appendix: X-I/O Module Option • 107 X64 Xcelera-CL PX4 User's Manual...

  • Page 110: Ttl Output In Pnp Mode: Electrical Details

    Source driver with over-current protection (all outputs will shut down simultaneously). The over-current fault circuit will protect the device from short-circuits to ground with supply voltages of up to 35V. 108 • Appendix: X-I/O Module Option X64 Xcelera-CL PX4 User's Manual...

  • Page 111: Opto-Coupled Input: Electrical Details

    110) for standard TTL logic levels or industrial logic systems (typically 24 volts). The design switch points are as follows: • TTL level mode : trip point at 2V +/- 5% • Industrial level mode: trip point at 16V +/- 5% Appendix: X-I/O Module Option • 109 X64 Xcelera-CL PX4 User's Manual...

  • Page 112: X-I/O Module Sapera Interface

    • Programs • DALSA • X64 Xcelera-CL PX4 Device Driver • Device Manager). The Device Manager provides information on the installed X64 Xcelera-CL PX4 board and its firmware. With an X-I/O module installed, click on XIO Board – Information, as shown in the following figure.

  • Page 113: Using Sapera Lt General I/O Demo

    The demo will present to the user only the controls pertaining to the selected hardware. Run the demo via the windows start menu: (Start • Programs • DALSA • Sapera LT • Demos • General I/O Demo). The first menu presents a drop list of all installed Sapera Acquisition Devices with I/O capabilities.
  • Page 114 Enable box to activate the interrupt on an input. The Count box will tally detected input events. Use the Signal Event drop menu to select which input signal edge to detect. The Reset button clears all event counts. 112 • Appendix: X-I/O Module Option X64 Xcelera-CL PX4 User's Manual...

  • Page 115: Sapera Lt General I/O Demo Code Samples

    // direct read access to low-level Sapera C library capability to check // I/O Output module if (m_pGio[iDevice]->IsCapabilityValid(CORGIO_CAP_DIR_OUTPUT)) status = m_pGio[iDevice]->GetCapability(CORGIO_CAP_DIR_OUTPUT,&capOutput); // direct read access to low-level Sapera C library capability to // check I/O Input module if (m_pGio[iDevice]->IsCapabilityValid(CORGIO_CAP_DIR_INPUT)) Appendix: X-I/O Module Option • 113 X64 Xcelera-CL PX4 User's Manual...
  • Page 116 // The SapGio constructor is called for each resource found. m_pGio[iDevice] = new SapGio(location); // Creates all the low-level Sapera resources needed by the I/O object if (m_pGio[iDevice] && !*m_pGio[iDevice] && !m_pGio[iDevice]->Create()) DestroyObjects(); return FALSE; return TRUE; 114 • Appendix: X-I/O Module Option X64 Xcelera-CL PX4 User's Manual...
  • Page 117 // the pointer to pin state ( SapGio ::PinLow if low and SapGio ::PinHigh if high) status = m_pGio->GetPinState(iIO, &state); m_pGio->SetDisplayStatusMode(SapManager::StatusNotify, NULL); [ . . . ] [ . . . ] Appendix: X-I/O Module Option • 115 X64 Xcelera-CL PX4 User's Manual...
  • Page 118 = (CGioInputDlg*)pInfo->GetContext(); // We get the current count of I/O events strEventCount.Format("%d", pInfo->GetEventCount()); // We get the I/O pin number that generated an I/O event and apply the changes. pInputDlg->m_GioEventCount[pInfo->GetPinNumber()]++; 116 • Appendix: X-I/O Module Option X64 Xcelera-CL PX4 User's Manual...

  • Page 119: Dalsa Contact Information

    7075 Place Robert-Joncas Suite #142 St. Laurent, Quebec H4M 2Z2 Canada Tel: (514) 333-1301 Fax: (514) 333-1388 US Sales Office DALSA 700 Technology Park Drive Billerica, MA 01821 Tel: (978) 670-2000 Fax: (978) 670-2010 DALSA Contact Information • 117 X64 Xcelera-CL PX4 User's Manual...

  • Page 120: Technical Support

    Any support question or request can be submitted via our web site: Technical support form via our web page: http://www.imaging.com/support Support requests for imaging product installations, Support requests for imaging applications Camera support information http://www.imaging.com/camsearch Product literature and driver updates http://www.imaging.com/download 118 • DALSA Contact Information X64 Xcelera-CL PX4 User's Manual...

  • Page 121: Glossary Of Terms

    A value used to ensure data is stored without error. It is created by calculating the binary values in a block of data using some algorithm and storing the results with the data. Client Modification Instruction. A client requested engineering change applied to a DALSA board product to support either a non-standard function or custom camera.
  • Page 122 A Sapera data file format where there is no header information and that supports any Sapera buffer type. Refer to the Sapera Basic Modules Reference Manual “Buffer File Formats” section. RISC (Reduced Instruction Set Computer) A computer architecture that reduces chip complexity by using simpler instructions. 120 • Glossary of Terms X64 Xcelera-CL PX4 User's Manual...
  • Page 123 VIC files, contain all operating parameters related to the frame grabber board (i.e. what the frame grabber can actually do with camera controls or incoming video). Glossary of Terms • 121 X64 Xcelera-CL PX4 User's Manual...
  • Page 124 122 • Glossary of Terms X64 Xcelera-CL PX4 User's Manual...

  • Page 125: Index

    CamExpert 41, 47, 49 frame buffer 21, 48 CamExpert parameters 32 Frame Lost event 51 communication ports 9 Frame Sync 49 connector location 104 FRAME_RESET 48 Contiguous Memory 21 CORACQ_PRM_EXT_LINE_TRIGGER_DETECTIO N 92 Index • 123 X64 Xcelera-CL PX4 User's Manual...
  • Page 126 11, 19, 26, 28 transfer module 51 National Semiconductor 99 NPN mode 107 trigger 9, 47, 48 onboard memory 33, 76 user defined I/O state 103 USER_PWR 108 opto-coupled input specs 109 124 • Index X64 Xcelera-CL PX4 User's Manual...
  • Page 127 Windows HyperTerminal 16 Windows Logo testing 13 Windows operating system memory 21 workstation 11, 12 X64-CL serial port 16 X-I/O field installation 105 X-I/O module driver update 105 X-I/O module overview 103 Index • 125 X64 Xcelera-CL PX4 User's Manual...

Table of Contents

Save PDF
