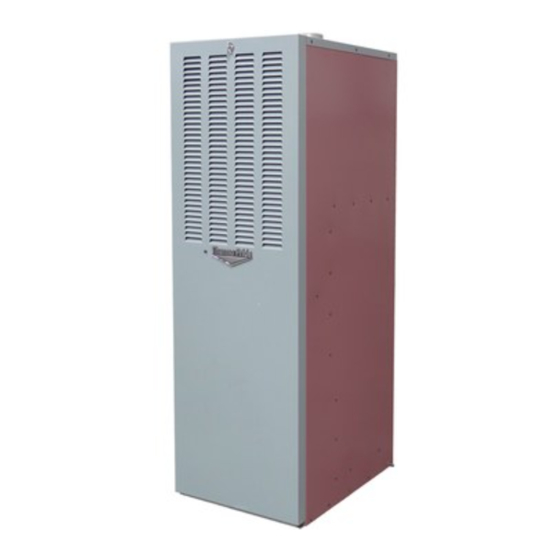

Thermo Pride OME Series Installation Instructions

Kit Includes – 2/1/2" diameter combustion air pipe
Roof Jack Transition
-
- 3" Diameter Flexible Hose
2 Radiator Clamps
-
- Trim Plate
Blower Pan Trim Plate
-
- Screws
3" Elbow
-
Rope gasket
-
Step 1: Carefully remove the OME back panel and set aside. The back panel screws need to be
removed as well as the back two screws, which hold the top in place. The flue draw collar and
trim plate will need removed too. This will allow the top to be pivoted upward and easy removal
of the back panel.
Step 2: The bottom air-side baffle will need removed to make room for the combustion air pipe. This
baffle will not be re-used.
Step 3: Remove the knockouts for the combustion air pipe in the front separator and the blower pan and
top.
Step 4: The combustion air pipe can be inserted into the top hole and then into the hole in the separator
panel. Secure with screws provided.
Step 5: Secure the top trim plate with screws provided and also the blower pan trim plate with rope
gasket.
Step 6: The back panel can be replaced and reattached following the steps in Step 1 in reverse.
Step 7: The Roof-Jack Transition can be affixed and sealed to the bottom of the roof jack at this time.
Seal and attaché the 3" metal elbow to the transition. Make sure that the horizontal tube and
elbow points to the back right corner. Make sure that all joints are sealed with hi-temp silicone
sealant.
Step 8: The OME can be placed on its base or cabinet in the closet or alcove at this time.
Step 9: Using the 3" flexible hose provided, connect the combustion air pipe to the roof jack transition.
Use only the length of flexible hose needed to bridge the distance in your installation. Try to
eliminate sags and kinks in the hose. Secure with the radiator clamps provided.
MO-489
ECN 5517-MA 180126
INSTALLATION INSTRUCTIONS FOR:
OME Roof Jack Combustion Air kit
