- Page 1 EVELINE MAX II MANUAL EV Expert Portable charger 22kW (for the European Union and Norway) USER MANUAL...
-
Page 2: Table Of Contents
CONTENT IMPORTANT SAFETY INSTRUCTIONS Charger components OLED Display EVELINE MAX II CHARGER SETTINGS Charging current settings Electrical network settings CHARGER CONNECTION END OF CHARGING AND DISCONNECTING THE CHARGER ERROR MESSAGES PROBLEM-SOLVING TECHNICAL SPECIFICATIONS EU DECLARATION OF CONFORMITY EVELINE MAX II warranty conditions... -
Page 3: Important Safety Instructions
➢ The portable charger contains an RCD-A-EV circuit breaker and therefore a residual current device is not necessary. ➢ The EVELINE MAX II portable charger is only designed for charging electric vehicles that support the IEC 62196-1 and IEC 61851-1 standard. Do not use it for other purposes or with other vehicles or objects. -
Page 4: Charger Components

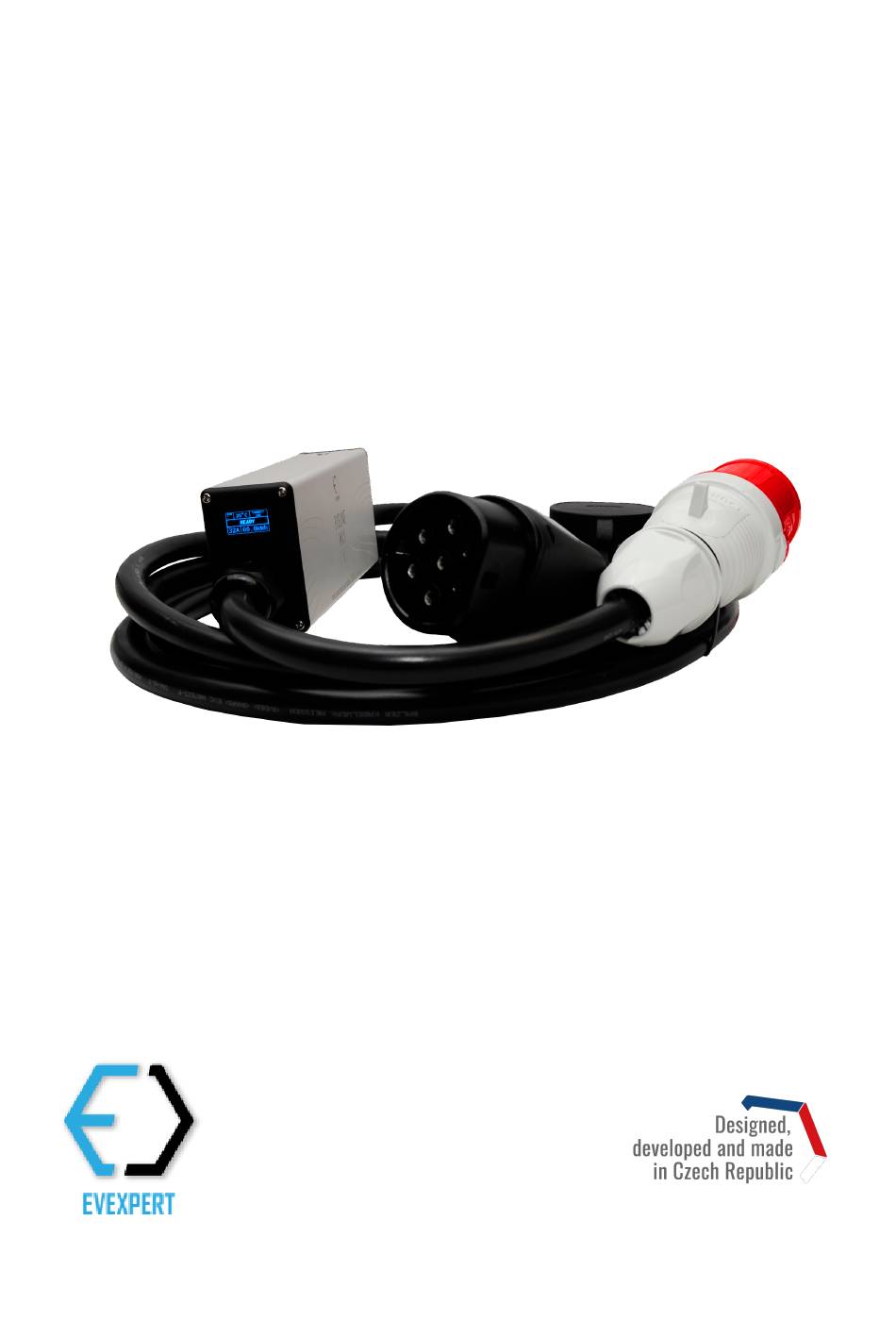

CHARGER COMPONENTS AND DISPLAY INFORMATION Charger components The EVELINE MAX II smart charger consists of: ➢ Phoenix charging cable 5 or 7 meters long ➢ Type 2 or 1 connector (for connection to the car) ➢ CEE industrial plug ➢ Charger body ■... -
Page 5: Eveline Max Ii Charger Settings
EVELINE MAX II CHARGER SETTINGS Charging current settings Before you start charging an electric car, it is important to set an adequate charging current limit to prevent the circuit breaker from tripping. Settings can only be made if the electric car is not connected. -
Page 6: Electrical Network Settings
If you are not using the charger outside of Europe, do not change the network settings and leave the default TN-S settings selected. The user is solely responsible for selecting the correct network. Incorrect settings can cause the RCD to malfunction. EV Expert s.r.o. | info@evexpert.eu | www.evexpert.eu Page... -
Page 7: Charger Connection
The display on the charger lights up and a diagnostic is performed, followed by a basic information window. After connecting the electric car, CHARGING starts and the total charging time and kW / h charged so far are displayed. EV Expert s.r.o. | info@evexpert.eu | www.evexpert.eu Page... -
Page 8: End Of Charging And Disconnecting The Charger
/ h and the total charging time. If the charger is not charging, it is possible to induce a complete overview of the charger’s history by pressing the control button for 5 seconds. EV Expert s.r.o. | info@evexpert.eu | www.evexpert.eu Page... -
Page 9: Error Messages
CURRENT LEVEL FAULT Overcurrent outlet Unplug the charger and wait until it cools OVERTEMPERATURE High temperature (over ≥ 80 ° C) down UNSUPPORTED Unsupported charging mode Change the charging mode CHARGING MODE EV Expert s.r.o. | info@evexpert.eu | www.evexpert.eu Page... -
Page 10: Problem-Solving
Check that the EVSE is not in direct sunlight, if so, put it in shade. If overheating occurs regularly, contact your dealer or EV Expert s.r.o. In case of persistent problems, contact EV Expert s.r.o. at info@evexpert.eu EV Expert s.r.o. | info@evexpert.eu... -
Page 11: Technical Specifications
AC < 30mA / DC < 6mA *The maximum current and charging time depend on the characteristics of the electric vehicle being charged. The charger may limit the charging current at high temperatures. EV Expert s.r.o. | info@evexpert.eu | www.evexpert.eu Page... -
Page 12: Eu Declaration Of Conformity
Portable charger EVELINE MAX II (the serial number printed on the body of each charger) is in conformity with the applicable requirements of the following directives:... -
Page 13: Eveline Max Ii Warranty Conditions
(including the trademark or serial number) of such EVELINE MAX II has been contaminated, altered, or removed. -
Page 14: Additional Provisions
3. To the extent that warranties relating to EVELINE MAX II are required under applicable law, such implied warranties will be limited in time to the Warranty Period to the extent permitted by applicable law. In states and... - Page 15 VAT ID: CZ05699711 Stupkova 18, 779 00 Olomouc Czech Republic For more information, visit our website: www.evexpert.eu or contact us at info@evexpert.eu...
