Specifications

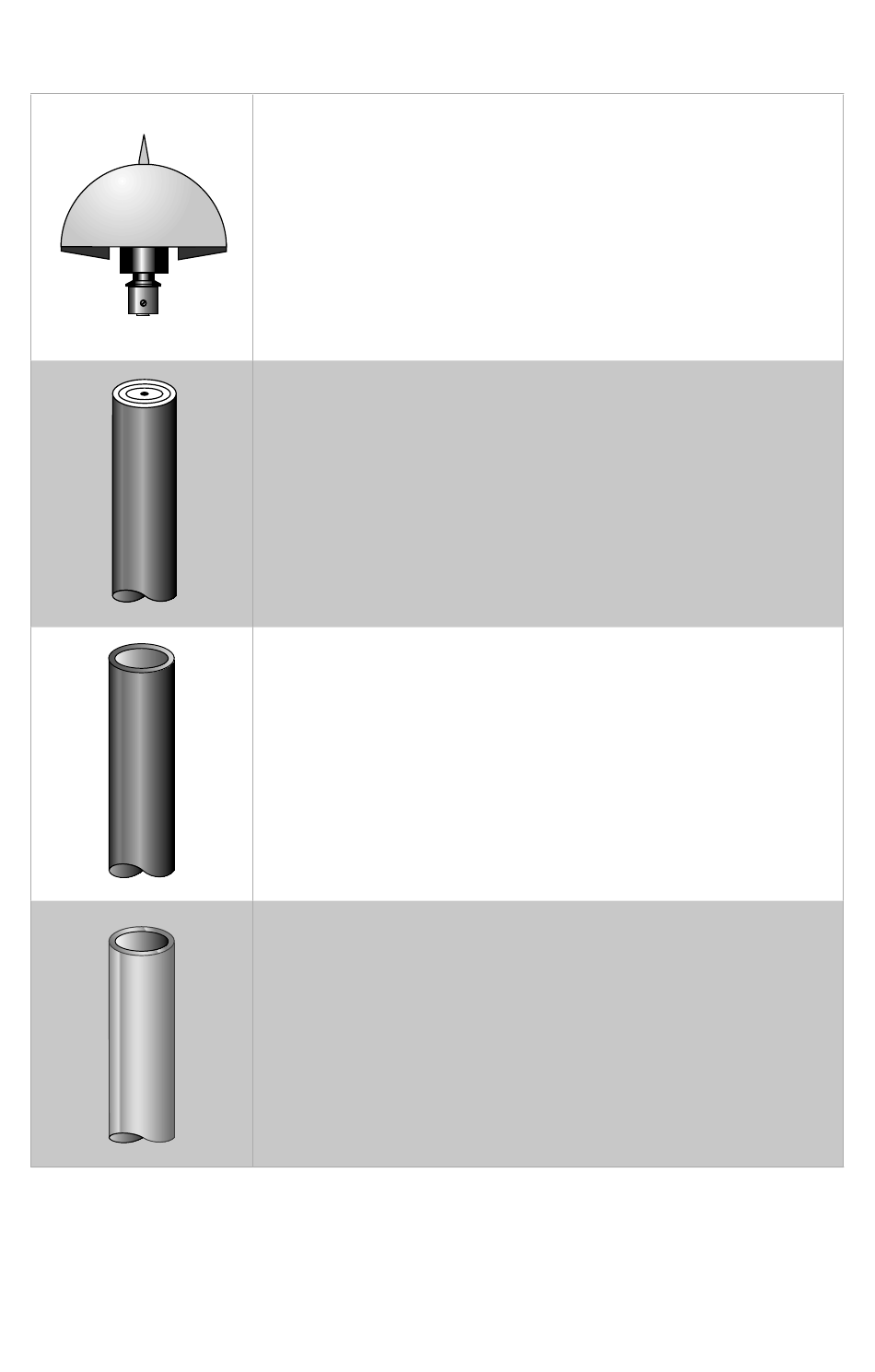

nVent ERICO Dynasphere Enhanced Terminal
Capture point of the nVent ERICO System 3000. Initiates an
upward leader during storm conditions to attract lightning
discharges over a greater radius than conventional protection.
Height:
Diameter:
Weight:
Color/Finish:
nVent ERICO Ericore downconductor
Purpose designed cables, using a copper 50 mm
main conductor to safely convey the lightning energy to ground,
while minimizing side flashing.
Diameter:
Weight:
FRP Mast
Purpose designed Fiberglass Reinforced Plastic, manufactured
from non-hydroscopic epoxy and glass laminate, provides an
insulated mast for mounting the Dynasphere.
Lengths:
Inside Diameter:
Outside Diameter:
Weight:
Color/Finish:
Aluminum Mast
Lightweight lower mast material.
Lengths:
Inside diameter:
Outside diameter:
Weight:
Available with or without mast base plate.
140 mm (5 ½ in.)
255 mm (10 in.)
2.8 kg (6 lbs.)
Brushed Stainless Steel
36 mm (1 ⁷⁄ ₁₆ in.)
1.2 kg / m
13 oz / ft.
2 m (81 ½ in.) & 4.6 m (187 ¾ in.)
60 mm (2 ⅜ in.)
68 mm (2 ¹¹⁄ ₁₆ in.)
2 m = 3.3 kg (7 ¼ lbs.)
4.6 m = 7.6 kg (16 ¾ lbs.)
Black
3, 4, 5 & 6 m
(122 ½, 163 ¼, 204 & 245 in.)
61.9 mm (2 ⁷⁄ ₁₆ in.)
69.9 mm (2 ¾ in.)
2.4 kg / meter
(1/0 AWG)
2
