RaycoWylie i3500 Quick Start Manual

Display box
Hide thumbs Also See for i3500:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

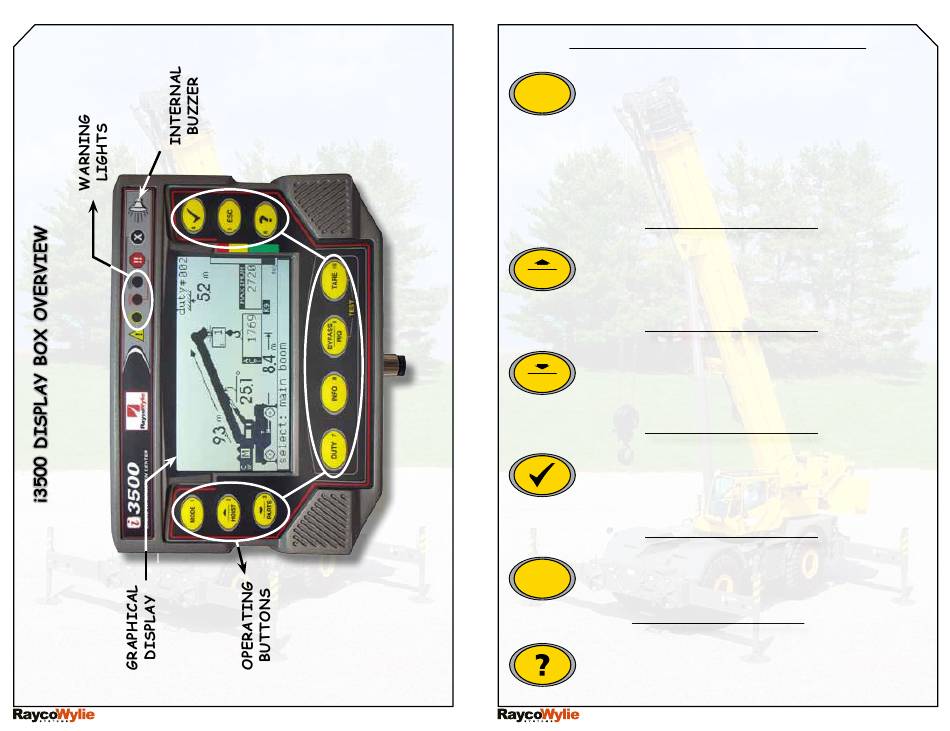

WYLIE's I3500 QuICk REfEREnCE shEEt
55M3500AQE-C
WYLIE's I3500 QuICk REfEREnCE shEEt
MODE
HOIST
PARTS
4
ESC
5
6
Page 1
operating buttons presentation
MODE BUTTON : Shows system's modes. Press
1
this button to choose one of these operating
modes:
-Normal mode
-Limits Setting or Range Limiting mode
-System Set Up mode
-Diagnostic mode
-Calibration mode (password protected).
Hoist / sCroLL up button : shows hoist menu
for selection of the hoist currently in use. Also
2
used to scroll up in menus or increase editable
values.
PARTS / SCROLL DOWN BUTTON : Shows parts
of line (falls) menu for selection of the number of
3
parts currently in use. Also used to scroll down in
menus or decrease modifiable values.
SELECT BUTTON : Used to select a highlighted
item in a menu. In normal mode, use this button
to select the information displayed in one of the
pull down menus.
ESCAPE BUTTON : Used to close a menu or cancel
the modification of a value. Push it several times
to return to normal mode.
HELP BUTTON : This button will show the problem
source when a fault is detected by the system.
Push it to see a description of the problem.
55M3500AQE-C
Page 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i3500 and is the answer not in the manual?

Questions and answers

Related Manuals for RaycoWylie i3500

Summary of Contents for RaycoWylie i3500

  • Page 1 WYLIE’s I3500 QuICk REfEREnCE shEEt 55M3500AQE-C WYLIE’s I3500 QuICk REfEREnCE shEEt 55M3500AQE-C operating buttons presentation MODE BUTTON : Shows system’s modes. Press MODE this button to choose one of these operating modes: -Normal mode -Limits Setting or Range Limiting mode...
  • Page 2 WYLIE’s I3500 QuICk REfEREnCE shEEt 55M3500AQE-C WYLIE’s I3500 QuICk REfEREnCE shEEt 55M3500AQE-C operating buttons presentation DUTy BUTTON : Shows the menu for the selection of the duty by number or by crane configuration. DUTY Press this button to enable the selection of crane parameters like the boom length, the head type, and the counterweight.

  • Page 3: Warning Lights And Indicators

    WYLIE’s I3500 QuICk REfEREnCE shEEt 55M3500AQE-C WYLIE’s I3500 QuICk REfEREnCE shEEt 55M3500AQE-C Warning LigHts anD inDiCators The approach warning light blinks when the load on the hook Approach Overload motion is between 85% and 99.9% of the rated capacity. This is...
  • Page 4 This indicator appears on the top-left corner warning light will blink and the internal buzzer will sound on of the i3500 lcd screen as soon as at least one and off. If you have reached a predetermined maximum radius preset limt is active on the system. This is not a warning! It is...

  • Page 5: System Configuration

    55M3500AQE-C Hoist seLeCtion poWer on Switch on the electrical supply (ie. crane key switch) to the i3500 This button allows the operator to select the hoist system. The indicator now performs a «self test» during which used. The operator can see the hoist selected on...

  • Page 6: System Test

    57 instead of having to choose the correct parameters the hook on the on the i3000 screen. individually. Look up the crane duty number to be used on the i3500 duty list. The i3500 duty list is a plasticated sheet of paper and Parts it must be stored in the operator’s cab for duty selection purpose.

  • Page 7: Restricted Area

    WYLIE’s I3500 QuICk REfEREnCE shEEt 55M3500AQE-C WYLIE’s I3500 QuICk REfEREnCE shEEt 55M3500AQE-C range Limiting option Limit HigH 1- Access the range limiting mode (see bottom of page 13). 2- «limit high» is highlighted by default. Push button #4 to confirm your choice.
  • Page 8 WYLIE’s I3500 QuICk REfEREnCE shEEt 55M3500AQE-C WYLIE’s I3500 QuICk REfEREnCE shEEt 55M3500AQE-C free Zone VariabLe Limit HeigHt 1- Access the range limiting mode (see bottom of page 13). 1- Access the range limiting mode (see bottom of page 13). 2- Use the down (#3) button to highlight «variab.limit 2- Use the down (#3) button to highlight «free zone»...
  • Page 9 WYLIE’s I3500 QuICk REfEREnCE shEEt 55M3500AQE-C VariabLe Limit raDius 1- Access the range limiting mode (see bottom of page 13). 2- Use the down (#3) button to highlight «variab.limit radius». 3- Push button #4 to confirm your choice. 4- Rotate the crane to the first limit position (first wall).
