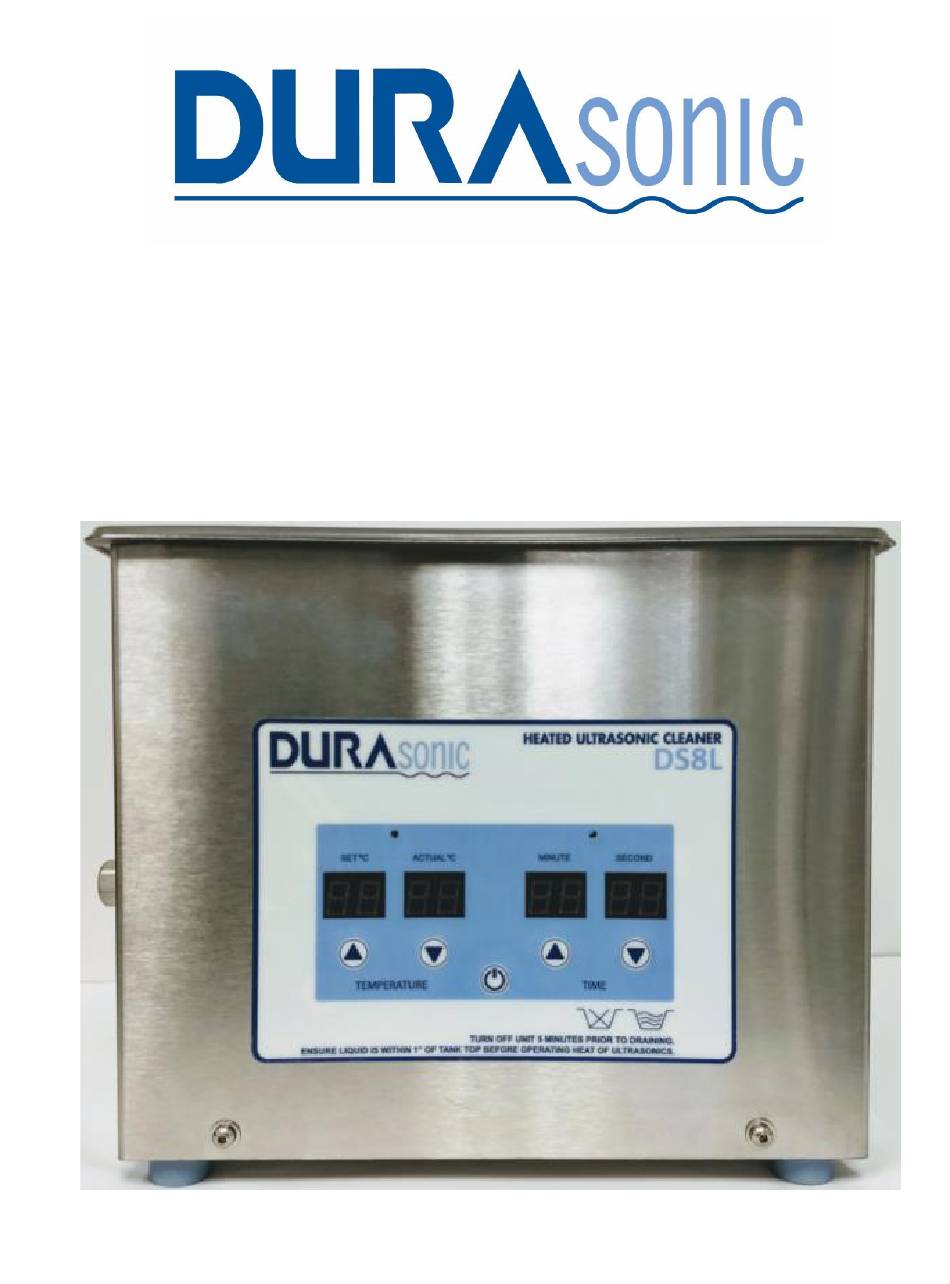

- Page 1 Ultrasonic Cleaners User Manual for 6L and 8L XPD Series...
-
Page 2: Warranty
Warranty DURAsonic Ultrasonic Cleaners, when used in accordance with manufacturer's instructions and under normal use, are guaranteed for one year parts and labor and an additional year of parts only. Within the period guaranteed, manufacturer will repair or replace free of charge, at its sole discretion, all parts that are defective because of material or workmanship, not including costs for removing or installing parts. -
Page 3: Table Of Contents
Table of Contents Warranty ............................... 2 Safety Precautions ............................4 Introduction ..............................5 Ultrasonic Cleaners ........................... 5 Optional Accessories for Your Cleaner...................... 5 Unpacking Your Cleaner ..........................5 Installing Your Cleaner ..........................5 Equipment Specifications ..........................6 How Ultrasonics Work ..........................6 What is Ultrasonic Cleaning Technology? .................... -
Page 4: Safety Precautions
Safety Precautions Before using your Ultrasonic Cleaner, please read and thoroughly understand these safety precautions. Failure to follow them may result in serious personal injury or property damage. To avoid electrical shock: • Unplug from power source before filling or emptying the tank. •... -
Page 5: Introduction
Introduction Ultrasonic Cleaners These XPD-Series line of ultrasonic cleaners includes four models with sizes ranging from 11 to 30 liter. Each model is constructed using durable industrial style 32/40 kHz transducers. These provide increased cleaning power along with built in sweep frequency to ensure uniform cleaning activity throughout the bath. -
Page 6: Equipment Specifications
Equipment Specifications Heat (w/ Ultrasonic U.S. Tank Unit Dimensions Tank Dimensions Power Warranty Temp Frequency Weight Power (L x W x H) (L x W x H) Capacity Supply Control) (Watts) AC 100 ~ 14” x 7” x 12.5” 12” x 6” x 6” 6 Liter 1yr parts/labor 120v, 50 /... -
Page 7: How Can Sound Waves And Ultrasonic Cavitations Clean
How Can Sound Waves and Ultrasonic Cavitations Clean? When a sound wave travels through fluid, it stretches and compresses the fluid to transmit sound. When the sound wave's amplitude increases to a threshold level, when the fluid cannot hold the “stretch” of the sound wave, the sound wave energy literally tears the water apart and vacuum bubbles are formed. -
Page 8: Before You Start Cleaning
Before You Start Cleaning CAUTION! • Do not place parts or containers directly on the bottom of the cleaning tanks; use a tray or wire to suspend items. • Do not allow the solution to drop more 1 ½” from top of tank. •... -
Page 9: Operating Your Cleaner
Operating Your Cleaner If this is the first time you are using the cleaner, please read this whole section before operating your cleaner! 1. Plug in your machine and flip on the On/Off control switch in the back of the unit. 2. -
Page 10: Draining Your Cleaner
Draining Your Cleaner Warning Do not immerse the cleaner in water. Unplug the cleaner from the power source. 2L, 3L, 4L, and 6L models do not have a drain. To empty, use the side of the rim to pour the used solution into a waste disposal unit, rinse the tank thoroughly and refill with new solution. -
Page 11: Application Hints
Heat - increases the chemical activity of cleaning solutions. Surface tension - can be reduced by adding solution to the bath. Reduced surface tension will increase cavitation intensity and enhance cleaning. Solvents - never use solvents. Vapors of flammable solutions will collect under the cleaner, where ignition is possible from electrical components. -
Page 12: Cleaning Methods
Cleaning Methods There are two methods of cleaning - direct and indirect. Each has advantages and disadvantages. When in doubt, run test samples using both methods to decide which one produces the best results for you. Direct method ➢ Items in perforated insert tray ➢... -
Page 13: Solution Types
Solution Types Water-based solutions are either slightly acidic or alkaline. They include detergents, soaps and industrial cleaners designed to remove specific soils. Acidic water-based solutions: remove rust, tarnish or scale. They range from mild solutions that remove tarnish, to concentrated, and inhibited acidic solutions that remove investment plaster, milk-stone, zinc oxide and rust from steel and cast iron as well as smut and heat-treat scale from hardened steel. - Page 14 Acetophenone Chloric Acid Hydrofluosilicic Acid Aluminum Chloride Chlorine, Anhydrous Iodoform Aluminum Fluoride Chromic Acid Mercuric Chloride Aluminum Sulphate Copper Chloride Muriatic Acid Ammonium Bifluoride Copper Fluoborate Phosphoric (crude) Ammonium Chloride Ethyl Chloride Sodium Hypochlorite Ammonium Hydroxide Ferric Chloride Potassium Chloride Amyl Chloride Ferrous Chloride Stannic Chloride...
- Page 15 Problem Cause Solution Cleaner will not start Cleaner not plugged in properly Plug into functioning electrical outlet. Rear power switch not in on position. Press power switch ON. Lose Bad touch pad panel. Contact factory. Digital timer - Start button Contact factory.
- Page 16 Problem Cause Solution Cleaner operates but Interrupted calibration Press SET DISPLAY. display does not sequence. function. Timer board malfunctions. Call nearest authorized service touchpad panel. center. Decreased ultrasonic Solution is not degassed. Make sure that tank was filled activity. with warm tap water plus cleaning solution and has run 5-10 minutes.
-
Page 17: Service Information
If you find that your cleaner needs repair, carefully pack and return it to Duraline Systems, Inc. If under warranty, remember to include proof of purchase. Your cleaner will be shipped by ground service unless you specify otherwise. Technical Support Duraline Systems, Inc. 39 Western Highway West Nyack, NY 10994 Sales: 877-561-0500...
