Madel FOK-EIS-180-MF Series Manual

M A D E L
• The fire dampers FOK-EIS-180 work as a separator
between two sectors of fire and ensure the same fire
resistance that the structural elements of
compartmentalisation, which limits the risk of spreading
of fire by interior of the building.
• FOK-EIS-180 fire dampers are according with the
following standards:
European Test Standard, EN 1366-2
(Fire resistance tests for service installations –
Part 2: Fire dampers)
European Classification Standard, EN 13501-3
(Fire classification of construction products and building
Part 3: Classification using data from fire resistance tests on
products and elements used in building service installations:
fire resisting ducts and fire dampers
European Standard for CE Marking, EN 15650
(Ventilation for buildings. Fire dampers)
European Test Standard, EN 60529:1991
(Degrees of protection provided by enclosures (IP Code))
European Test Standard EN 1751
(Ventilation for buildings – Air terminal devices –
Aerodynamic testing of dampers and valves)
International Test Standard ISO 10294-4
(Fire resistance tests – Fire dampers for air distribution systems
Part 4: Test of thermal release mechanism)
01/19
â

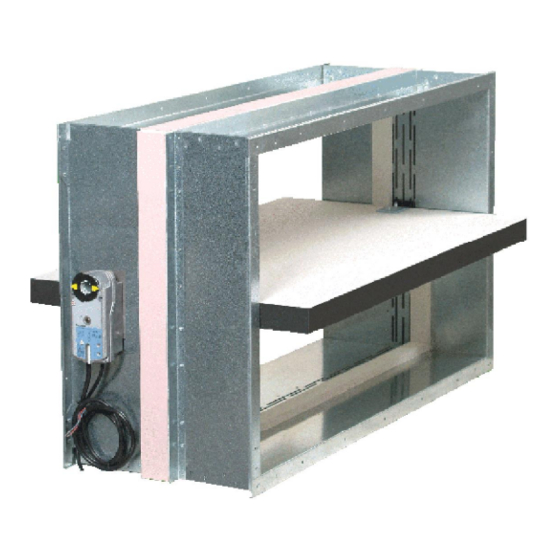

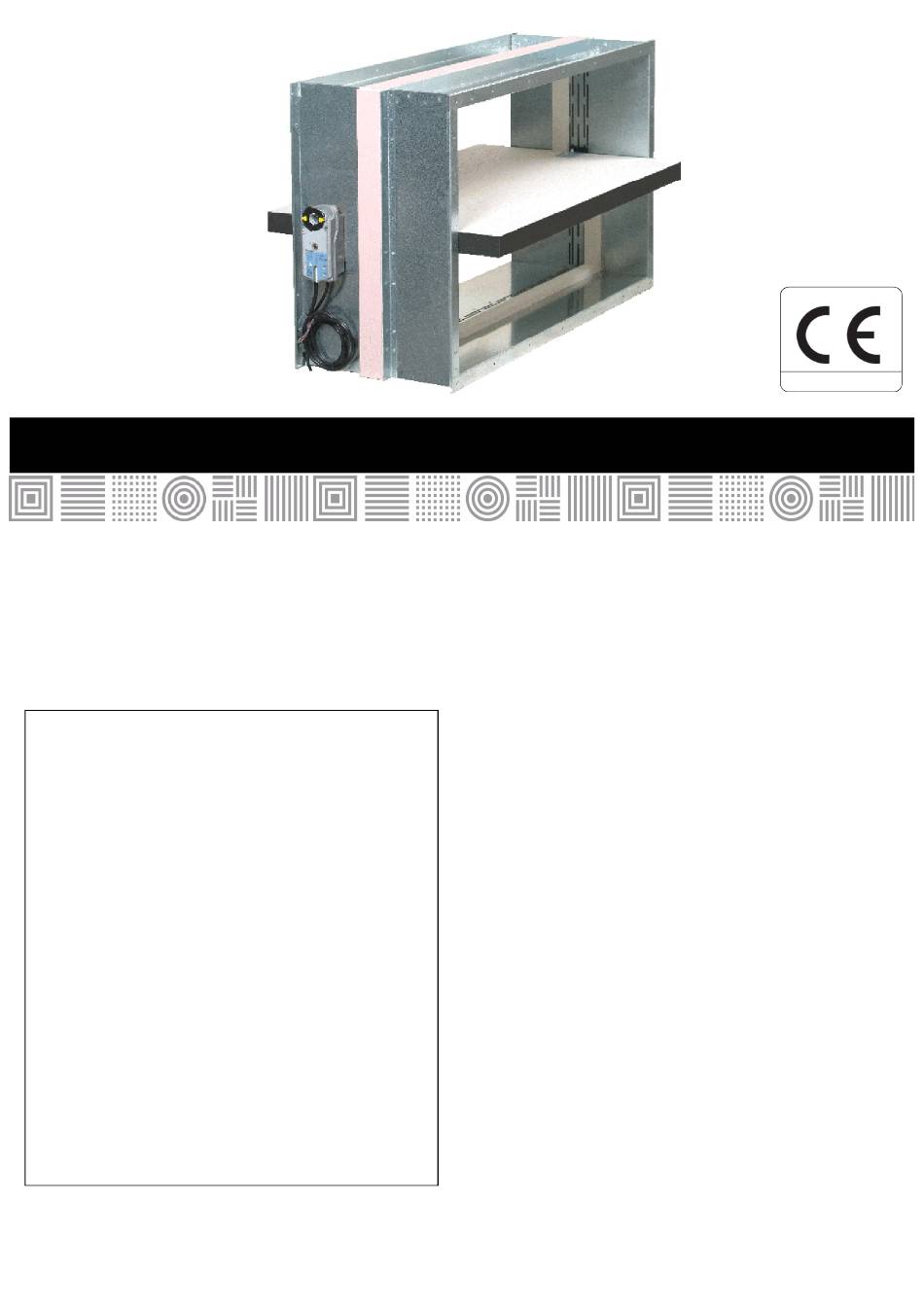

FOK-EIS-180 Fire dampers CE
elements –
)
• The casing is made of galvanised steel, and joined by
clinching system (cold forming the material).
• It incorporates a solid perimeter frame to facilitate the
sealing between the fire damper and support
construction.
• The housing is made from galvanized steel. It has a
symmetrical design that allows wall mounting
regardless of air flow.
• The blade is made of ceramic material resistant to
high temperatures and abrasion.
•These dampers meet the conditions required for the
symbol (S) to cold smoke seal.
• The airtightness to the passage of cold smoke is
achieved through a joint between the perimeter of the
housing and the blade.
• For high temperatures, the damper is equipped with
an expanding intumescent seal, forming a paste that
prevents the passage of hot air and smoke from one
side of the damper to another.
• The operating devices of the dampers is automatic
shooting by means of a thermal fuse calibrated at 72°C
to activate the closure when reaches that temperature.
Reset is manual except for motorized dampers.
EN 15650:2010
1
