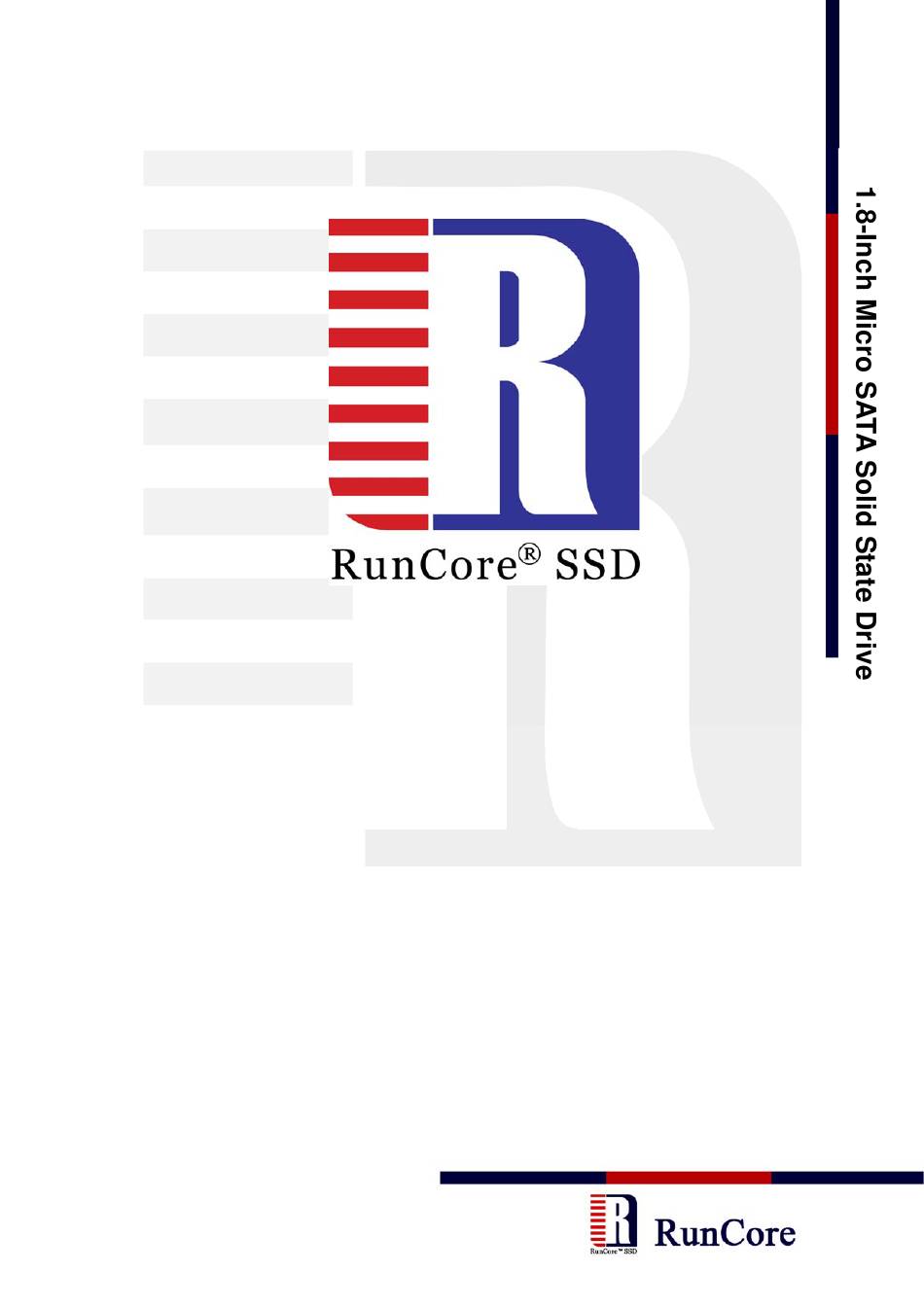

- Page 1 RunCore Pro IV 1.8” Micro SATA Solid State Disk Product Manual Version 1.2 JUN, 2010...
- Page 2 Revision History Version #Number Description Date Version 1.0 Original Release Oct 2009 Version 1.1 Addition of some items at Part Numbering June 2010 Scheme Version 1.2 Remove warranty year in specification table, July 2010 customer needs to refer on the Warranty Policy document for more details.
-
Page 3: Table Of Contents
Table of Contents I. General Description ....................4 1. Product Image ..................... 4 2. Typical Applications ................... 4 II. Key Features ......................5 III. Specifications ......................5 1. Specification Summary ..................5 2. Device Certifications ..................6 3. Electrical Requirements ..................6 3.1 Supply Voltage ................... -
Page 4: General Description
I. General Description RunCore Pro IV 1.8" Micro SATA SSD (Solid State Drive) is a high performance and high reliability storage based on advanced flash controller and NAND Flash technology. It has a higher performance in read/write rate than mechanism hard drive. Furthermore, its characteristics of low power consumption and anti-vibration are notable. -
Page 5: Key Features
II. Key Features (Flash Management) Bad block management Dynamic and static wear-leveling Defect management to extend NAND Flash life cycle Sudden power-off recovery III. Specifications 1. Specification Summary 〞 Table 1 1.8 Micro SATA SSD Specification Interface 1.8”Micro SATA Dimension 78mm×54mm×5mm Physical Capacity... -
Page 6: Device Certifications
2. Device Certifications Table 2 Certifications Certification/Compliance Description Indicate conformity with the essential health and safety CE Compliant requirements set out in European. Directives Low Voltage Directive and EMC directive. FCC Certified Federal Communications Commission Certified RoHS Compliant Restriction of Hazardous Substance Directive 3. -
Page 7: Block Diagram
IV. Block Diagram 〞 Figure 1 1.8 Micro SATA SSD Block Diagram... -
Page 8: Physical Dimensions
V. Physical Dimensions 〞 Figure 2 1.8 Micro SATA SSD Physical Dimension 〞 Table 5 1.8 Micro SATA SSD Physical Dimension Dimension Millimeter Inch 78±0.25 3.071±0.010 54±0.25 2.126±0.010 5±0.25 0.197±0.010... -
Page 9: Pin And Signal Description
VI. Pin and Signal Description This section identifies the pin locations and signal descriptions of the RunCore High Performance SSD. Figure 3 Micro SATA Structure Diagram Table 6 Micro SATA Pin Assignment and Description Signal Name Description mate Differential signal pair A... -
Page 10: Command Sets
VII. Command Sets 1. ATA Commands The RunCore 1.8＂Micro SATA SSD supports all the mandatory ATA commands defined in the ATA/ATAPI-7 specification. Table 7 Supported ATA Command Lists Command Command Command Name Command Name Code (Hex) Code (Hex) CHECK POWER... - Page 11 SMART DISABLE READ DMA B0h/D9h OPERATIONS SMART ENABLE READ DMA EXT B0h/D8h OPERATIONS READ FPDMA SMART ENABLE/DISABLE B0h/D2h QUEUED ATTRIBUTE AUTOSAVE SMART ENABLE/DISABLE READ LOG EXT B0h/DBh AUTOMATIC OFF-LINE SMART EXECUTE OFF-LINE READ MULTIPLE B0h/D4h IMMIDIATE READ MULTIPLE EXT SMART READ DATA B0h/D0h READ NATIVE MAX SMART READ LOG...
-
Page 12: Smart Subcommand Sets
2. SMART Subcommand Sets In order to select a subcommand the host must write the subcommand code to the device's Features Register before issuing the SMART function set command. The subcommands are listed below. Table 8 SMART Subcommand Sets Command Command Code (Hex) SMART READ DATA SMART ENABLE/DISABLE ATTRIBUTE AUTOSAVE... -
Page 13: Part Numbering Scheme
VIII. Part Numbering Scheme Please refer to PN naming Rule Guideline for more specific identification of product. IX. Related Documentation For more information, visit www.runcore.com or contact support@runcore.com. X. Contact Us Add：2nd Floor No.2 Building No.39 3rd Road, Hangzhou Economic & Technological Development Area, Hangzhou, P.R.China TEL：+86-0571-28139200/201...
