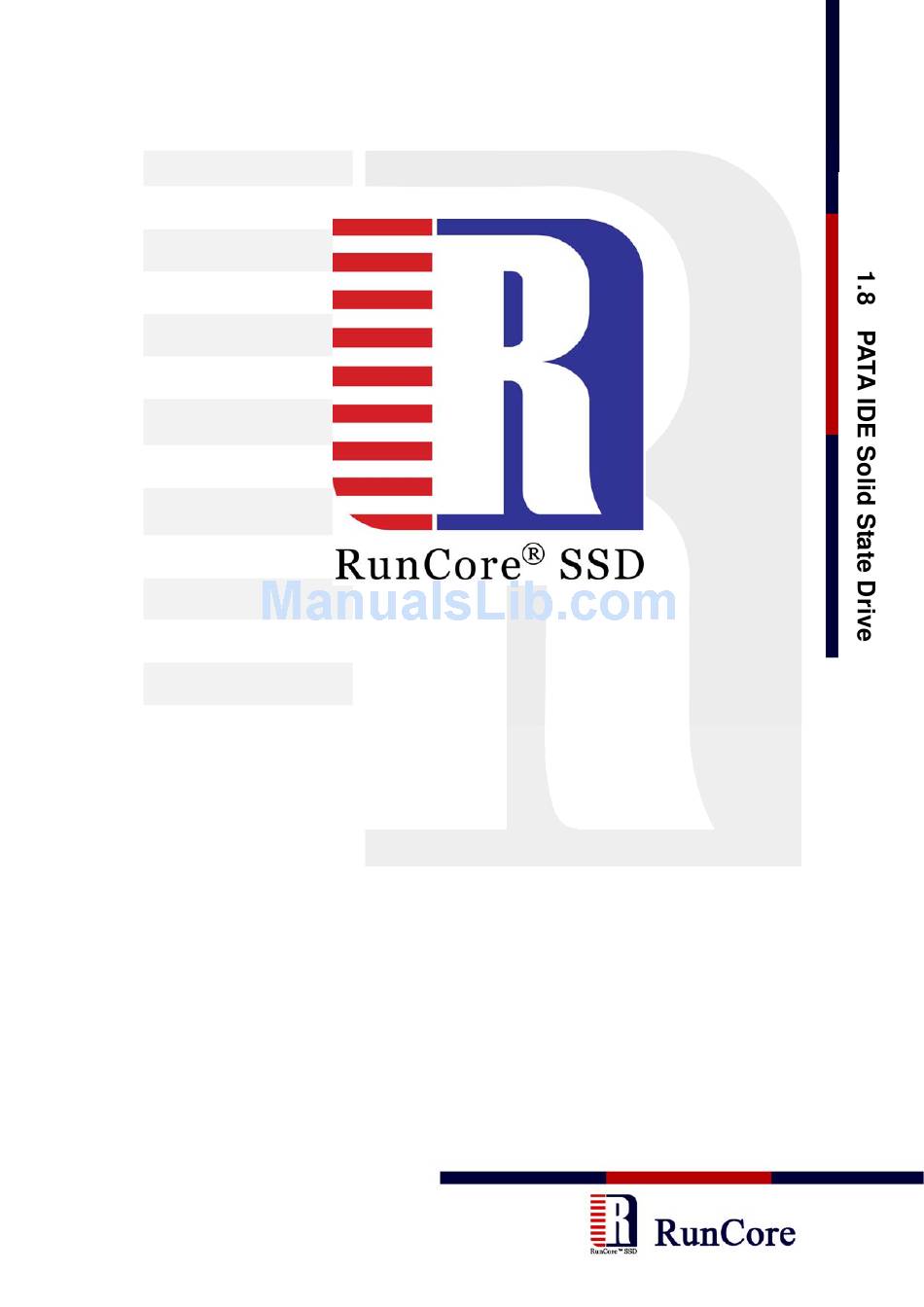

- Page 1 〞 RunCore Pro IV 1.8〞PATA IDE Solid State Disk Product Manual Version 1.2 JUL, 2010...
-
Page 2: Revision History
Revision History Version #Number Description Date Version 1.0 Original Release Oct 2009 Version 1.1 Addition of some items at Part Numbering June 2010 Scheme Version 1.2 Remove warranty year in specification table, July 2010 〞 customer needs to refer on the Warranty Policy document for more details. -
Page 3: Table Of Contents
Table of Contents I. General Description ..................4 1. Product Image ..................4 2. Typical Applications ................4 〞 II. Key Features....................5 III. Specifications ....................5 1. Specification Summary ................ 5 2. Device Certifications ................6 3. Electrical Requirements ................. 6 3.1 Absolute Maximum Rating ............. -
Page 4: General Description
〞 of low power consumption and anti-vibration are notable. RunCore Pro IV 1.8" IDE SSD has standard 44-pin IDE/ATA interfaces. The product is fully ATA-7 compliant and conform to the same mechanical and mounting requirements as standard rotating disk drives, which supports all major operating systems such as Windows9X/Me/NT/XP/CE/Vista/Windows7, MAC, Linux and Unix, Solaris, Vxworks. -
Page 5: Key Features
II. Key Features Bad block management 〞 Dynamic and static wear-leveling Defect management to extend NAND Flash life cycle Sudden power-off recovery III. Specifications 1. Specification Summary 〞 Table 1 1.8 PATA SSD Specifications Interface PATA / IDE Dimension 70mm×60mm×7mm Physical Capacity 32GB～128GB... -
Page 6: Device Certifications
2. Device Certifications Table 2 Certifications Certification/Compliance Description 〞 Indicate conformity with the essential health and safety CE Compliant requirements set out in European. Directives Low Voltage Directive and EMC directive. FCC Certified Federal Communications Commission Certified RoHS Compliant Restriction of Hazardous Substance Directive 3. -
Page 7: R/W Performance
4. R/W Performance ① Table 5 Read/Write Performance 〞 ATTO Disk Bench Capacity Read (MB/s) Write (MB/s) 32GB 64GB 128GB ① Flash Media Type: MLC IV. Block Diagram 〞 Figure 1 1.8 IDE SSD Block Diagram... -
Page 8: Interface
V. Interface 〞 1. Support mode The SSD interface complies with ATA-2/ATA-3/ATA-4/ATA-5/ATA-6/ATA-7 and supports the following data transfer mode. 1．Ultra DMA mode: 0、1、2、3、4、5、6 2．DMA mode: 0、1、2 3．PIO mode: 0、1、2、3、4 2. Pin Assignment and Description The following diagram identifies the connector of RCP-IV-P18XX-C. Master Setting No Jumper (Default) Slave Setting... - Page 9 DB10 DB11 〞 DB12 DB13 DB14 DB15 [KEY] DMARQ -DIOW -DIOR IORDY CSEL -DMACK INTRQ -IOCS16 -PDIAG -CS0 -CS1 -DASP...
-
Page 10: Physical Dimensions
VI. Physical Dimensions 〞 Figure3 shows the exterior dimensions of the 1.8-inch form factor with the relative dimensions of the mounting holes. Careful attention should be made to the length of the mounting screws and the recommended torque to prevent damage to the SSD. 〞... -
Page 11: Command Sets
VII. Command Sets 1. ATA Commands 〞 The RunCore 1.8＂IDE SSD supports all the mandatory ATA commands defined in the ATA/ATAPI-7 specification. Table 8 Supported ATA Commands Command Command Command Name Command Name Code (Hex) Code (Hex) CHECK POWER E5h or 98h... - Page 12 SMART DISABLE READ DMA B0h/D9h OPERATIONS SMART ENABLE READ DMA EXT B0h/D8h OPERATIONS READ FPDMA SMART ENABLE/DISABLE 〞 B0h/D2h QUEUED ATTRIBUTE AUTOSAVE SMART ENABLE/DISABLE READ LOG EXT B0h/DBh AUTOMATIC OFF-LINE SMART EXECUTE OFF-LINE READ MULTIPLE B0h/D4h IMMIDIATE READ MULTIPLE EXT SMART READ DATA B0h/D0h READ NATIVE MAX...
-
Page 13: Smart Subcommand Sets
2. SMART Subcommand Sets In order to select a subcommand the host must write the subcommand code to the device's Features Register before issuing the SMART function set command. The 〞 subcommands are listed below. Table 9 SMART Subcommand Sets Command Command Code (Hex) SMART READ DATA... -
Page 14: Part Numbering Scheme
〞 Please refer to PN naming Rule Guideline for more specific identification of product. IX. Related Documentation For more information, visit www.runcore.com or contact support@runcore.com. X. Contact Us Add：2nd Floor No.2 Building No.39 3rd Road, Hangzhou Economic & Technological Development Area, Hangzhou, P.R.China TEL：+86-0571-28139200/201...
