Page 1: Table Of Contents

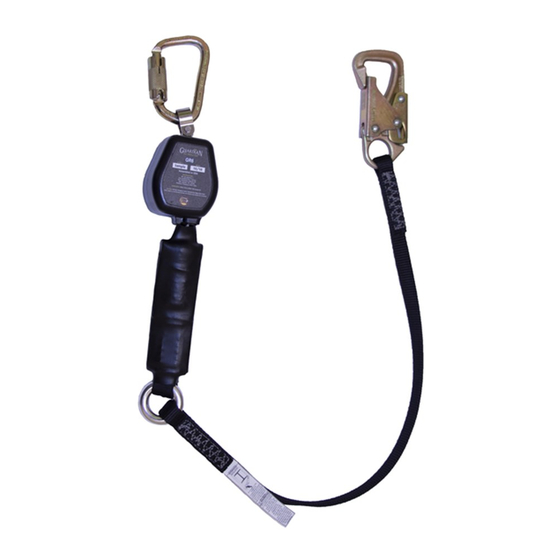

Product Name: GR6 Tie-Back SRL Part #: 32015; 32016 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment! Introduction Applicable Safety Standards Worker Classifications Product Specific Applications Limitations 2 - 3 Components and Specifications... -
Page 3: Introduction
Introduction Thank you for purchasing a Guardian Fall Protection GR6 Tie-Back SRL. This manual User Information must be read and understood in its entirety, and used as part of an employee training program as required by OSHA or any Date of First Use: applicable state agency. -
Page 4: Product Specific Applications
Product Specific Applications Use of equipment in unintended applications may result in serious WARNING injury or death. Maximum 1 attachment per connection point. Personal Fall Arrest: GR6 Tie-Back SRL may be used to support a MAXIMUM 1 PFAS for use in Fall Arrest applications. - Page 5 Compatibility: When making connections with GR6 Tie-Back SRL, eliminate all possibility of roll-out. Roll-out occurs when interference between a hook and the attachment point causes the hook gate to unintentionally open and release. All connections must be selected and deemed compatible with GR6 Tie-Back SRL by a Competent Person.
-
Page 6: Components And Specifications
- Maximum deceleration distance: 44”. - Minimum fall clearance: 5.5’ - Minimum fall clearance: 9’2”. Part # Description 32015 GR6 Tie-Back 6’ Single Leg SRL w/Steel Snap Hook 32016 GR6 Tie-Back 6’ Dual Leg SRL w/Steel Snap Hook Connection Point... -
Page 7: Installation And Use
Installation and Use • Guardian Fall Protection GR6 Tie-Back SRLs MUST NEVER be used in Leading Edge (LE) applications. • ALWAYS avoid lifeline contact with sharp or abrasive edges and surfaces, both during use and in event of a fall. - Page 8 C) Attach GR6 Tie-Back SRL housing to harness dorsal D-ring with compatible carabiner. For dual leg unit, attach by passing bracket locking bar through web loop immediately beneath harness dorsal D-ring as shown. Ensure bracket is fully closed and locked prior to use; green indicator must be fully visible. Locking bar inserted through harness webbing under dorsal D-ring...
- Page 9 Standard: A) Attach GR6 Tie-Back SRL housing either to harness dorsal D-ring or to compatible overhead anchorage connector with compatible carabiner. To locate housing at harness, connect single leg unit to dorsal D-ring with compatible carabiner, and for dual leg unit attach by passing bracket locking bar through web loop immediately beneath harness dorsal D-ring as shown.
-
Page 10: Maintenance, Cleaning, And Storage
Maintenance, Cleaning, and Storage If GR6 Tie-Back SRL fails inspection in any way, immediately remove it from service, and contact Guardian to inquire about its return or repair. Cleaning after use is important for maintaining the safety and longevity of GR6 Tie-Back SRL. Remove all dirt, corrosives, and contaminants from GR6 Tie-Back SRL before and after each use. -
Page 11: Safety Information
Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. -
Page 12: Labels
Labels GR6 Tie-Back LOT #: PART #: DOM: 32015 Assembled in USA SPECIFICATIONS: Avg. arresting force: 1,350 lbs. Webbing: 6’ HMPE, 25/32" width. Anchor point at/above D-ring: Anchor point below D-ring (2’ max.): Max. deceleration distance: 24” Max. deceleration distance: 44”...
