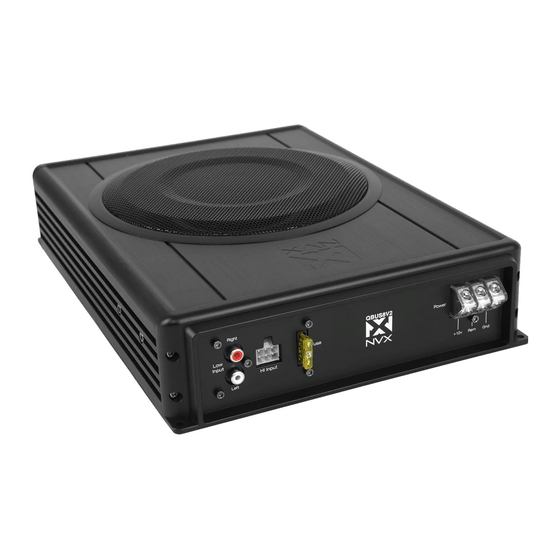

- Page 1 QBUS8V2 8 inch Super Compact Bass Enclosure User's Manual...
-
Page 2: Front Panel Controls And Features
Front panel controls and features ⑧ ⑦ ⑥ ⑤ ④ ③ ② ① ① If the rest of your system is weak on REMOTE LEVEL CONTROL PORT the mids, you may wish to set this Attach the included remote level control relatively high. -
Page 3: Rear Panel Controls And Features
Rear panel controls and features ④ ③ ② ① POWER TERMINALS LOW LEVEL RCA INPUTS Low level inputs are the recommended way to introduce the audio signal to the FUSE subwoofer if RCA outputs are present The fuse provides protection for the on your head unit or other signal circuitry.If a fault occurs and you source (such as a sound processor). -
Page 4: Low Level Input Wiring
Low Level Input Wiring Low-level (RCA) input wiring is preferred for best audio performance. Most trunk or hatchback installations will require a 15-20 feet RCA cable, while pickup trucks and under-seat installations will require a 6-12 feet RCA cable. Always use a high quality cable. -
Page 5: Power Connections
Power Connections Connect the ground terminal to the closest point on the chassis of the vehicle. Keep this ground wire to less than 39" (100 cm) in length. Use 8 gauge (or heavier) wire. Connect the remote terminal to the remote output of head unit using 16 gauge ( or heavier ) wire. -
Page 6: Remote Level Control Connection
Remote Level Control Connection Install the remote control securely under the dash or in a similar location where using it will not distract the driver. Remote Level Control Specifications MODEL: QBUS8V2 100W RMS power <0.4% >90dB Signal-to-noise ratio 20Hz - 150Hz Frequency response 0.9V...
