ELORA ELOMETER STT Operation Instruction

---------------------------------------------------------------------------
Target Zone: Programmable Go/No Go torque zone ( program from 1-10% of target torque).
Lights: Yellow (just under target zone), Green (within target Zone), Red (over target zone).
Buzzer: Continuous when within target zone, intermittent when over target zone.
Target Torque Example:
Set the target torque to 100.0: Target +
Set the target zone to 4%: HOLD
Result:
When torque reading is just under 96.00 (4% of 100) the yellow light will come on prompting you to slow down.
When torque reading is above 96 and below 104 (+/-4% zone) the green light will come on and the buzzer will sound.
When torque reading is above 104 the red light will come on and buzzer will beep on and off.
ZERO/TARE: PRESS THE ZERO TARE BUTTONS IF THERE IS A READING IN TRACK MODE WITH NO TORQUE APPLIED
This will adjust for hysteresis and temperature variations..
Always load the wrench three times to full scale in the direction of use and press the Zero/Tare buttons prior to use.
If the wrench will not zero, while in track mode, a greater than 2,5% shift has occurred in the transducer, return for repair or
recalibration.

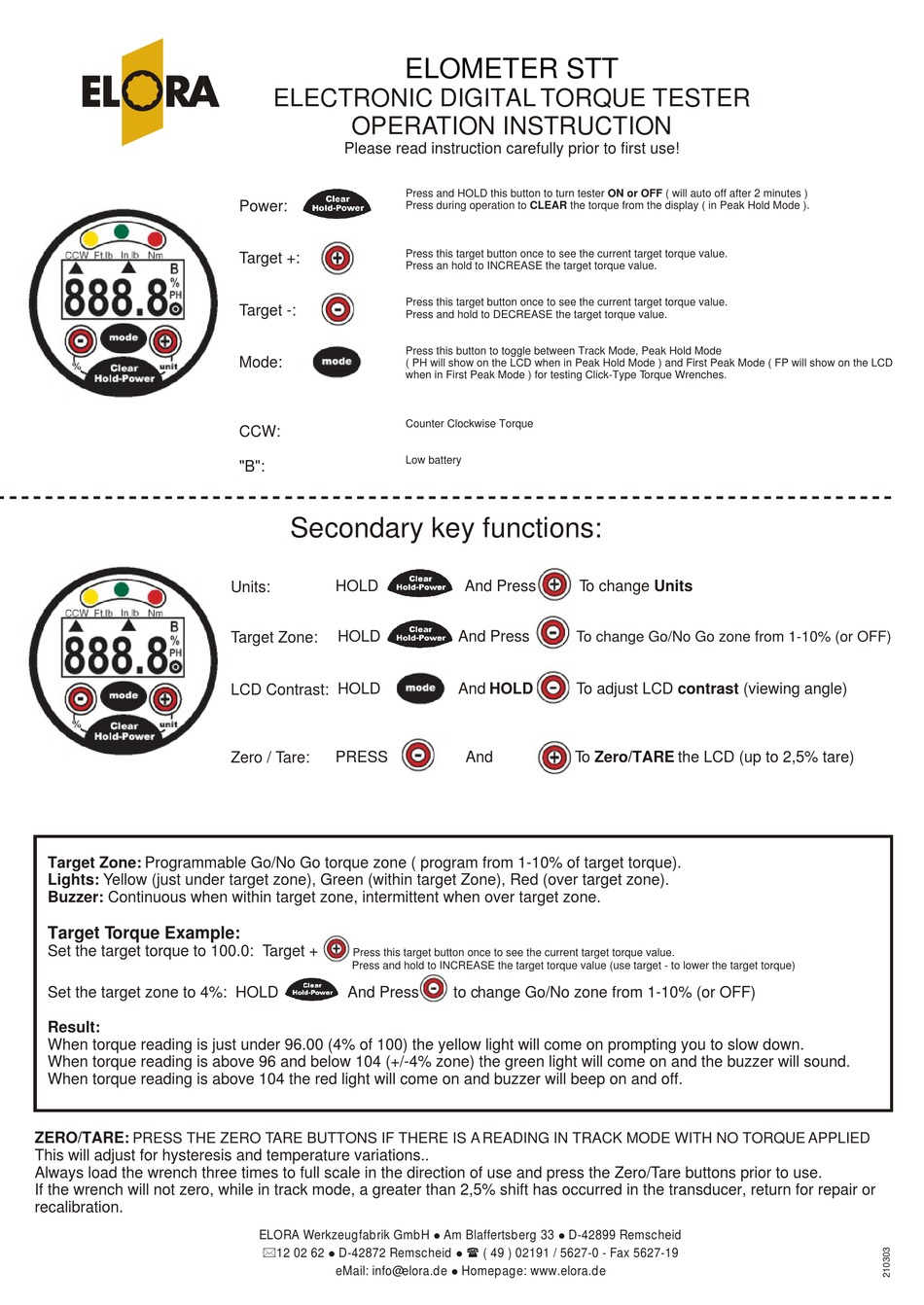

ELOMETER STT
ELECTRONIC DIGITAL TORQUE TESTER
OPERATION INSTRUCTION
Please read instruction carefully prior to first use!
Press and HOLD this button to turn tester ON or OFF ( will auto off after 2 minutes )
Power: Press during operation to CLEAR the torque from the display ( in Peak Hold Mode ).
Press this target button once to see the current target torque value.
Target +:
Press an hold to INCREASE the target torque value.
Press this target button once to see the current target torque value.
Target -:
Press and hold to DECREASE the target torque value.
Press this button to toggle between Track Mode, Peak Hold Mode
Mode:
( PH will show on the LCD when in Peak Hold Mode ) and First Peak Mode ( FP will show on the LCD
when in First Peak Mode ) for testing Click-Type Torque Wrenches.
Counter Clockwise Torque
CCW:
Low battery
"B":
Secondary key functions:
HOLD
Units:
HOLD
Target Zone:
HOLD
LCD Contrast:
PRESS
Zero / Tare:
Press this target button once to see the current target torque value.
Press and hold to INCREASE the target torque value (use target - to lower the target torque)
And Press
ELORA Werkzeugfabrik GmbH
*12 02 62 D-42872 Remscheid
l
eMail: info@elora.de
And Press To change Units
And Press To change Go/No Go zone from 1-10% (or OFF)
And HOLD To adjust LCD contrast (viewing angle)
And To Zero/TARE the LCD (up to 2,5% tare)
to change Go/No zone from 1-10% (or OFF)
