Boss Audio Systems BV12.1BGT Supplementary Manual

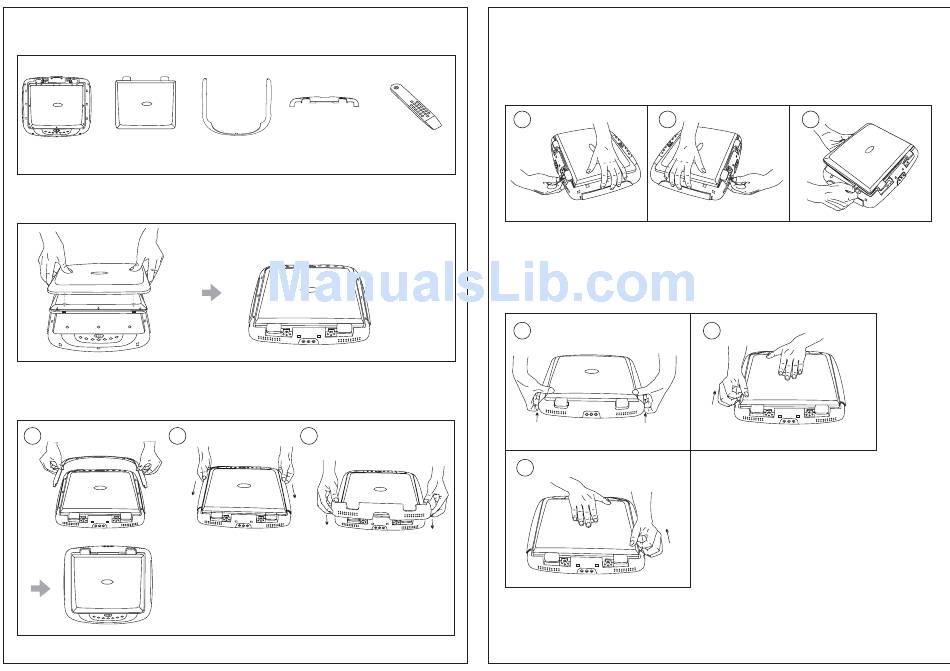

Installing The Snap On Covers

1. 2.
Housing Snap On Cover
(Screen Back Cab)
Place the pod on a soft surface to avoid damaging the plastic.

Installing The Screen Cover

(A)
(A)
Open the screen and hook the two tabs (A) on the bottom edge of the screen. Snap the
opposite side over the hinge.

Installing The Shroud

1 2
Begin by hooking the area and slide the cover over the pod. The cover will snap in place.
3. 4.
Snap On Cover Snap On Cover
(Shroud 1) (Shroud 2)
3

Removing The Snap On Cover(Shroud) From The Housing

Working on a soft surface to avoid damaging the plastic.
5.
Insert the supplied
then press the
1
Pry Tool

Removing The Snap On Cover(Screen Back) From LCD The Housing

Working on a soft surface to avoid damaging the plastic.
Insert the supplied
then press the
1
3
pry tool between the Housing and
pry tool to release the Snap On Cover (Shroud).
2
pry tool between the Housing and
pry tool to release the Snap On Cover (Screen Back).
2
Snap On Cover (Shroud) ,
3
Snap On Cover (Screen Back) ,
