ADM-1
Audio Delay Module
Reference Guide

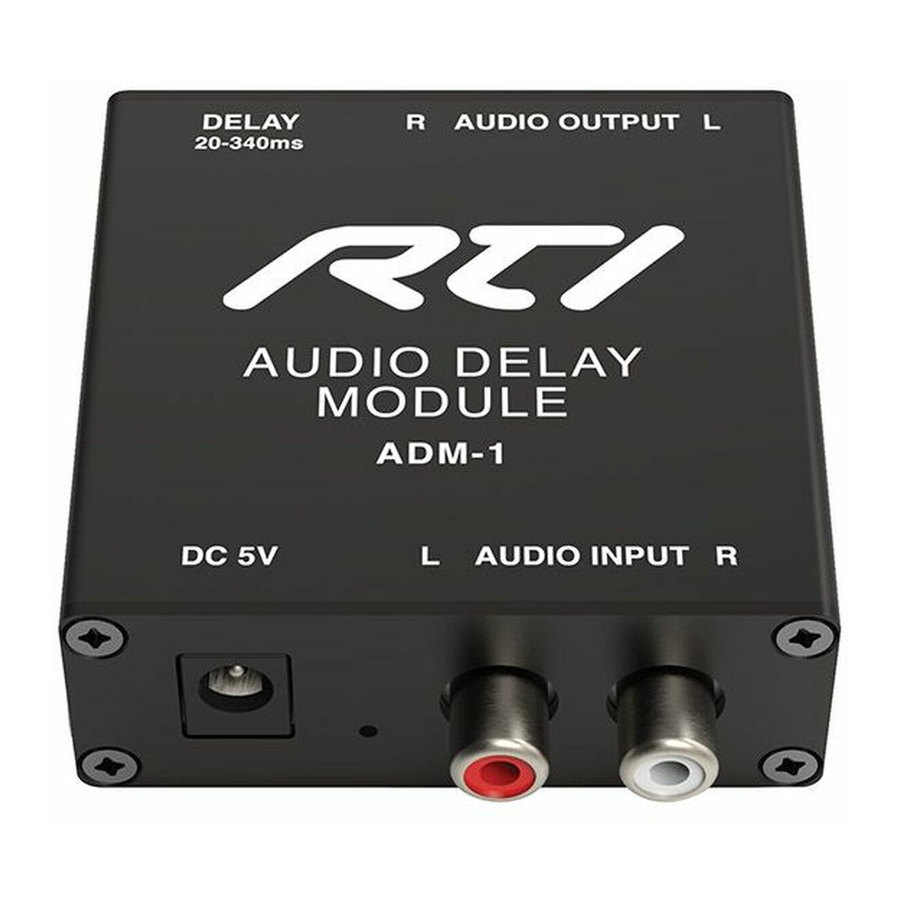

The ADM-1 Audio Delay Module is the ideal problem solver to lip-sync issues between audio
output devices. For instance, when a television's internal speakers and ceiling speakers wired
to an external audio system are used at the same time, there may be a noticeable delay due to
differences in audio processing speed. The ADM-1 makes it easy to compensate for this delay and
get the sound back in sync.
Key Features
The ADM-1 provides superior quality and reliability as well as these specific features:
The perfect solution to lip-sync problems.
Easily adjust delay increments using 16-way selector dial.
Delay the audio from 20-340ms.
Compact design.
Simple L/R RCA input and output connections.
Copyright © 2019 • Remote Technologies Incorporated • All rights reserved.
70-210206-18 V1.0
