ZM-24
Zigbee
Transceiver Module
®
70-210061-17 V1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZM-24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RTI ZM-24

Summary of Contents for RTI ZM-24

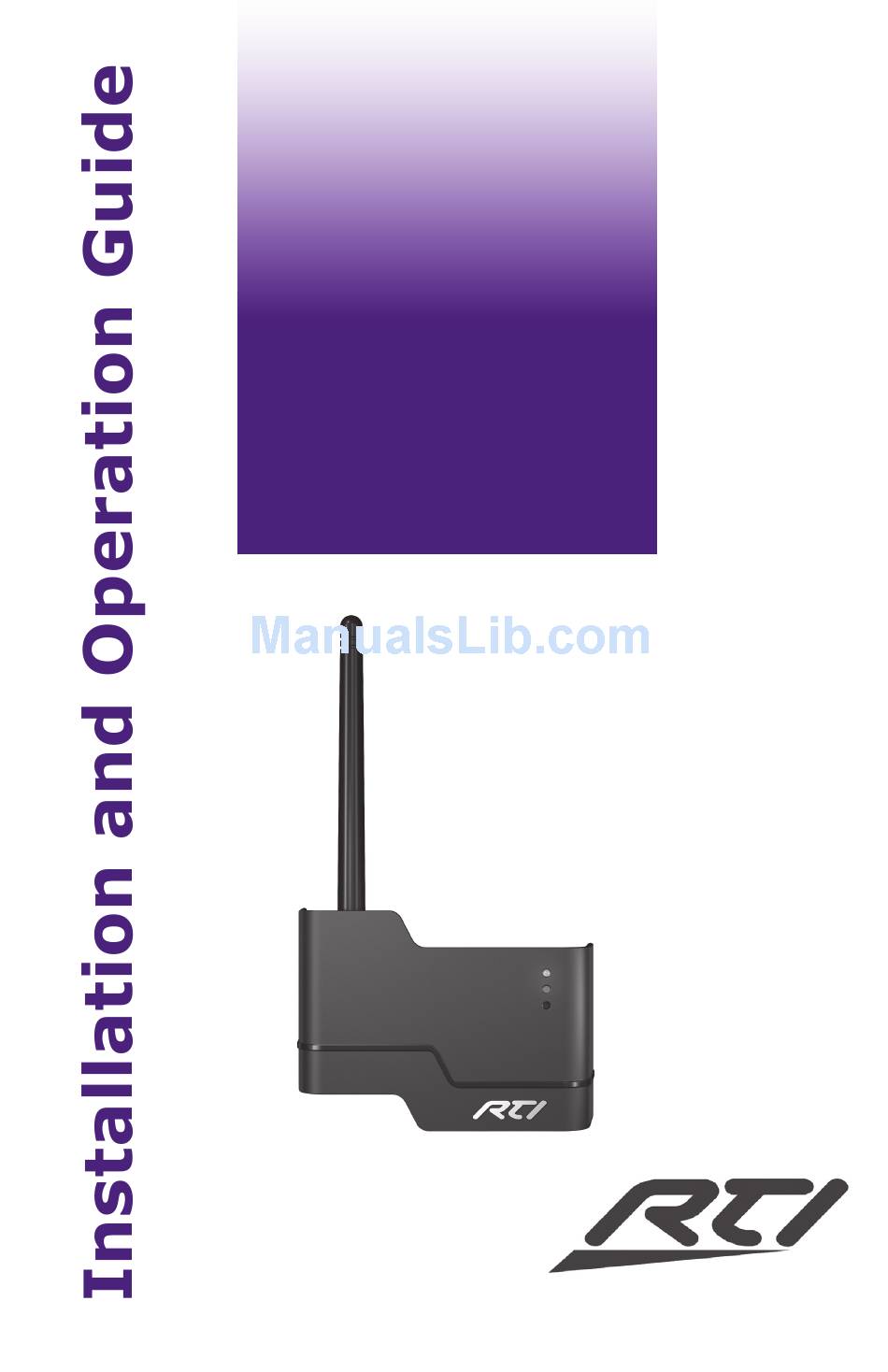

  • Page 1 It’s Under Control ® It’s Under Control ® ZM-24 Zigbee Transceiver Module ® 70-210061-17 V1.0...
  • Page 2 ZM-24 Zigbee Transceiver Module ® Copyright © 2008 Remote Technologies Incorporated All rights reserved.

  • Page 3: Federal Communications Commission Notice

    This device must accept any interference received including interference that may cause undesired operation. FCC Id: MMurTI1400 IC (Canada): 3166a-rTI1400 117 612 914 deClaraTIOn OF COnFOrMITY (dOC) The Declaration of Conformity for this product can be found on the RTI website at: www.rticorp.com/declaration...

  • Page 4: Safety Suggestions

    ZM-24 Zigbee Transceiver Module ® saFeTY suGGesTIOns read Instructions. Read all safety and operating instructions before operating the unit. retain Instructions. Keep the safety and operating instructions for future reference. Heed Warnings. Adhere to all warnings on the unit and in the operating instructions.

  • Page 5: Limited Warranty And Disclaimer

    Remote Technologies Incorporated shall not be liable for errors or omissions contained herein or for consequential damages in connection with the furnishing, performance, or use of this guide. ZM-24 and the RTI logo are registered trademarks of Remote Technologies Incorporated.
  • Page 6 ZM-24 Zigbee Transceiver Module ®...

  • Page 7: Table Of Contents

    It’s Under Control ® Table OF COnTenTs Federal Communications Commission notice ....3 safety suggestions ............4 limited Warranty and disclaimer ....... 5 Contents ..............7 Chapter 1 - Welcome ........... 9 Important Notes ............9 Product Contents, Unpacking ........10 Chapter 2 - Features ...........
  • Page 8 ZM-24 Zigbee Transceiver Module ®...

  • Page 9: Contents

    Avoid installing the ZM-24 in a location where it can come in contact with direct sunlight. Do not let the ZM-24 get wet. It should not be handled with wet hands or placed in an area where it could get wet.

  • Page 10: Product Contents, Unpacking

    ZM-24 Zigbee Transceiver Module ®...

  • Page 11: Chapter 2 - Features

    It’s Under Control ® CHaPTer 2 | FeaTures The ZM-24 provides superior quality and reliability as well as these specific features: Enables bi-directional Zigbee communication. ® Wireless Zigbee communication range between ZM-24 modules up to ® 100 feet. Connects to a central processor from up to 1000 feet away using standard Cat5 cable.
  • Page 12 ZM-24 Zigbee Transceiver Module ®...

  • Page 13: Chapter 3 - Installation And Operation

    CHaPTer 3 | InsTallaTIOn and OPeraTIOn MOunTInG The ZM-24 can be mounted on a shelf, wall, or cabinet. See below for recommended positioning. For the best reception connect two or more ZM-24 units together. This will help eliminate RF reception drop-out due to multi-path interference.
  • Page 14 ZM-24 Zigbee Transceiver Module ®...

  • Page 15: Chapter 4 - Specifications

    It’s Under Control ® CHaPTer 4 | sPeCIFICaTIOns Power +9VDC to +16VDC, 60mA RTI Com Port Two-way Zigbee® Communication Port, RJ45 Connection, drives up to 1000 ft (300 m) of wire Wireless Networking IEEE802.15.4 Zigbee© network compliant RF Frequency Range 2.4Ghz - 2.5Ghz...
  • Page 16 ZM-24 Zigbee Transceiver Module ®...

  • Page 17: Chapter 5 - Troubleshooting

    If it does, move the ZM-24 to a different area. The data led never turns green. Make sure the ZM-24 is wired correctly to the central control system, and verify the control system is powered-up. Make sure the RTI universal system controller is programmed to output RF data.
  • Page 18 ZM-24 Zigbee Transceiver Module ®...

  • Page 19: Chapter 6 - Service And Support

    Fax (952) 253-3131 info@rticorp.com rTI TeCHnICal suPPOrT At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail.
  • Page 20 ZM-24 for service RTI will pay all labor and material expenses for all repairs covered by this product’s warranty. If necessary repairs are not covered by warranty, or if a unit is examined which is not in need of repair, you may be charged for the repairs or examination.

  • Page 21: Index

    Connection Options ............13 Mounting ..............13 Limited Warranty/Disclaimer ..........5 Product Contents ..............9 Safety Suggestions ............. 4 Service and Support ............23 Contact RTI ..............23 Shipment for Service ............. 24 Technical Support ............23 Specifications ..............15 Troubleshooting ..............17...
  • Page 22 ZM-24 Zigbee Transceiver Module ® It’s Under Control ® remote Technologies Incorporated 5775 12th avenue east, suite 180 shakopee, Mn 55379 Tel: 952-253-3100 Fax: 952-523-3131 www.rticorp.com © 2008 Remote Technologies Inc. All rights reserved. Printed in Taiwan.
