  • Page 1 User Manual Galaxis Showtechnik PYROTEC Power Pack Firmware: not applicable Revision Date: March 31 2021 Batch No.: P120100...
  • Page 2: Table Of Contents

    Table of Contents: 1 Introduction ............................3 Safety instructions ........................3 Requirements the operator has to fulfill and necessary qualification ........4 Area of application ........................4 2 Illustrations ............................5 Description of the illustrations ....................6 3 Basic operation of the device ......................6 Operation ..........................
  • Page 3: Introduction

    1 Introduction 1.1 Safety instructions Observe all safety instructions in this documentation! Safety instructions warn of dangers when handling devices and provide information on how to avoid them. They are classified according to the severity of the danger and divided into the following groups: Danger signals dangers for persons.
  • Page 4: Requirements The Operator Has To Fulfill And Necessary Qualification

    1.2 Requirements the operator has to fulfill and necessary qualification This product may only be operated by persons of legal age. In Germany the user must be at least 18 years of age. This product may only be used within the scope of a professional and occupational activity. 1.3 Area of application The Power Pack is a switching amplifier with one input and one output.
  • Page 5: Illustrations

    2 Illustrations...
  • Page 6: Description Of The Illustrations

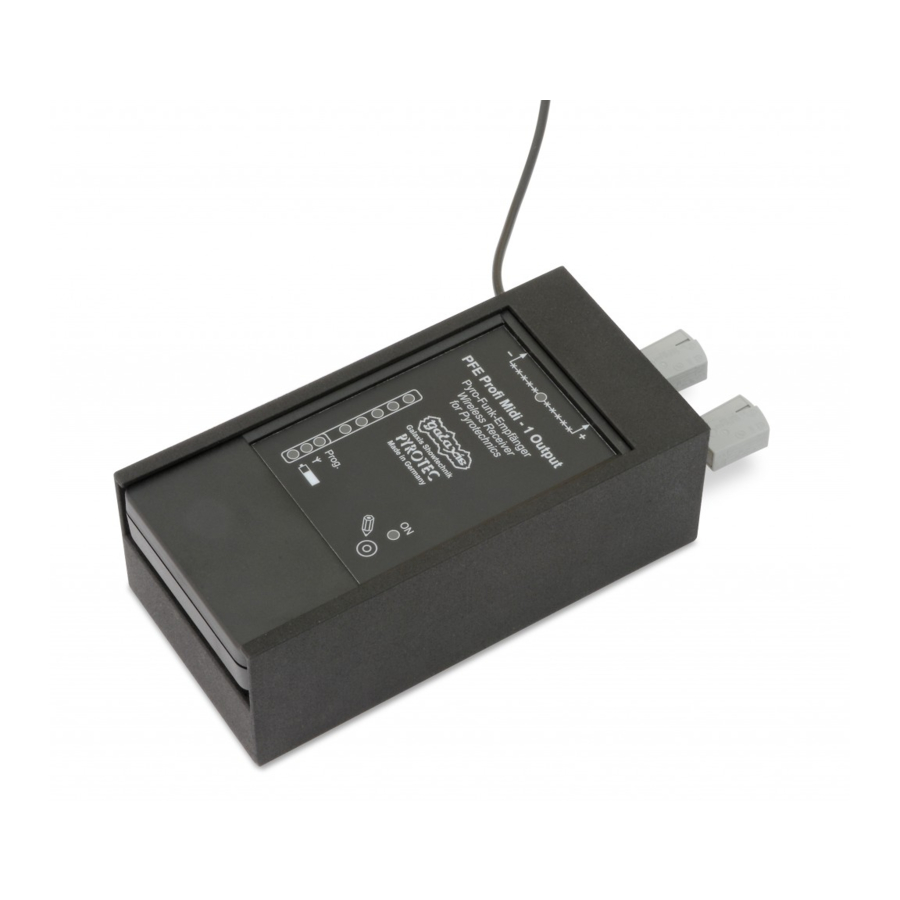

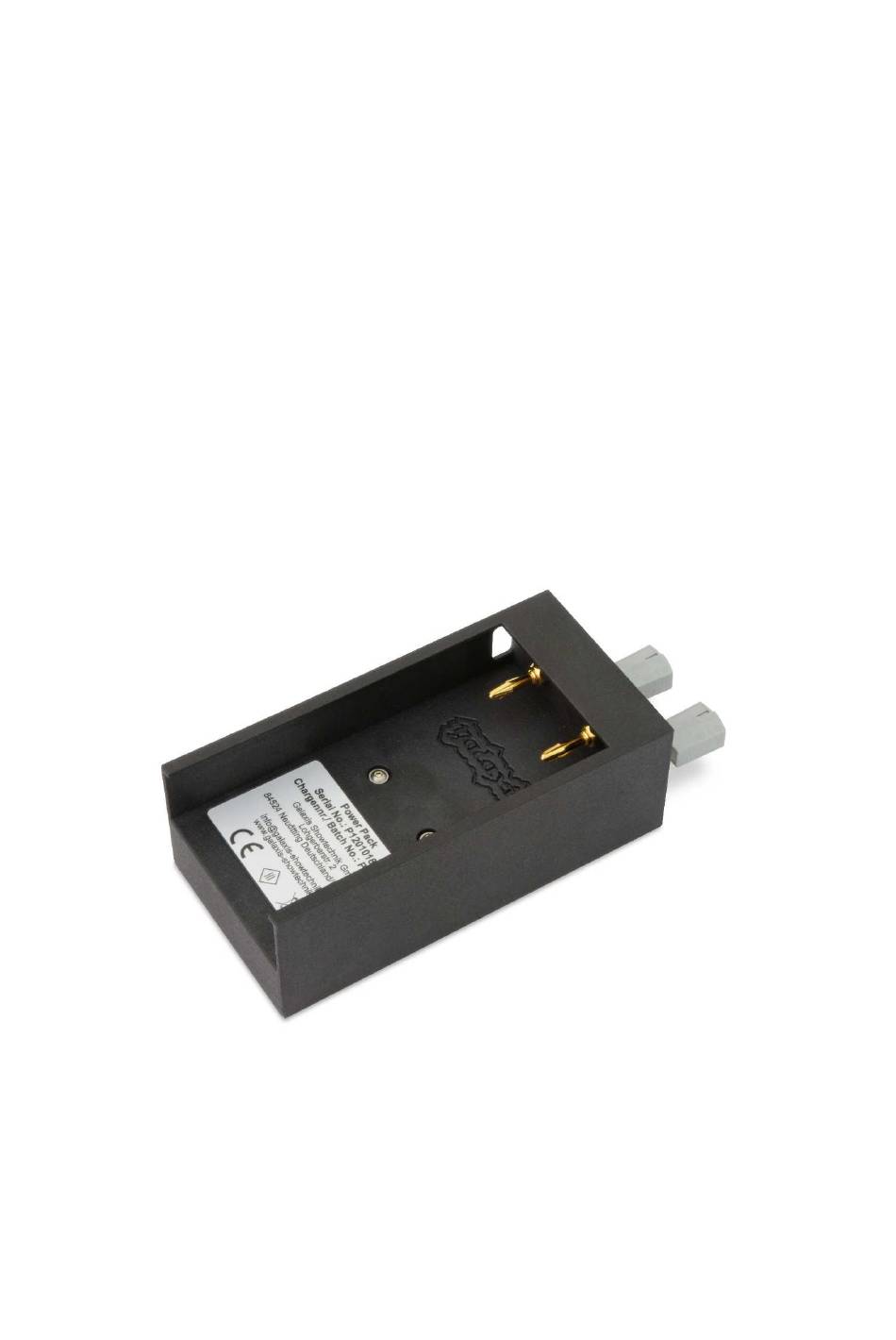

    2.1 Description of the illustrations Slide for PFE Profi Midi 1 Output Hole for the antenna Input, 2 x banana plugs 4 mm Battery compartment cover Fixing screws for the battery compartment cover Battery compartment and batteries (when battery compartment cover is open) Output, 2 x banana jack 4 mm Quick-fastening clamps Control LED, colour: red...
  • Page 7: Input

    3.3 Input The input can be supplied with voltages in the range from 12 to 25 Volts, whereby the polarity is irrelevant because there is a rectifier in the device. The internal load of the input is 660 Ohm and 47µF. If a cable is connected to the input of the device, the cable length must be less than 3.0 m.
  • Page 8: Batteries

    4 Batteries 4.1 Recommended battery type Only use AA-size alkaline batteries in this device. In recent years, it has become apparent that alkaline batteries from well- known manufacturers are also being leaking because production has been relocated to low-wage countries. The batteries of the manufacturer Varta have hardly shown this problem lately, which is why we recommend them.
  • Page 9: Warranty

    7 Warranty The warranty period is 24 months. If you have reason for complaint within this period, please send the device properly packed and carriage paid to the manufacturer. Please include a detailed description of the fault symptom. Warranty is excluded if the device was damaged due to wrong usage or excessive stress. Unauthorized repairs and the use of non-original parts will void all warranty, guarantee and product liability claims with immediate effect.
  • Page 10: Technical Data

    However, the written approval of Galaxis Showtechnik GmbH must be obtained before use. If necessary, Galaxis Showtechnik GmbH will check the compatibility with the hardware beforehand. Within the Galaxis product family the Power Pack is intended for use with the PFE Profi Midi 1 Output.
  • Page 11: Ce Marking

    This device is marked with the CE logo: Each device is accompanied by an EU Declaration of Conformity. 13 Address of the manufacturer and contact details for requesting an EU declaration of conformity Galaxis Showtechnik GmbH Lohgerberstr. 2 84524 Neuötting Germany Tel.: +49 / 8671 / 73411...
