- Page 1 User Manual Galaxis Showtechnik PYROTEC PFM Advanced USB Wireless Modem Firmware 2.6C4n Revision date: December 8 2017 Batch No.: EUPFM100100, USPFM100100...
- Page 2 - 2 -...
-
Page 3: Table Of Contents
Table of contents Page 1. Illustration PFM Advanced 2. Description of indicators and control elements 3. Driver Installation 4. Selection of the radio channel 5. Programming of the devices 6. Troubleshooting 7. Technical data 8. CE marking of the EU version 9. -

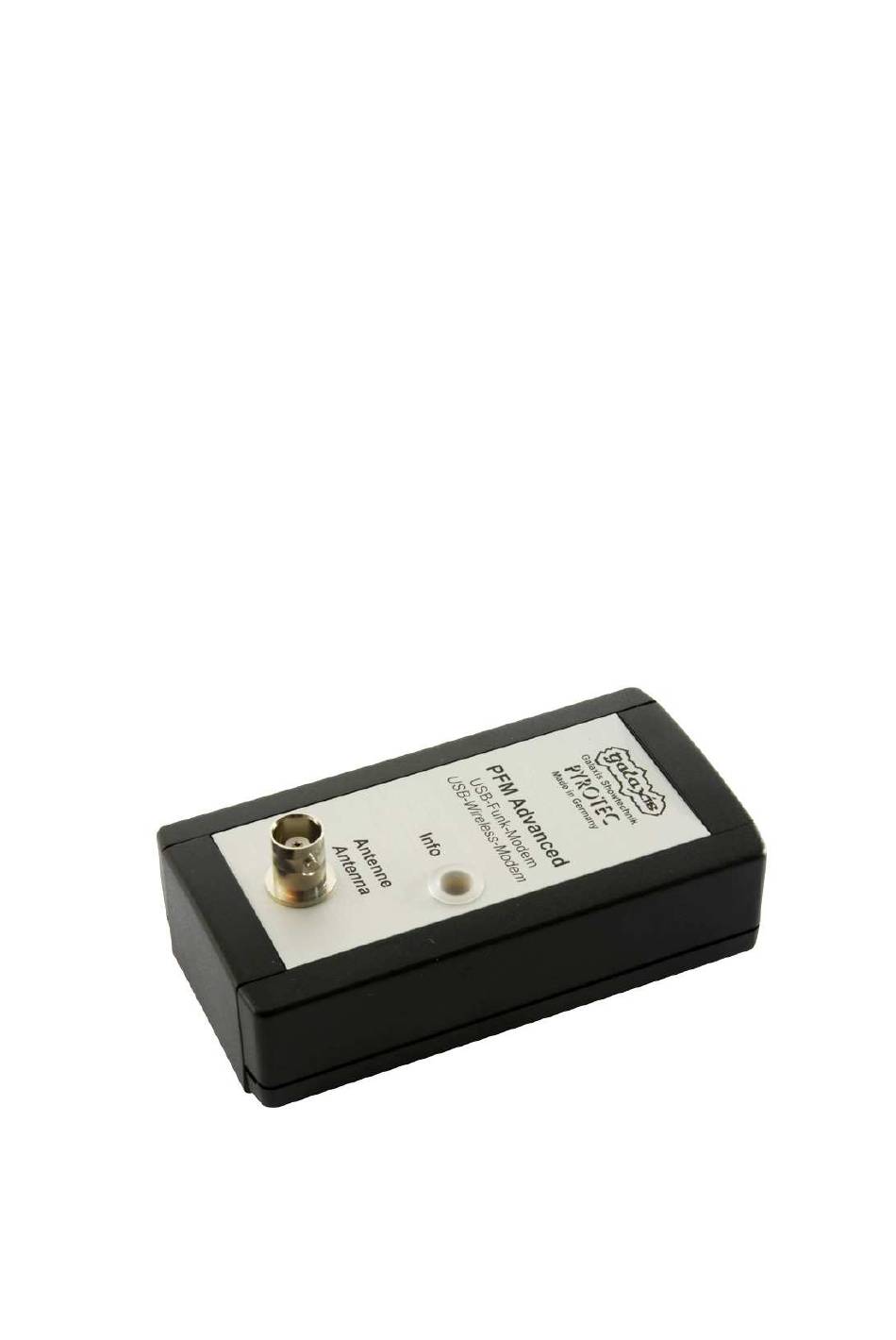

Page 4: Illustration Pfm Advanced
- 4 -... -
Page 5: Description Of Indicators And Control Elements
3. Driver Installation To successfully install the drivers of the PFM Advanced Wireless Modem, please follow the instructions of the PDF file, which is on your Desktop after successful installation of the PYROTEC Composer software. 4. Selection of the radio channel During the driver installation, the PFM Advanced Wireless Modem will be set to radio channel 60 (applicable for both versions USA/Canada and EU). -
Page 6: Programming Of The Devices
In the Log-List on the right side, you will be informed about the current steps of the programming. Note: More information about remote programming can be found in the manual of the PYROTEC Composer. 6. Troubleshooting If you encounter problems during programming or remote access, e. -
Page 7: Technical Data
7. Technical data General data: Radio parameters Frequency Band: 433.05 - 434.79 MHz EU version Maximum radio-frequency power transmitted: <=10 mW Channel Spacing: 25 kHz Number of radio channels: 70 (433.050 - 434.775 MHz) Modulation: FM narrow band Frequency Shift: +/- 3 kHz Duty Cycle: <10% Radio equipment class according to 2014/53/EU (RED): 1 Radio equipment type: non-specific short range device,... -
Page 8: Ce Marking Of The Eu Version
8. CE marking of the EU version The EU version of this device is marked with the CE logo: 9. Address of the manufacturer and contact details for requesting an EU declaration of conformity Galaxis Showtechnik GmbH Lohgerberstr. 2 84524 Neuötting Germany Tel.: +49 / 8671 / 73411...
