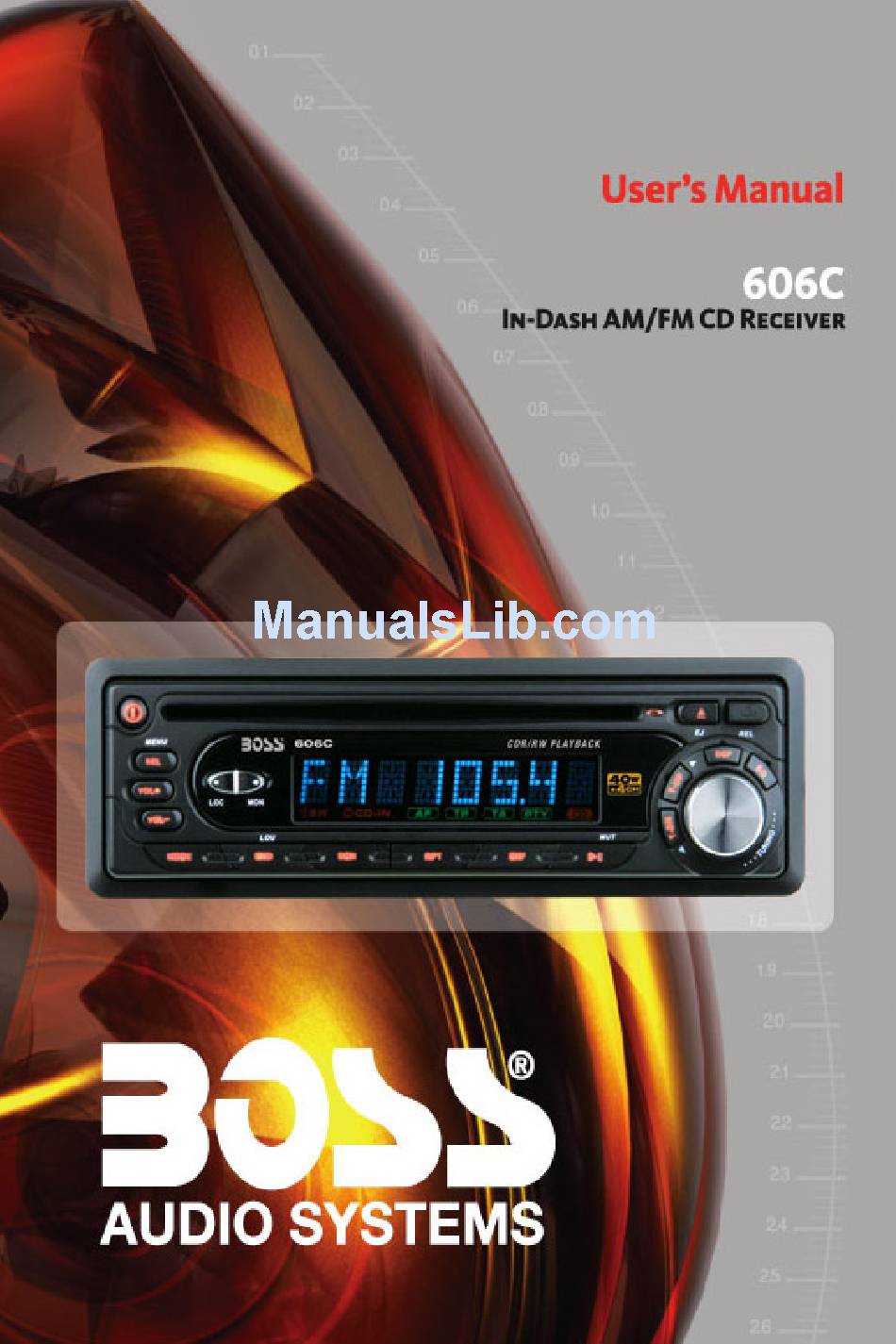

Summary of Contents for Boss Audio Systems 606C
-
Page 2: Table Of Contents
CONTENTS Installation...3 DIN Front-Mount (Method A)...3 Installing the unit ...3 Removing the unit...4 DIN Rear-Mount (Method B)...5 Using the Detachable Front Panel ...6 Wiring Connection...7 Operation ...8 General Operation ...9 Radio Operation ...10 CD Operation...10 Disc Notes ...11 Specification ...12 Trouble shooting...13... -
Page 3: Installation
INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. -
Page 4: Removing The Unit
INSTALLATION Sleeve L Key Outer Trim Ring Front Panel R Key 6. Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so examine which ones will be most effective. -
Page 5: Din Rear-Mount (Method B)
INSTALLATION DIN REAR-MOUNT (Method B) If your vehicle is a Nissan, Toyota, follow these mounting instructions. Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle. -
Page 6: Using The Detachable Front Panel
USING THE DETACHABLE FRONT PANEL REMOVE THE FRONT PANEL 1. Press the REL button on the front panel and pull off the front panel. Front Panel 2. Keep front panel into the case. Protective Case Front Panel INSTALL THE FRONT PANEL To install the front panel, insert the panel into the housing and make sure the panel is properly installed. -
Page 7: Wiring Connection
WIRING CONNECTION ANTENNA CONNECTOR FUSE IGNITION SWITCH (ACC+) FUSE Constant 12 YELLOW volts BLACK GROUND (B–) POWER BLUE ANTENNA WHITE FRONT Lch SPEAKER WHITE/BLACK GREEN REAR Lch SPEAKER GREEN/BLACK MAIN UNIT AUX IN CABLE FRONT RCA CABLE REAR RCA CABLE GREY GREY/BLACK VIOLET... -
Page 8: Operation
OPERATION LOCATION OF KEYS 20 1 3 12 13 4 9 6... -
Page 9: General Operation
OPERATION GENERAL OPERATION • ON/OFF Switch on the unit by pressing any button (except REL button (6) and button (4)). When system is on, press POWER button (1) to turn off the unit. • FACEPLATE RELEASE Press REL button (6) to detach the removable faceplate. -
Page 10: Radio Operation
OPERATION (MUT) button (2) to mute the audio output. Press it again to release this mode and recover previous volume level. • EQUALIZATION Press EQ button (10) shortly to turn on equalization function and to select desired audio mode. There are five kinds of mode as below: FLAT CLASS... -
Page 11: Disc Notes
OPERATION • PAUSING CD Press button (2) shortly to pause CD player. Press it shortly again to resume playback. • SELECTING TRACKS Press T-UP button (17) or T-DN button (18) to choose the following track or the previous track. Track numbers show on display. -
Page 12: Specification
SPECIFICATION GENERAL Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Drain CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB) Stereo Separation Frequency Coverage Sensitivity (S/N = 20 dB) -
Page 13: Trouble Shooting
TROUBLE SHOOTING Before going through the checklist, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of CD disc inside loaded or ejected.
