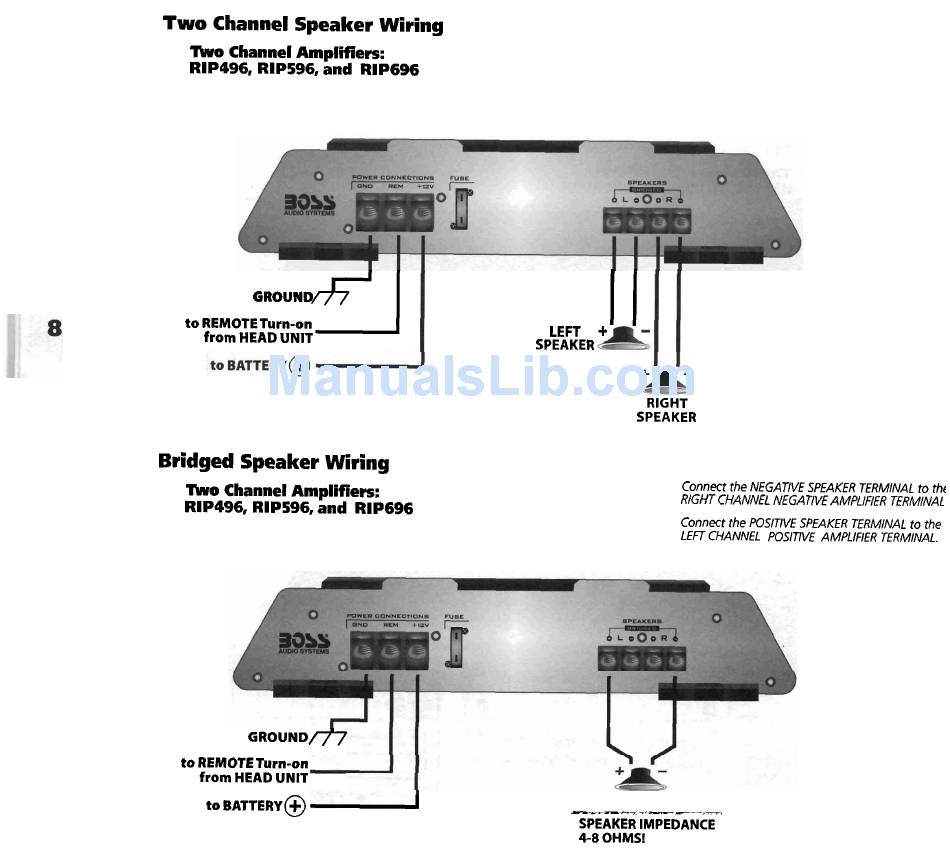

Two Channel Speaker Wiring
Tbuo Channel Amplifiers:
RIP496, RIP596,
and
RIP696
RIGHT
SPEAKER
GROUND
to REMOTETurn-on
" I
from HEAD UNIT
Bridged Speaker Wiring
LEFT
+
I I
SPEAKER
Tho Channel Amplifiers:
RIP496, RIP596,
and
RIP696
Connect the NEGATIVE SPEAKER TERMINAL to thc
RIGHT CHANNEL NEGATIVE AMPLIFIER TERMINAL
Connect the POSITIVE SPEAKER TERMINAL to the
LEFT CHANNEL POSITIVE AMPLIFIER TERMINAL.
GROUND^
to REMOTE Turn-on
from HEAD UNIT
to BATTERY
@
- -
- - - - . -
SPEAKER IMPEDANCE
4-8 OHMS!
