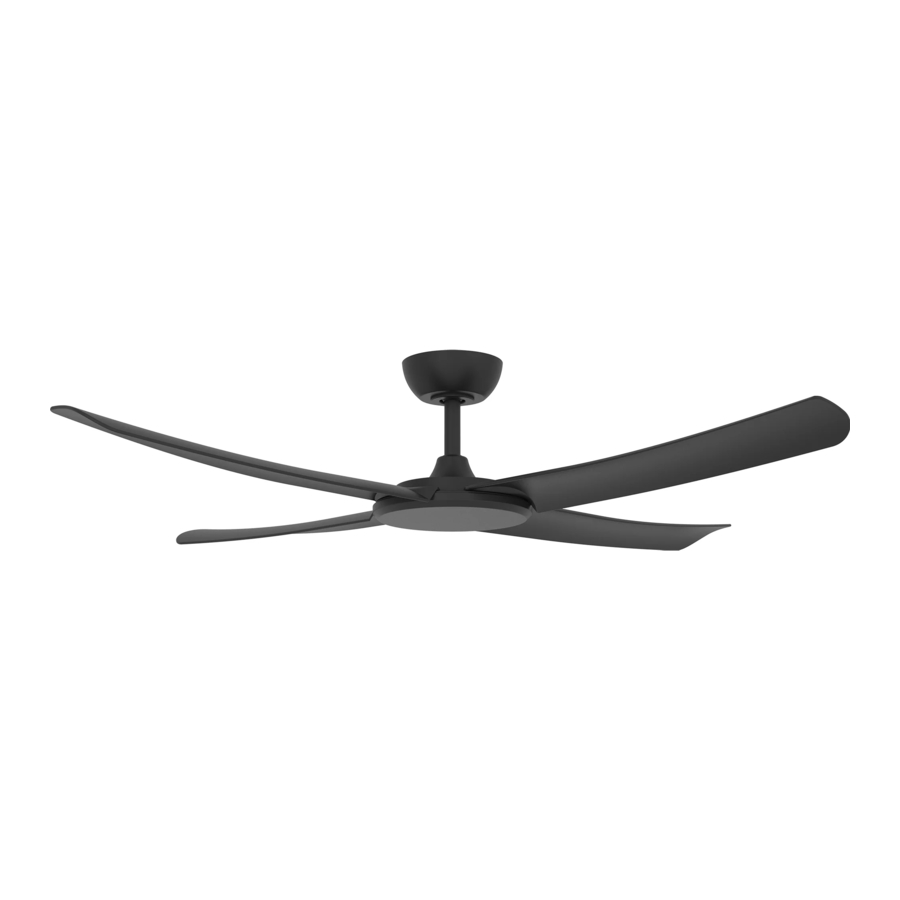

- Page 1 C E I L I N G F A N S FlatJet MODEL FLA56** Operation & Installation Instructions...
- Page 2 ThreeSixty Fan Technology that’s Innovative and Reliable ThreeSixty Fan is proud of its range of ceiling fans, accessories and lighting products. We believe these are the leading products in their category, reflecting over 40 years collective Australian experience in design, development, manufacturing and distribution of electronics and electrical equipment.
-
Page 3: Important Safety Information
Important Safety Information Read your owner’s manual and safety information before using or installing your new fan. Beware of fan blades when cleaning, painting or working near the fan. Always turn off power at the isolation switch before working on ladders near the fan. Never allow children to play with the remote control. - Page 4 Flatjet Mounting bracket screw kit Mounting bracket Screws (2) Extra Length Down Rod (not included) Dress Ring Steel pin Grub Screw Hanger ball When changing or adjusting down rod length, re-use the Coupling cover parts in bold Motor Coupler Support Pin and Cotter (R) pin Grub Screws (2) Bottom cover...
-
Page 5: Electrical And Structural Requirements
Tips for Energy Efficient Use of Ceiling Fans Ceiling fan performance relies heavily on proper Avoid being too close to air conditioning ducts and breezeways (these may cause the fan to wobble). installation and use of the fan. For cooling, the ‘ wind chill’ effect of a breeze First, choose an appropriate mounting location. - Page 6 Hanging and Wiring WARNING This fan requires an earthed circuit supplying 240V~ 50Hz AS/NZS60335.2.1 states an all pole isolation switch must be fitted. The installer should verify what is required under the Wiring Rules. Install circuit wiring. A single or double pole isolation switch is required (#check local regulations).
- Page 7 Step 1 - Assemble the canopy, dress ring and coupling cover over the downrod. Generic canopy, rod and cover shown for illustrative purposes Dress Ring Step 2 - Route all the wires from the motor through the down rod. Fit the down rod into the shaft coupler, align the pin holes and pass the motor support pin through the coupler and down rod.
- Page 8 Step 3 - Hang fan from bracket, attach motor wires to the control module and connect the control module to the incoming power supply. Fit the control module into the recess in the mounting bracket. Tuck and route wires carefully to avoid pinching. Red(L) Black(N) Yellow/Green(E)
- Page 9 Step 5 - Align the 2 holes on the blade holder, blade and screw with screws and washers provided. Although the blades can be attached with the fan motor sitting on a surface, to avoid damage it is recommended to attach them after the motor is hung. FJMAN V1.2 Pg9/15...
- Page 10 Power Turn on/off Fan Fan Speed 1 - Lowest Speed 6 - Highest Speed Speed Adjust Timer Off For higher speed Fan turns off after 1/3/6 hr For lower speed Forward Reverse Anti-clockwise or clockwise rotation function together when first installed, or FJMAN V1.2 Pg10/15...
-
Page 11: Maintenance
Maintenance Cleaning ThreeSixty recommends cleaning your fan at 3 monthly intervals. Use warm water and soft non-abrasive cloths to remove dirt. Drying with a separate clean cloth will prevent smears. Never spray water onto a fan and protect it from rain, wind and other damage. If a fan blade shows signs of cracking, crazing, excessive bending or damage, discontinue use and contact ThreeSixty for expert technical assistance. - Page 12 ThreeSixty Fans Pty. Ltd. – Plain English Ceiling Fan Warranty Terms Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a refund or replacement for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
- Page 13 ThreeSixty Fans Pty. Ltd. – Plain English Ceiling Fan Warranty Terms Cosmetic defects Carefully inspect your product prior to installation and notify us as soon as possible if there are cosmetic defects. Cosmetic defects are generally not covered by warranty unless present when the product is initially unpacked. Damage from being struck by objects or not being kept clean is not covered by warranty.
- Page 14 Records, Notes and Comments Use this section to record important information about your fan. ThreeSixty Technical Support and Warranty Hotline: 1300 469 326 Date of Purchase: _______________________________________ Purchased from: _______________________________________ Installed By: ________________________________________ Phone Number: ________________________________________ Staple receipts, electricians invoice or compliance certificate below: FJMAN V1.2 Pg14/15...
- Page 15 C E I L I N G F A N S FJMAN V1.2 Pg15/15...
