- Page 1 P U M P I N G A N D E N E R G Y S O L U T I O N S SŪKŅA LIETOŠANAS INSTRUKCIJA www.uprent.eu...
- Page 2 Benzīna sūknis vaļējā korpusā Tehniskie parametri: Kanalizācijai un drenāžas ūdens pārsūknēšanai Pielietojums Ražotājs / modelis Caffini / Trashlib 2 Maksimālā ražība 51 m3 / h Maksimālais spiešanas augstums 30mwc Maksimālais uzsūkšanas augstums Iesūkšanas uzgaļu diametrs 2’’ Izmešanas uzgaļu izmērs 2’’...
- Page 3 TRASHLIB 2...
-
Page 4: Table Of Contents
Contents Description, application and working principles ............3 Description ........................3 Construction ........................ 4 Specification and dimensions ..................5 Performance and curve ..................... 6 Safety instruction ....................... 7 Transportation and lifting ....................9 Pipework and installation ....................10 Pipework ........................10 Preparation for starting .................... -
Page 5: Description, Application And Working Principles
Description, application and working principles Description WARNING: This manual is intended to give Important Information that must be followed during Storage, Transportation, Installation, Operation and Maintenance of the Pump- Set. We therefore recommend that this manual is read carefully before the Pump-Set is put into operation. -
Page 6: Construction

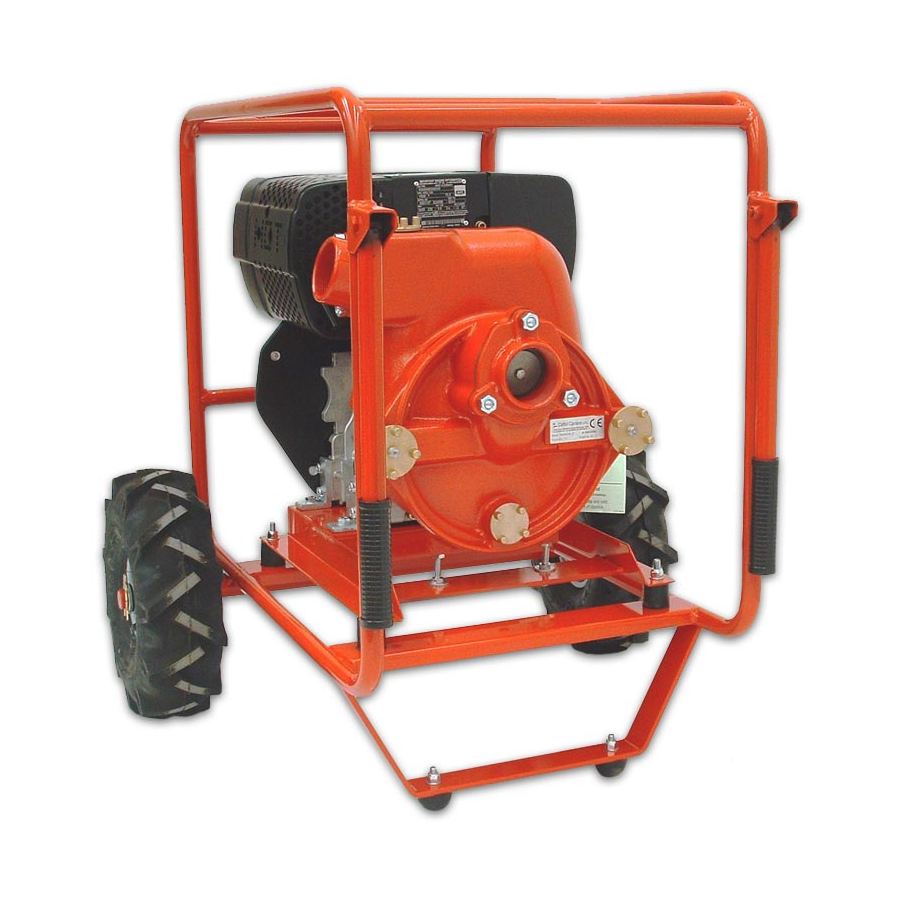

Construction Main pump elements: 1 – Discharge port, 2 – Suction port, 3 – Moving handle, 4 – Drainage plug, 5 – Engine, 6 – Tyre, 7 – pump casing, 8 – Muffler, 9 – Frame, 10 – Air filter, 11 – fuel tank, 12 – pump filling plug. -
Page 7: Specification And Dimensions
Specification and dimensions Trashlib 2 Max capacity 51m3/h Max head Solids handling 28mm Weight 38kg Connection ports 2” DN50 Dimensions LxWxH 730x700x750 Petrol engine Honda Displacement 163 cm3 Starting Pull start Power 3,6 kW Nominal speed 3600 rpm Fuel tank capacity... -
Page 8: Performance And Curve
Performance and curve... -
Page 9: Safety Instruction
The company management is responsible for ensuring that all work is performed by qualified personnel in a safe manner. It is not permitted to make changes to the pump unit without written permission from Caffini pump. Ensure that hot/cold and rotating parts of the pump are shielded adequately to prevent unintentional contact. - Page 10 4. Do not hold, pour or use combustibles in presence of naked flame, and of devices like stoves, boilers or appliances able to generate sparks. 5. Do not refill fuel in closed and scarcely ventilated environments. 6. Do not refuel during functioning. Leave the engine to cool before refueling. Keep the combustibles in appropriate containers, safety Standards approved.
-
Page 11: Transportation And Lifting
Transportation and lifting The machine can only be handled with the suction and delivery piping disconnected and with the power supply motor still or disconnected. The machines installed on frame can be handled with lifting appliances that can be connected to the lifting hook envisioned on the same machine, using suitable safety systems. -
Page 12: Pipework And Installation
Pipework and installation Pipework Clean pipework thoroughly before connecting it to the pump. Suction pipes must have the same diameter as the pump’s suction port. Where possible, avoid curves, elbows or constrictions liable to limit the flow of liquid to the pump. Install the pump as near to the liquid to be pumped as possible. -
Page 13: Preparation For Starting
Preparation for starting WARNING If the pump is equipped with a vacuum pump, the pump does not have to be filled with the pumped liquid. DANGER Before operating the pump, check that all parts of the system have been correctly installed and that all safety devices are operative. -
Page 14: Check Oil Level In Engine
WARNING Filling up the fuel, engine MUST be switched off. Check oil level in engine WARNING Hot oil and components can cause personal injury. Do not allow hot oil or hot components to contact the skin. Note Perform this maintenance engine must be stopped 1. -
Page 15: Checking Visual Inspection
Checking visual inspection • Check pump of any leakage • Check of any cracks • Check if not missing or damaged parts • Suction and discharge ports are not damaged • Priming Attention: if the pump does not prime, do not operate it for more than 2 minutes to avoid overheating the liquid and damaging the seal. -
Page 16: Starting
Starting 1. Check the pump type (type plate) and the characteristics of the pump unit, such as: rpm, operating pressure, power consumption, operating temperature, direction of rotation, NPSH, etc. Check whether the pump unit is placed in accordance with the instructions. Pay particular attention to the area around the pump unit. - Page 17 10. When motor is started open choke lever (3). Engine pick up nominal speed and start running smoothly. WARNING If vibration occurs during starting, stop the pump immediately and eliminate the cause before starting again. WARNING . If the pump vacuum lift is set too high, cavitation in the pump set is possible and this can be recognized by High levels of vibration, a crackling noise in the pump, decreased capacity and pressure.
-
Page 18: Stopping
Stopping 1. Turn the engine start-Stop switch to position “OFF” (1). Observe whether the system comes to a gradual, smooth stop 2. Close Fuel throttle (2). 3. When you suspect that the liquid is beginning to freeze, drain the pump while the medium is still in the liquid state... -
Page 19: 10 Draining The Pump When There Is Danger Of Freezing
10 Draining the pump when there is danger of freezing WARNING If there is a danger of freezing, a pump used to pump a liquid that may freeze must be drained (while at a standstill). 1. Turn off the engine and open draining port (1). 2. -
Page 20: 11 Troubleshooting
11 Troubleshooting WARNING In the event of a malfunction or abnormal operation, shut off the pump or pump unit immediately to prevent a dangerous situation and/or damage (possibly severe) to the pump or pump unit. Inform to responsible persons. Determine the cause of the malfunction. Resolve the problem before restarting the pump Problem Possible cause... - Page 21 Foreign matter in the impeller Disassemble pump casing and remove foreign matter Pump vibrates and is Pump is operating with a flow rate Check settings of the valves in the noisy that is too low system and readings on the pressure and vacuum gauges Pump or pipework is not fixed Make sure system pipework is...
