Newall DP8 Manual

Digital readout display
Hide thumbs
Table of Contents

Advertisement

Quick Links

N
NEWALL MEASUREMENT SYSTEMS LTD
DP8
Digital Readout Display

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP8 and is the answer not in the manual?

Questions and answers

Related Manuals for Newall DP8

Summary of Contents for Newall DP8

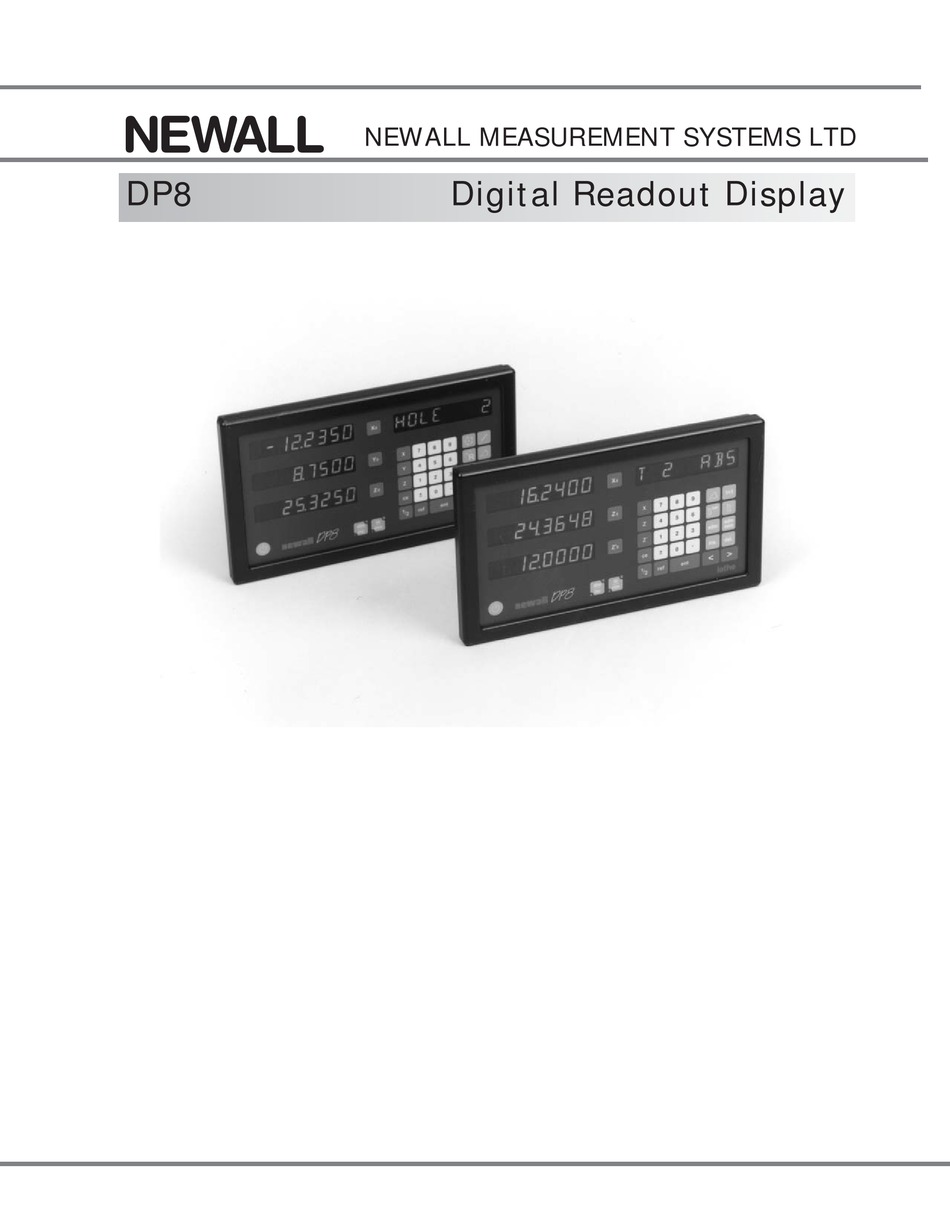

  • Page 1 NEWALL MEASUREMENT SYSTEMS LTD Digital Readout Display...

  • Page 2: Table Of Contents

    Position Pulse Output 5.1.1 Using Incremental Remote Zero and Enter Inputs 5.1.2 Using Absolute 5.1.3 Establishing a datum Troubleshooting Centre Find Digifind (Ref) 10.0 Cleaning 5.3.1 Using a machine marker or workpiece marker 5.3.2 Find Absolute Zero Newall Measurement Systems...

  • Page 3: Introduction

    Introduction 1.0 INTRODUCTION 1.1 EMC and Low Voltage Compliance The DP8 Digital Readout conforms to the relevant European standards for electromagnetic compatibility and low voltage directive as detailed below. BS EN 50081-2: Electromagnetic compatibility. Generic Emission Standard - Industrial Environment BS EN 50082-2: Electromagnetic compatibility.

  • Page 4: Installation

    2.1 Mounting Select the location of the DP8 with due regard of safety and ease of operation. Keep it clear of moving parts and coolant spray. Ensure that the natural ventilation around the digital sending unit (DSU) is not restricted.
  • Page 5 An optional bracket (Part No 600-65590) is available to facilitate the mounting of the DSU directly to the keypad/display. This assembly can be mounted using the standard M10 stud, the swivel mount assembly (Part No 294-37740), the DP8 mounting arm (Part No 294-40050) . The last three items are optional and are detailed on the price list.

  • Page 6: Power Supply

    Equipotential terminal for grounding the DSU to the machine. Refer to section 2.1. Caution. Refer to section 2.2 before connection to the mains supply. Figure 2.3 - Connection diagram for the Digital Sending Unit (DSU) Newall Measurement Systems...

  • Page 7: Switching On

    2.4 Switching On The mains supply switch for the DP8 is mounted on the side of the DSU as shown in Figure 2.3. When you switch on the DP8, the unit will automatically go through a brief self diagnostic routine.

  • Page 8: User Instructions

    3.1 Options The DP8 is available in three models, the DP8 Mill, DP8 Lathe and the DP8 EDM. Each DP8 model is avail- able with an optional auxiliary port. The auxiliary port is used for (i) a remote zero pendant (part number 600-...
  • Page 9 For selecting between Cartesian (x,y,z) and Polar (Length+Angle) co-ordinates Lathe Option Keys Purpose For Taper calculations For using Tool Off-Sets Setting Tool Off-Sets Summing function, vectoring function DP8 Mill 2 Axes DP8 Mill 3 Axes DP8 Lathe 2 Axes DP8 Lathe 3 Axes Newall Measurement Systems...

  • Page 10: Set-Up

    4.0 SET-UP 4.1 Set-Up Introduction The DP8 digital readout display is equipped with a Set-Up Routine. The routine enables the operator to change factory settings in order to increase efficiency and productivity. If the factory defaults are suitable, select the NORMAL option at the end of the Routine to restore the factory defaults.

  • Page 11: Set-Up Defaults

    Set-Up 4.2 Set-Up Defaults Table 1 - Set-Up Defaults Newall Measurement Systems...

  • Page 12: Set-Up Menu

    [ENT] I/P Type The I/P (Input) Type function allows the operator to specify I / P TYPE the type of transducer connected to each axis. The DP8 reads Newall's Spherosyn, Microsyn 10 or Microsyn 5 SEL AXIS Transducers.
  • Page 13 Select the axis to be compensated using the axis keys 1. Machine wear. Continued overleaf... 2. Deflection of the machine due to weight acting on an overhanging section. 3. Misalignment of the scale due to poor installation. Newall Measurement Systems...
  • Page 14 If ARC OFF is set, the [ ARC ] function on the keypad is disabled. > ARC ON ARC is explained further in the DP8 Mill Section, See Options: ARC ON Section 6.0 of this manual. >...
  • Page 15 If PCD OFF is set, the [PCD] func- tion on the keypad is disabled. > PCD ON PCD is explained further in the DP8 Mill Section See Section 6.0 of this manual. Options: PCD ON >...
  • Page 16 “Set-Up” option. SEL AXIS > The example refers to a 3 Axis Lathe. For a DP8 Mill the axis would be [ X ], [ Y ], [ Z ]. 2.000 The maximum envelope width is 2500mm (99”).
  • Page 17 Z AXIS ALL AXES The function provides the operator with a way to control external devices such as relays or PLCs using the DP8. Scroll through available options using the Setting Position Pulse Output to X AXIS, Y AXIS, Z AXIS arrow keys and select the desired axis or ALL AXES activates the feature for the selected axis.

  • Page 18: Standard Functions

    If done in a negative sense, the operator can move to “0.000” which may save a great deal of machining time. Each time you switch to incremental mode, the DP8 will display the position relative to the last reset position while in the incremental mode.
  • Page 19 Press the [ ABS/INC ] key to return the ABS mode. A B S 150.000 150.000 Using the DP8 display in the manner given above can save considerable time as the operator can avoid time consuming math calculations. Newall Measurement Systems...

  • Page 20: Centre Find

    If the machine has moved beyond 0.2500" (6mm) - Spherosyn [0.1000" (2.5mm) - Microsyn], Digifind allows a quick means to find the datum if lost. The DP8 will maintain the position for at least 30 days, the life of the battery back-up.

  • Page 21: Find Absolute Zero

    Position the machine to within 6mm (0.2500”) for Select FIND 0 by pressing [ENT]. Spherosyn and 2.5mm (0.1000”) for Microsyn, of the Select the axis by using the axis datum. “Find” the reference. Pre-Set or Re-Set key. The original datum is reset. Newall Measurement Systems...

  • Page 22: Sub Datums (Sdm)

    The DP8 can store up to 199 SDM (Sub-Datum) positions, or machining steps, in non-volatile memory. The positions remain in memory even if the power has been turned off. Using SDM allows the operator to work to zero by calling up stored dimensions, instead of "working up" to print dimensions.
  • Page 23 Alternatively, use the [SDM] key to select a new SDM. NOTE: If the next move is Incremental, move to the zero position, select a new SDM number, and store the position with [SDM ZERO] 0.0000 To exit SDM function, select [ABS/INC]. 0.0000 Newall Measurement Systems...

  • Page 24: Method 2 (Manual Mode)

    To insert a Job Number SDM 10 Select the first Sub Datum in the sequence to be grouped e.g. SDM10 INS SDM ins. Press INS key. INS JOB? > Press the arrow key to display Insert Job. Confirm with [ENT]. Newall Measurement Systems...
  • Page 25 The procedure is similar to finding a Sub Datum, except as follows: SDM NO? Enter the Sub Datum function by pressing the SDM key. The message screen prompts for the Sub Datum number. Pressing the right arrow key changes the > message screen to ‘JOB NO?’ Newall Measurement Systems...

  • Page 26: Editing Sub Datums And Job Number

    SDM is retained. To delete a Job Number Follow the above sequence except scroll the message screen, using the arrow keys, to display the Job Number to be deleted instead of the Sub Datum number. Newall Measurement Systems...
  • Page 27 Again, all the higher numbered Sub Datums will be shifted one place up and any stored data in SDM 199 will be lost. Proceed to enter the sub datum as described in Sections 5.4.1 or 5.4.2 Pressing [ ABS/INC ] will exit the function. Newall Measurement Systems...

  • Page 28: Datahold (Display Off)

    Selecting inch or millimetre display applies to all dimensions. For example, if you are in millimetre display, whenever you enter dimensions you should also use millimeters. When you switch on the DP8, it will display in the same unit of measurement that you set when you last used the unit.
  • Page 29 The hole read Zero. This is the first hole location. locations will always reference 0,0. Use the arrow keys to display co-ordinates for HOLE < > subsequent holes in the routine. Work to zero for each hole location. Newall Measurement Systems...
  • Page 30 It is possible to machine along the inside or outside of the arc. Arc Contouring can be used in three planes: XY, XZ or YZ. The vertical planes (XZ, YZ) are only available if using a 3-axes DP8 Mill. EXAMPLE:...

  • Page 31: Line Hole

    The larger the increment, 0.1000 the rougher the arc and the fewer points calculated. The DP8 displays the distance to Point 1. The example > assumes the operator is at absolute zero. If not, the num- bers displayed will be the calculated axes values, plus the -1.3904...

  • Page 32: Polar Co-Ordinates

    Cartesian co-ordinates (X,Y,Z) to Polar (Length + Angle) co-ordinates for any plane XY, XZ or YZ. Pressing the switches between the two displays. can be selected from the Absolute, Incremental or Sub Datum modes. Assume the adjacent Cartesian (x,y,z) co-ordinates are displayed 20.0000 15.0000 Newall Measurement Systems...
  • Page 33 Pressing the Polar key again returns the display to Cartesian co-ordinates. NOTE: Pressing the [ Xo ] key in Polar mode will reset the argument to zero, i.e. X and Y both zero in cartesian co-ordinates. Newall Measurement Systems...

  • Page 34: Lathe Functions

    The first tool entered in Tool Offsets is always from the face and enter the Zero value considered to be the Reference Tool. All other tools entered are offset in relation to the difference in length and width as compared to Tool 1. Newall Measurement Systems...
  • Page 35 X display. For the Z, take a facing cut at a known dimension and enter the value in the Z display. Other tools will then be referenced to the same datum. Pressing the [TOOL USE] key again exits the function. Newall Measurement Systems...
  • Page 36 The message screen will display the angle of the X and Z 34.788 co-ordinates relative to the X and Z datums. 32.992 47.490 Pressing the [ TAPER ] key returns to the normal display. Press Taper key and enter Taper mode. Newall Measurement Systems...

  • Page 37: Summing

    ° - 90° relative to the part cosΘ) and (X + Z sinΘ) where Z represents the compund scale reading. Vectoring has to be initially selected in the Set-Up routine. (Refer to Section 3.2) 10.0 10.866 10.000 10.000 10.0 11.0 1.000 Z’ (dia) Newall Measurement Systems...
  • Page 38 Pressing the [ 1+1 ] icon returns to the original (non 10.000 vectored) axes display. 10.000 NOTE: As for summing (Section 7.3), axis displays can be zeroed or loaded with a value in the 1.000 vectored mode. Z’ Newall Measurement Systems...

  • Page 39: Auxiliary Output Option

    8.11 Purpose The Position Pulse Output function on the DP8 provides a means by which external devices such as relays or programmable logic controllers (PLC’s) can be used to control a machine from the DP8. Only ow voltage connections may be made to the auxiliary input/output of the DP8.
  • Page 40 Figure 8.4 illustrates all axis operation. The width of the output pulses may be set from 2ms up to 120ms. In this mode of operation the DP8 may be easily connected to a PLC for control of one, two or three axes. Newall Measurement Systems...
  • Page 41 Confirm each axis with (ENT). POSIT- 2 35.000 10.000 140.000 Set position 2 for each axis using the axis Use the right arrow key to move to next setting. > keys and keypad. Confirm each axis with (ENT). Newall Measurement Systems...

  • Page 42: Remote Zero And Enter Inputs

    X axis be set to 25.0 whilst making fine adjustments at some distance away from the DP8. Press [ X ] [ 2 ] [ 5 ] on the DP8 keypad and, when ready, press the remote [ENT] switch.

  • Page 43: Troubleshooting

    If the same message appears, the fault is likely to be in the DP8 unit and you should contact your local dealer. N.B. The unit must be switched off then on again to remove the “SIG FAIL"...
  • Page 44 NEWALL MEASUREMENT SYSTEMS LTD HEAD OFFICE Newall Measurement Systems Ltd. Technology Gateway, Cornwall Road South Wigston Leicester LE18 4XH United Kingdom Telephone: +44 (0)116 264 2730 Facsimile: +44 (0)116 264 2731 Email: sales@newall.co.uk Web: www.newall.co.uk Newall Electronics, Inc. 1778 Dividend Drive...
