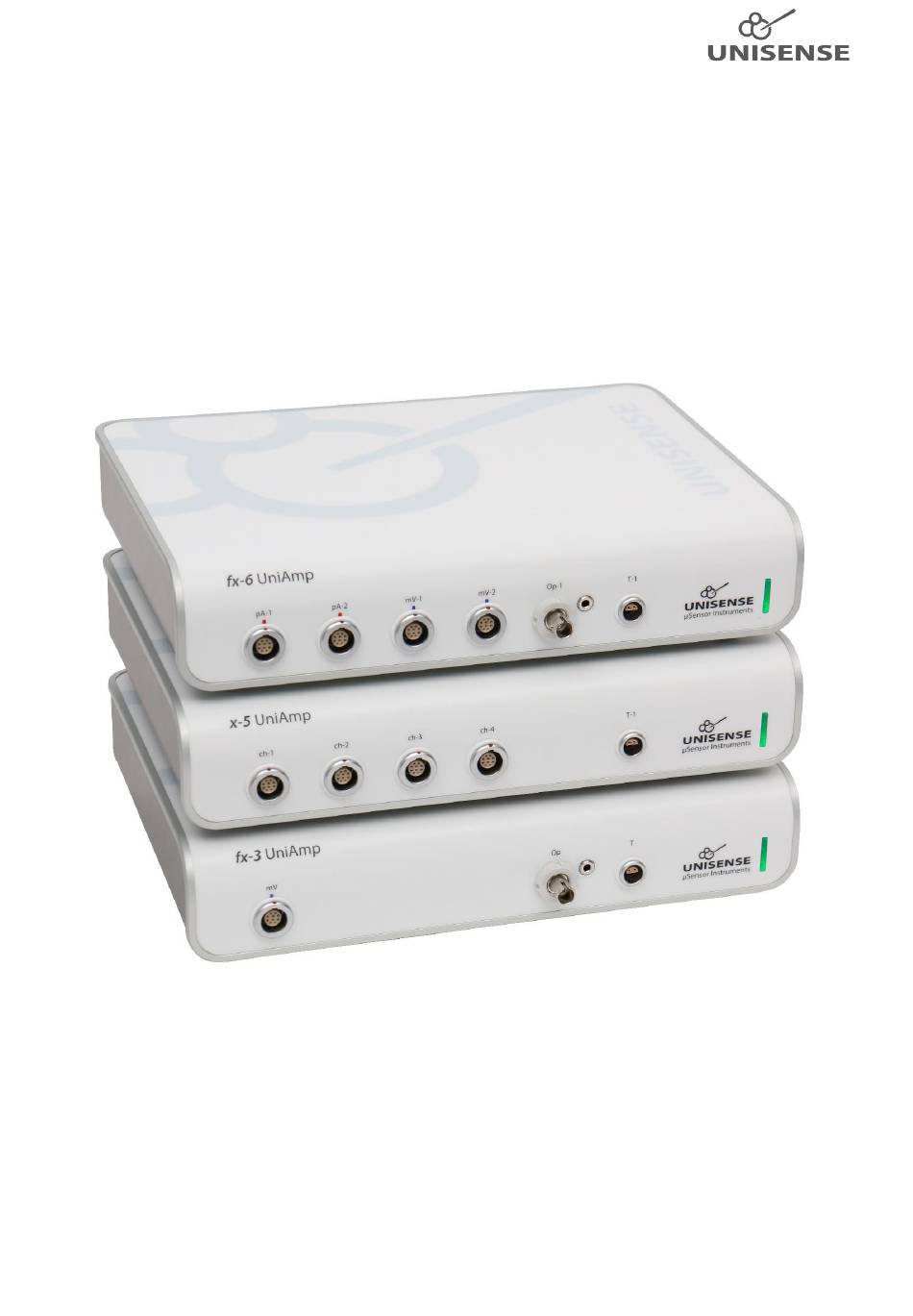

- Page 1 Unisense UniAmp Multichannel Systems User Manual UNIAMP MULTICHANNEL SYSTEM MANUAL Copyright © Unisense A/S Version 1.1, August 2020...
-
Page 2: Table Of Contents
Table of Contents Scope of the manual ........................3 Warranty and liability ........................3 Repair or adjustment ......................3 Support, ordering, and contact information ................... 3 Overview ............................3 Operating and setup conditions ..................... 4 Installation and setup of UniAmp and software ................4 Installation of the SensorTrace Suite software ............... -
Page 3: Scope Of The Manual
2.1 Repair or adjustment Equipment that is not covered by the warranty will, if possible, be repaired by Unisense with appropriate charges paid by the customer. In case of return of equipment please contact us for return authorization. -
Page 4: Operating And Setup Conditions
The meters offer temperature compensation for all amperometric channels with a range of ± 3°C from the calibration temperature. This will work if a temperature sensor is connected. The UniAmp meters are USB-powered and fully integrated with the Unisense SensorTrace Suite software, allowing any combination of Unisense electrochemical sensors and optode technology. -
Page 5: Installation Of The Sensortrace Suite Software
Configuration window Figure 2: Unisense UniAmp service in the Windows Notification Area. Click the up-arrow to show hidden icons, then click the UniAmp service icon to open it. Only channels with a sensor connected, will be shown. Here sensors for H S, pH and O connected and shown. -
Page 6: Getting Started
The UniAmp instruments are powered from the PC through the USB cable and are operated through the Unisense UniAmp service in the Notification Area (Figure 2). Just connect the UniAmp to the PC and settings for the connected sensors will be available in the UniAmp service window. -
Page 7: Adjusting The Offset
(see the Nitrous Oxide Sensor Manual. To be downloaded at: https://www.unisense.com/manuals/). 7.4 Adjusting the offset The Offset may be set manually. It may be used to displace the signal in a positive or negative direction (Figure 3). -
Page 8: Polarizing Amperometric Sensors Without A Pc Connected
O sensor (see 7.3 Manually setting the sensor polarization). The 6 pin connector for the legacy Unisense Multimeter requires and adaptor to be used with the UniAmp instruments. If using sensors via adaptors, the sensor polarization has to be set manually, using the Unisense pop-up window residing in the Windows Notification Area (see 7.3 Manually... -
Page 9: Software
The Analog out must be activated in the UniAmp service window (Figure 3). Contact sales@unisense.com if you need the adaptor. For connection to non-Unisense equipment, contact Unisense first, to avoid damage to the instrument. Figure 5: Connectors for Analog and Digital in and output and for the grounding cable (right). -
Page 10: Auxiliary Equipment
11 Auxiliary equipment Unisense provides solutions for a range of experimental setups, including bulk measurements, microprofiling and micro-respiration. Depending on your measuring requirements, you may need additional equipment for positioning, calibration, sample fixation, etc. Please visit https://www.unisense.com/ for inspiration and contact Unisense for any questions you may have. -
Page 11: Oxygen Optodes
Figure 6: The Start Experiment window in SensorTrace Suite. The dropdown menu for channel pA-1, (O ) is unfolded to show the available units. 12.2 Oxygen optodes With the UniAmp it is possible to automatically correct the sensor signal for changes in temperature. The temperature use for correction may be: •... -
Page 12: Loss Of Connection To The Uniamp Because Of Usb Power Saving
Updates are important for keeping Windows secure. Therefore, if you choose to disable or delay updates, make sure to allow Windows to check for updates now and then. 13.1.2 Loss of connection to the UniAmp because of USB power saving Windows may turn USB connections off in order to save power. - Page 13 In some cases, electrical noise is emitted from other equipment in the vicinity (constant temperature bath, air conditioning, oven etc.). Interference of this type will often be periodic, e.g. noise emitted when equipment is switching on or off. If such problems occur, try switching nearby equipment off one by one, to identify which equipment is generating the noise.
