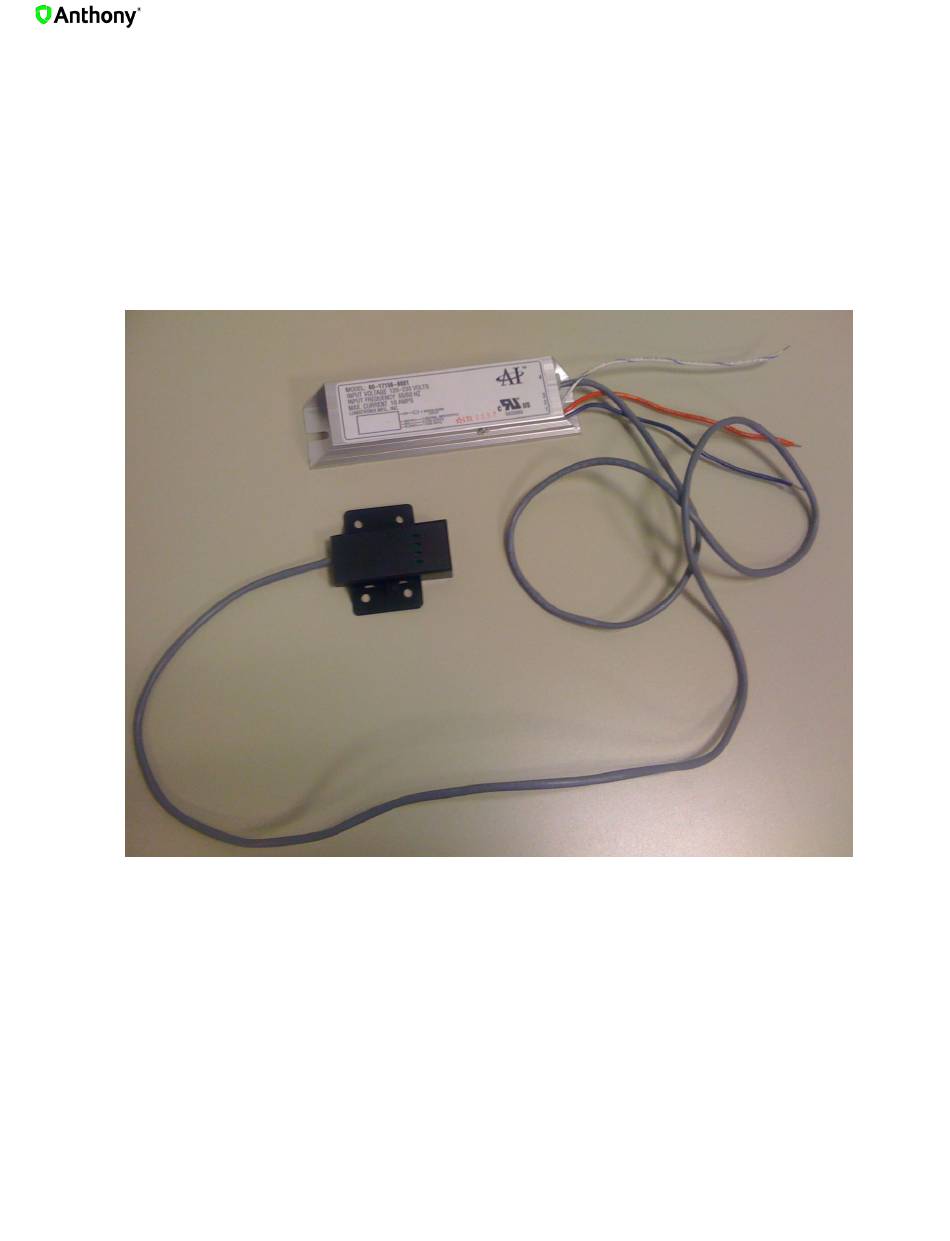

- Page 1 Anthony Smart Controller Installation Instruction (For All 101, 401, 1001 Model Frames) IN - 0031 03/13/2019 IN-0031_G 1 OF 8...
-
Page 2: Table Of Contents
Anthony Smart Controller Installation Instruction for All 101, 401, 1001 Model The purpose of this document is to provide a guide for easier installation of the Anthony Smart Controller Table of Contents 1. Features and Updates 2. Controller Unit Installation 3. -
Page 3: Features And Updates
1.Features and Updates 1. Features a. Controller units and sensor Plug and Play b. Adjustability for Controller 2. Updates a. Connection improvements have been made for Serviceability (Plug and Play connectors) 03/13/2019 IN-0031_G 3 OF 8... - Page 4 2.Controller Unit Installation for 101 Note Connection improvements have been made for Serviceability (Plug and Play connectors ) See Steps A - K **BEFORE MOUNTING SENSOR ON FRAME, MAKE SURE THE HOLD OPEN ARM DOES NOT INTERFERE WITH THE SENSOR LOCATION Remove sealing plate by inserting a flat **VISTA DOORS ONLY –...
-
Page 5: Controller Unit Installation
Controller Unit Installation for 401, 1001 Mount the smart controller unit on the top of the raceway using #8 x ¼” long thread forming screws. As shown above. Remove raceway cover slip by inserting a Remove raceway slip as needed. Remove flat screwdriver under the retaining strip raceway bracket with Phillips screwdriver if starting at the top as illustrated. -
Page 6: Sensor Board And Plastic Housing Installation
3.Sensor Board and Plastic Housing Installation STANDARD HOUSING INSTALLATION Align the sensor board holes with the housing mounting holes. Connect the gray wire connector into the sensor board circuit as shown. CABLE CONNECTOR Using the Plug and Play connectors, Make sure the gray wire is securely fastened to the sensor board. -
Page 7: Standard Frame And Sensor Preparation
4.Standard Frame & Sensor Preparation STEP 1 Begin wiring the smart controller following the wiring schematic on page 5. The sensor cable must travel from the center mullion to the top of the channel shown below . FRAME AND SEAL FOAM WITH SLIT RACEWAY CUT OUT... -
Page 8: Wiring Schematic
5.Wiring Schematic 03/13/2019 IN-0031_G 8 OF 8... -
Page 9: Adjustment Settings
6.Adjustment Settings Operating Instructions: The green light indicates when power is being applied to the unit. The controller is pre-set for standard operating conditions, but may be adjusted with a potentiometer to accommodate colder or warmer refrigerators. Turn the potentiometer clockwise, using a small screwdriver, to provide more heat, or HIGH counterclockwise to provide less heat, at a... -
Page 10: Specifications
7.Specifications MODEL: 60-17156-0001 INPUT VOLTAGE: 120 – 230 VOLTS INPUT FREQUENCY 50/60 HZ MAX. CURRENT 10 AMPS UL CERTIFICATION NUMBER: SA33080 WIRE COLORS ARE: GRAY, WHITE/BLU, RED AND BLUE/WHITE 4 SENSOR BOARD 4 SENSOR BOARD CIRCUIT CIRCUIT HUMIDITY HUMIDITY WHT/BLU WHT/BLU 3 (NEUTRAL, INPUT/OUTPUT) 3 (NEUTRAL, INPUT/OUTPUT) - Page 11 8.Revison REV Originator Description of change Effective Date Initial release Reformat 7/27/2010 Reformat 11/03/2010 Reformat 03/15/2011 Sam Fisher Reformat 03/05/2012 Sam Fisher Reformat & new logo 05/21/2013 KHolst Add purpose & organized workflow 03/13/2019 03/13/2019 IN-0031_G 11 OF 8...
