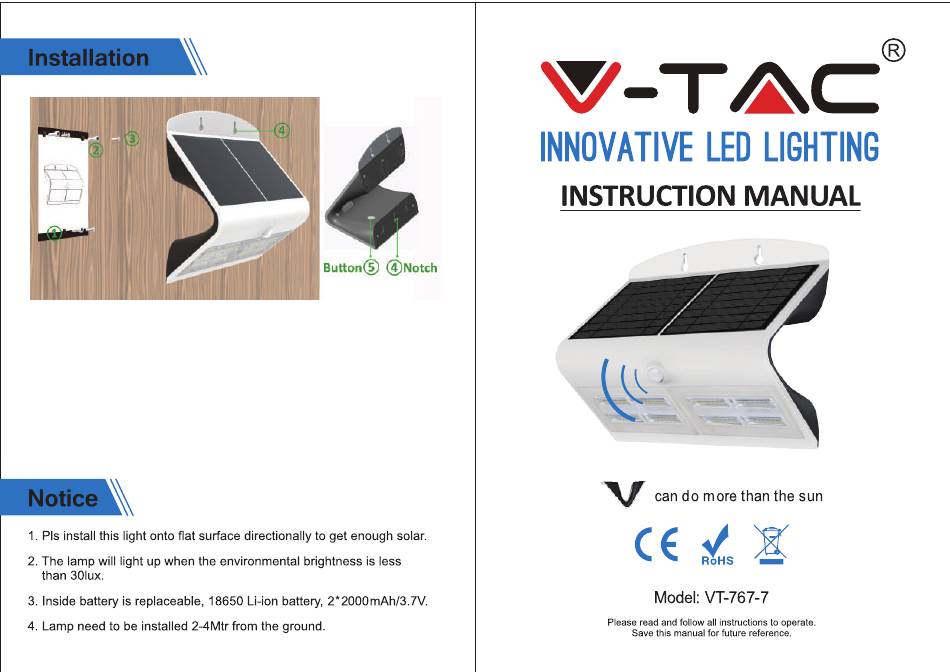

1. Please use the card to measure hole position correctly and
drill 3 holes.
2. Fix 3 expansion plugs into the holes.
3. Fix 3 screws into the explansion plugs with a spare space.
4. Insert the notch to the lower screw and fasten the whole lamp well.
5. Press the back button to adjust to the demanded working mode.
WEEE Number:80133970
Advertisement
Table of Contents
Related Manuals for V-TAC VT-767-7
Summary of Contents for V-TAC VT-767-7
- Page 1 1. Please use the card to measure hole position correctly and drill 3 holes. 2. Fix 3 expansion plugs into the holes. 3. Fix 3 screws into the explansion plugs with a spare space. 4. Insert the notch to the lower screw and fasten the whole lamp well. 5.
- Page 2 Installation Height Installation height ≤4m Detection Area ≤10 m Pls press the Button to adjust to different working mode: Press 2nd time for Mode B. Press 1st time for Mode A. Press 3rd time for Mode C. Press 4th time for off. Mode A: Automatically turns on at the dusk (<30lux) and remains 20%...
