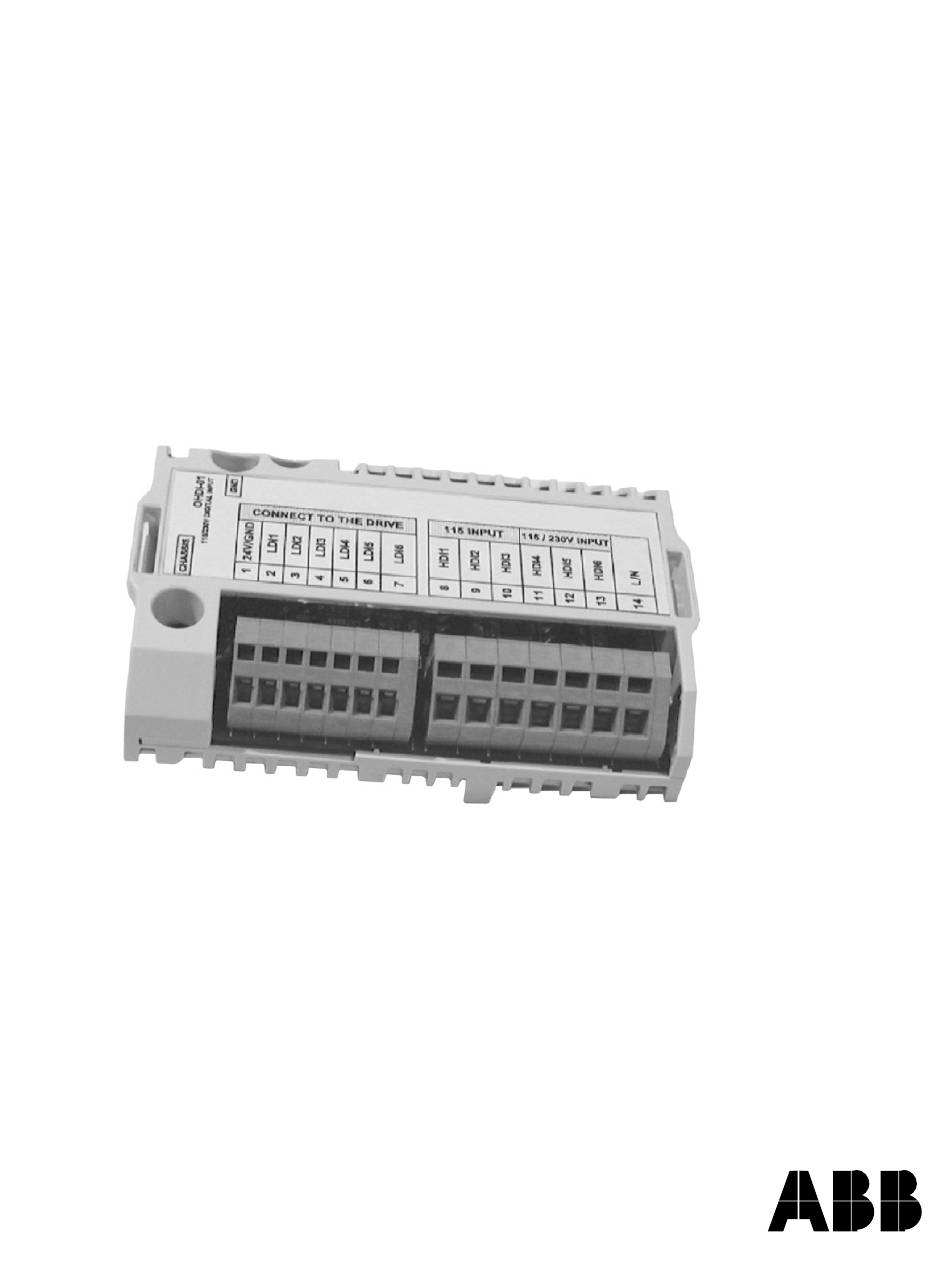

- Page 1 Drive Low Voltage AC Drives User’s Manual 115/230 V Digital Input Module OHDI-01 OHD4...
-
Page 2: Safety
115/230 V Digital Input Module – OHDI-01 Safety WARNING! All electrical installation and maintenance work on the drive should be carried out by qualified electricians only. WARNING! The drive and adjoining equipment must be properly grounded. WARNING! Do not attempt any work on a powered drive. After... -
Page 3: Table Of Contents
115/230 V Digital Input Module – OHDI-01 Table of Contents Safety ............2 Use of Warnings and Notes . -
Page 4: Installation
• Up to six 115 Volt inputs • Up to three 230 Volt inputs Module Layout OHD4 Low Side High Side 24 VDC 115/230 Outputs (6) Digital Inputs Compatibility The OHDI-01 is compatible with all ACS550, ACH550 and ACS800 drives. Installation... -
Page 5: Installing The Module
115/230 V Digital Input Module – OHDI-01 Installing the Module Delivery Check The option package contains: • OHDI-01 module • two mounting screws • This manual Mounting WARNING! Follow the safety instructions given in this guide and in the drive manual: ACS800 Hardware Manual, ACS550 User’s Manual or ACH550 User’s Manual. - Page 6 To determine the proper routing for wiring, refer to the following sources: • The "Terminal Designations" section below for the OHDI-01 module’s terminal designations. • The drive’s terminal designations in the appropriate manual: - ACS550 User’s Manual...
- Page 7 115/230 V Digital Input Module – OHDI-01 Connections overview: ACS550/ Normal (Sourcing) ACH550 ACS800 Configuration 7 (24V) 10 (+24V) OHDI-01 Module 11 ( 1 (24 12 ( DCOM 13 ( 14 ( 15 ( 16 ( 17 ( 18 (...
- Page 8 115/230 V Digital Input Module – OHDI-01 Terminal Designations Use the following table for reference when wiring terminals. Identification Typical Connection Digital Input Terminal Low Side ACS550 / ACH550 ACS800 24 V / 10 (+24V) or 11 ( 7 (24V)
-
Page 9: Technical Data
115/230 V Digital Input Module – OHDI-01 Technical Data Dimensions Module dimensions are: Ref. Enclosure OHD5 Degree of Protection The module is mounted inside the drive enclosure. Refer to the drive’s rating. Ambient Conditions The module is mounted inside the drive enclosure. Refer to the drive’s requirements. - Page 10 115/230 V Digital Input Module – OHDI-01 Specifications Module Specifications • Module is UL/CSA-approved. • Module complies with EMC standards EN 50081-2 and EN 50082-2. • Input voltage: 115 to 230 volts +10% • Max. current leakage in digital off state: 2 mA.
- Page 12 ABB Oy ABB Inc. AC Drives Drives and Power Electronics P.O. Box 184 16250 West Glendale Drive FIN-00381 HELSINKI New Berlin, WI 53151 FINLAND Telephone +358 10 22 11 Telephone 262 785-3200 Telefax +358 10 22 22681 800 243-4384 Internet http://www.abb.com...
