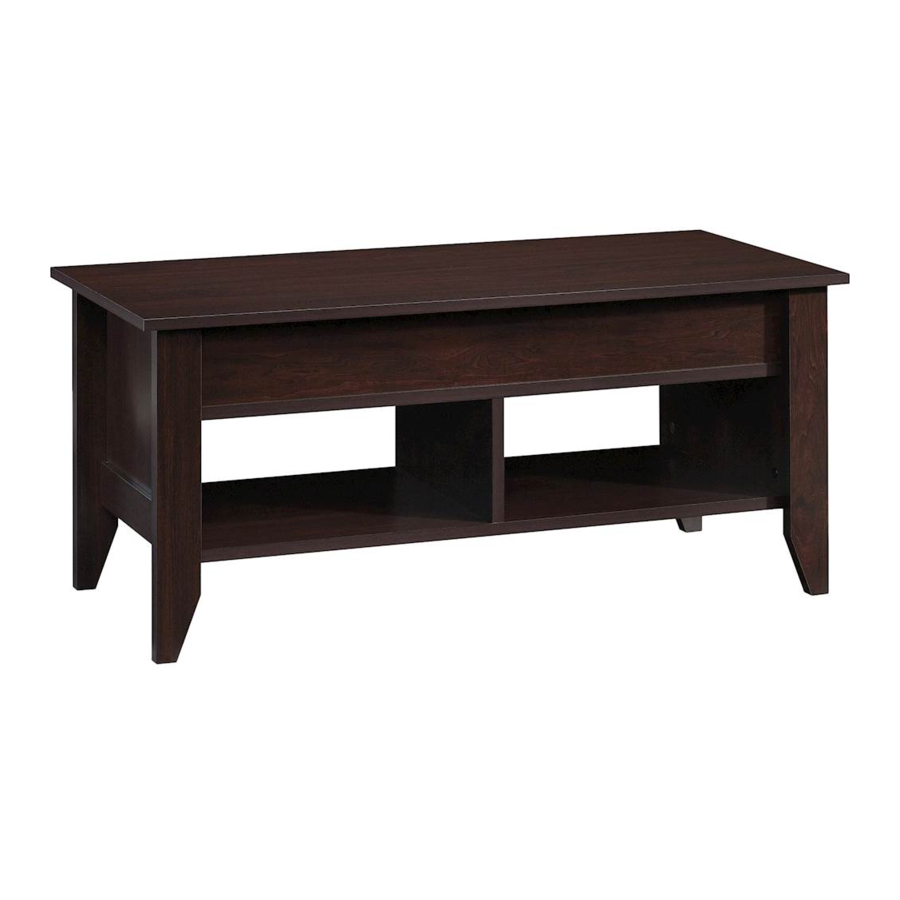

Sauder 422197 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
sauder.com
Lift-Top Coff ee Table
Shoal Creek Collection | Model 422197
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
Guaranteed to hold
other beverages, too.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-19
Français pg 20-22
Español pg 23-25
Lot # 505854
07/06/17
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987

Advertisement

loading
Need help?

Need help?

Do you have a question about the 422197 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sauder 422197

Summary of Contents for Sauder 422197

  • Page 1 Shoal Creek Collection | Model 422197 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Need help? Visit Sauder.com to view video assembly tips or chat with a live rep. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Prefer the phone? Call 1-800-523-3987.
  • Page 2 Use this part identifi cation to help identify similar parts. RIGHT END (1) SHELF (1) TOP (1) LEFT END (1) LEFT FRONT/RIGHT REAR LEG (2) FRONT PANEL (2) BOTTOM (1) RIGHT FRONT/LEFT REAR LEG (2) END MOLDING (2) UPRIGHT (1) STRETCHER (1) Page 2 422197 www.sauder.com/services...
  • Page 3 Part Identifi cation www.sauder.com/services 422197 Page 3...
  • Page 4 BLACK 9/16" LARGE HEAD SCREW - 16 BLACK 9/16" FLAT HEAD SCREW - 4 BLACK 3/4" MACHINE SCREW - 4 BLACK 3/4" PAN HEAD SCREW - 2 113S BLACK 1-15/16" FLAT HEAD SCREW - 20 BLACK 1-1/4" MACHINE SCREW - 4 Page 4 422197 www.sauder.com/services...
  • Page 5 Assemble your unit on a carpeted fl oor or on the empty å carton to avoid scratching your unit or the fl oor. To begin assembly, push a SAUDER TWIST-LOCK® å FASTENER (7F) into the large holes in the SHELF (E) and FRONT PANELS (J).
  • Page 6 Push eight HIDDEN CAMS (1F) into the exact holes shown å in the ENDS (A and B). (8 used) Arrow (8 used) Arrow Arrow Hole The arrow in the HIDDEN CAM must point toward the hole in the edge of the board. Page 6 422197 www.sauder.com/services...
  • Page 7 I S T - I S T - L O F A S L O C F A S T E N K ® T E N ® E R S E R S Edge with holes www.sauder.com/services 422197 Page 7...
  • Page 8 Step 4 Fasten the LEFT END (B) to the SHELF (E) and FRONT å How to use the SAUDER TWIST-LOCK® FASTENER PANELS (J). Tighten fi ve TWIST-LOCK® FASTENERS. 1. Insert the dowel end of the FASTENER into the hole of the adjoining part.
  • Page 9 Use six BLACK 1-15/16" FLAT HEAD SCREWS (113S). Fill the holes 1/4 to 1/2 full with GLUE. Caution Inspect the parts thoroughly before assembling. Disassembly of glued parts is extremely diffi cult. 113S BLACK 1-15/16" FLAT HEAD SCREW (6 used in this step) www.sauder.com/services 422197 Page 9...
  • Page 10 C A M S u r D E N H I D 113S BLACK 1-15/16" FLAT HEAD SCREW (3 used in this step) Page 10 422197 www.sauder.com/services...
  • Page 11 NOTE: If the MOLDING comes up off of the SCREWS, remove it and slide it on again. å Apply pressure with your hands as you guide the MOLDINGS over the SCREWS and onto the ENDS. Shoulder BLACK 9/16" FLAT HEAD SCREW (4 used in this step) www.sauder.com/services 422197 Page 11...
  • Page 12 NOTE: You will tighten the lower HIDDEN CAMS in the å next step. Caution Inspect the parts thoroughly before assembling. Disassembly of glued parts is extremely diffi cult. Fill the holes 1/4 to 1/2 full with GLUE. Page 12 422197 www.sauder.com/services...
  • Page 13 Using your hammer, gently tap a CAM COVER (12P) onto å each HIDDEN CAM in the ENDS (A and B). Tighten the HIDDEN CAMS in the ENDS. To cover screws (14 used) (8 used) To cover HIDDEN CAMS www.sauder.com/services 422197 Page 13...
  • Page 14 TOP exactly as shown. Push six BUMPERS (2M) into the holes in the TOP (I). å BLACK 9/16" LARGE HEAD SCREW (6 used in this step) The holes are closer to this edge. (6 used) Page 14 422197 www.sauder.com/services...
  • Page 15 Fasten the SUPPORT BRACKETS (37G) to the LIFT å TABLE MECHANISMS (23M). Use four WASHERS (13M), NUTS (24M), and BLACK 3/4" MACHINE SCREWS (92S). NOTE: Use the adjustable wrench in this step. å BLACK 3/4" MACHINE SCREW (4 used in this step) www.sauder.com/services 422197 Page 15...
  • Page 16 You should start each SCREW a few turns before completely tightening any of them. These four holes must be here. Do not insert SCREWS into these holes. Do not insert SCREWS into these holes. BLACK 9/16" LARGE HEAD SCREW (10 used in this step) Page 16 422197 www.sauder.com/services...
  • Page 17 SCREWS (85S) through the exact holes shown in the LIFT TABLE MECHANISMS (23M) and into the holes in the ENDS. NOTE: Do not overtighten the SCREWS (85S). å BLACK 3/4" PAN HEAD SCREW (2 used for the BUSHINGS) www.sauder.com/services 422197 Page 17...
  • Page 18 If you're doing this to NUTS (24M), and BLACK 1-1/4" MACHINE SCREWS (93S). help a friend, don't leave without a bite. NOTE: Use the adjustable wrench in this step. å BLACK 1-1/4" MACHINE SCREW (4 used in this step) Page 18 422197 www.sauder.com/services...
  • Page 19 NOTE: Please read the back pages of the instruction booklet for important safety information. å This completes assembly. Clean with your favorite furniture polish or a damp cloth. Wipe dry. å And to celebrate, why not share your success story? 50 lbs. 25 lbs. 40 lbs. total www.sauder.com/services 422197 Page 19...
  • Page 20 Modèle 422197 Table basse à dessus relevable Utilisez les instructions d’ a ssemblage en français avec les NOUS SOMMES LA POUR VOUS AIDER! schémas étape par étape du manuel d’instruction en anglais. Nous faisons de notre mieux pour nous assurer que votre meuble Chaque étape en français correspond à...
  • Page 21 REMARQUE : Il faudra peut-être utiliser un TOURNEVIS COURT pour cette étape. Pour commencer l'assemblage, enfoncer une FIXATION TWIST-LOCK® SAUDER (7F) dans les gros trous de la TABLETTE (E) et des PANNEAUX Remplir les trous dans l'EXTRÉMITÉ DROITE (A) de 1/4 à 1/2 AVANT (J).
  • Page 22 REMARQUE : Faire attention en alignant les trous dans les MÉCANISMES sur les trous des EXTRÉMITÉS de manière à ne pas endommager les pièces. Il est préférable de donner quelques tours de tournevis à chaque VIS avant de les serrer toutes à bloc. Page 22 422197 www.sauder.com/services...
  • Page 23 Modelo 422197 Mesita para café con tapa superior Use estas instrucciones de ensamblaje en español junto con las ESTAMOS AQUI PARA AYUDAR! fi guras paso-a-paso provistas en el folleto inglés. Cada paso Tratamos de asegurar que su mueble llega en condición excelente.
  • Page 24 NOTA: Usted puede necesitar la utilización un DESTORNILLADOR CORTO para este paso. Para comenzar el ensamblaje, empuje un SUJETADOR TWIST-LOCK® SAUDER (7F) en los agujeros grandes del ESTANTE (E) y de los Llene los agujeros del EXTREMO DERECHO (A) hasta 1/4 a 1/2 PANELES DELANTEROS (J).
  • Page 25 EXTREMOS. NOTA: Tenga cuidado al alinear los agujeros de los MECANISMOS con los agujeros en los EXTREMOS para no dañar ninguna pieza. Debe apretar cada TORNILLO unas vueltas antes de apretar cualquier tornillo fi rmemente. www.sauder.com/services 422197 Page 25...
  • Page 26 Además, el peso y la ubicación del tubo de imagen tienden a causar la inestabilidad de televisores y son propensos a inclinarse hacia adelante. Page 26 422197 www.sauder.com/services...
  • Page 27 à compter de la date d'achat la première fois et qui sont signalés à Sauder dans les limites de couverture de la contre tout défaut de matériaux ou de fabrication des composantes de mobilier Sauder.
  • Page 28 Dear Valued Customer: So, how did it go? Thanks so much for choosing Sauder® furniture. I hope the Set a world record for speed? purchase and assembly process was a positive experience Feeling good about yourself? and you feel good about the furniture you just built. If you Nice.
