ASSEMBLY INSTRUCTIONS

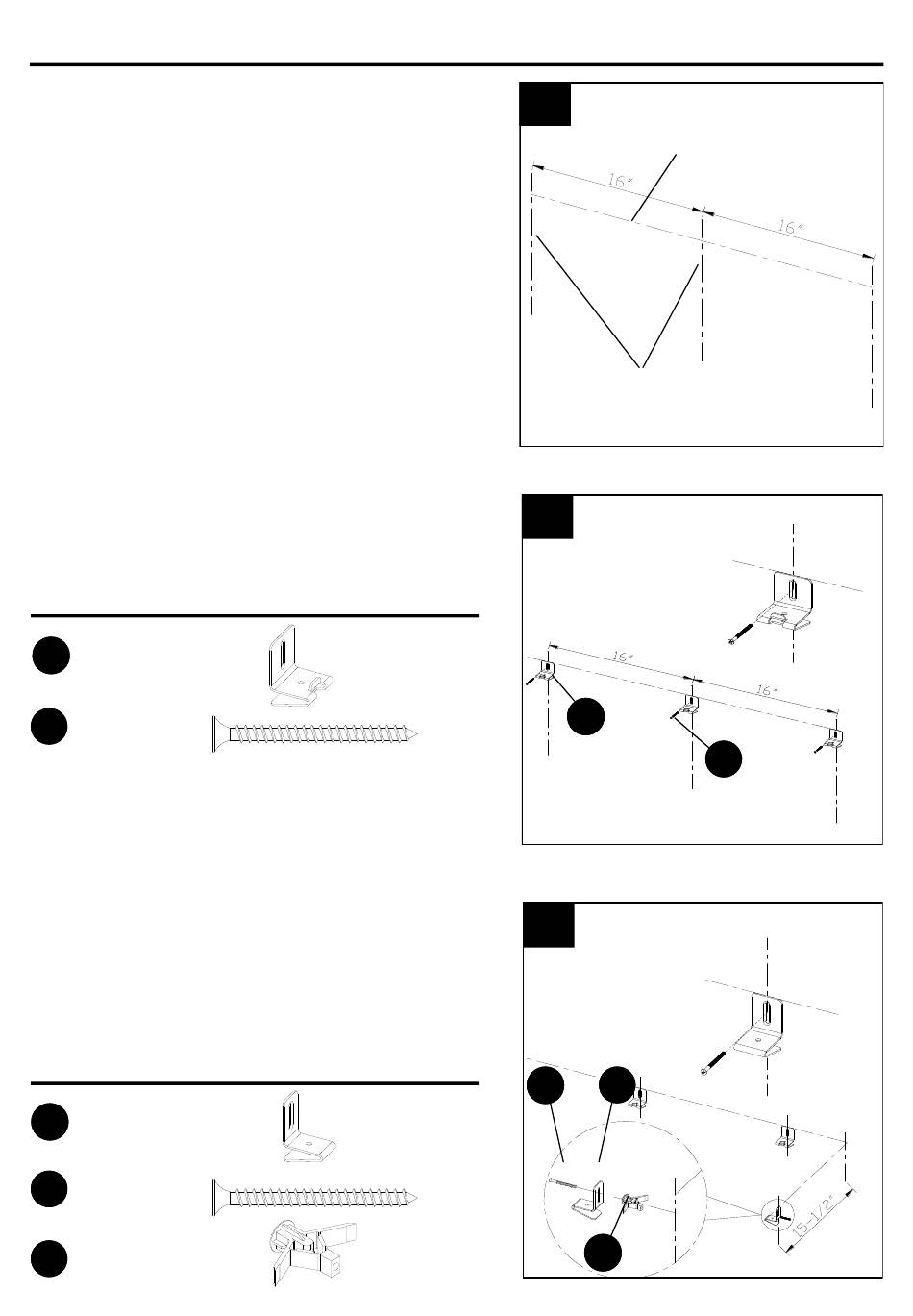

1. Mark out three stud locations in the wall with
stud sensor. Draw a level line at the desired
installation height where you want shelf to
install to.
2. Secure wall bracket (CC) to the wall by screwing
up with M4 x 45 mm wood screw (DD) through it
as shown.
Hardware Used
Wall Bracket
CC
M4 x 45 mm
DD
Wood Screw
2B Side brackets (BB) are required if end of shelf
also meets wall. Attach side bracket (BB) to
the wall by screwing up M4 x 45 mm wood
screw (DD) through it. Side bracket should be
positioned 15-1/2 in. away from the corner.
Use wall anchors (EE) if no stud is present.
Hardware Used
Side Bracket
BB
M4 x 45 mm
DD
Wood Screw
Wall Anchor
EE
1
Stud Locations
2
x 3
CC
x 3
2B
DD BB
x 2
x 2
EE
x 2
6
Level Line
DD
