- Page 1 ASSEMBLY INSTRUCTIONS 60" UPPER HUTCH KIT Lot Code # NEED HELP? Call 1−800−950−4782 www.bushbusinessfurniture.com Part Number A183484A Keep manual for future reference.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION A183484A WARNING Attach hutch as described in the assembly instructions. Improper hutch attachment could cause instability, product collapse, and/or WARNING serious injury. This hutch is intended to be Conecte la alacena según es attached to base units that are descrito en las instrucciones de interconnected. -
Page 3: Exploded View
EXPLODED VIEW A183484A 22UHP60AC 22UHP60MR [ 1 ] S171672 [ 1 ] S171669 [ 1 ] S171673 [ 1 ] S171670 [ 1 ] S183507 [ 1 ] S183532 22UHP60CS [ 1 ] S183577 [ 1 ] S183579 [ 1 ] S183467... -
Page 4: Fasteners / Hardware
FASTENERS / HARDWARE A183484A Fasteners are shown in actual size. los fijadores son demonstrados en su tamaño actual. les attaches sont montrées dans l'échelle grandeur. [ 2 ] H38169 Wood Dowel 8 x 30 [ 10 ] H23370 #10 x 1-1/4" [ 2 ] H38022 KD Bolt... - Page 5 MODEL SPECIFIC A183484A 22UHP60MR [ 10 ] H171234 [ 2 ] H176847 Cover Cap 15mm 22UHP60AC [ 10 ] H171231 [ 2 ] H184044 Cover Cap 15mm 22UHP60CS [ 10 ] H146965 [ 2 ] H184045 Cover Cap 15mm...

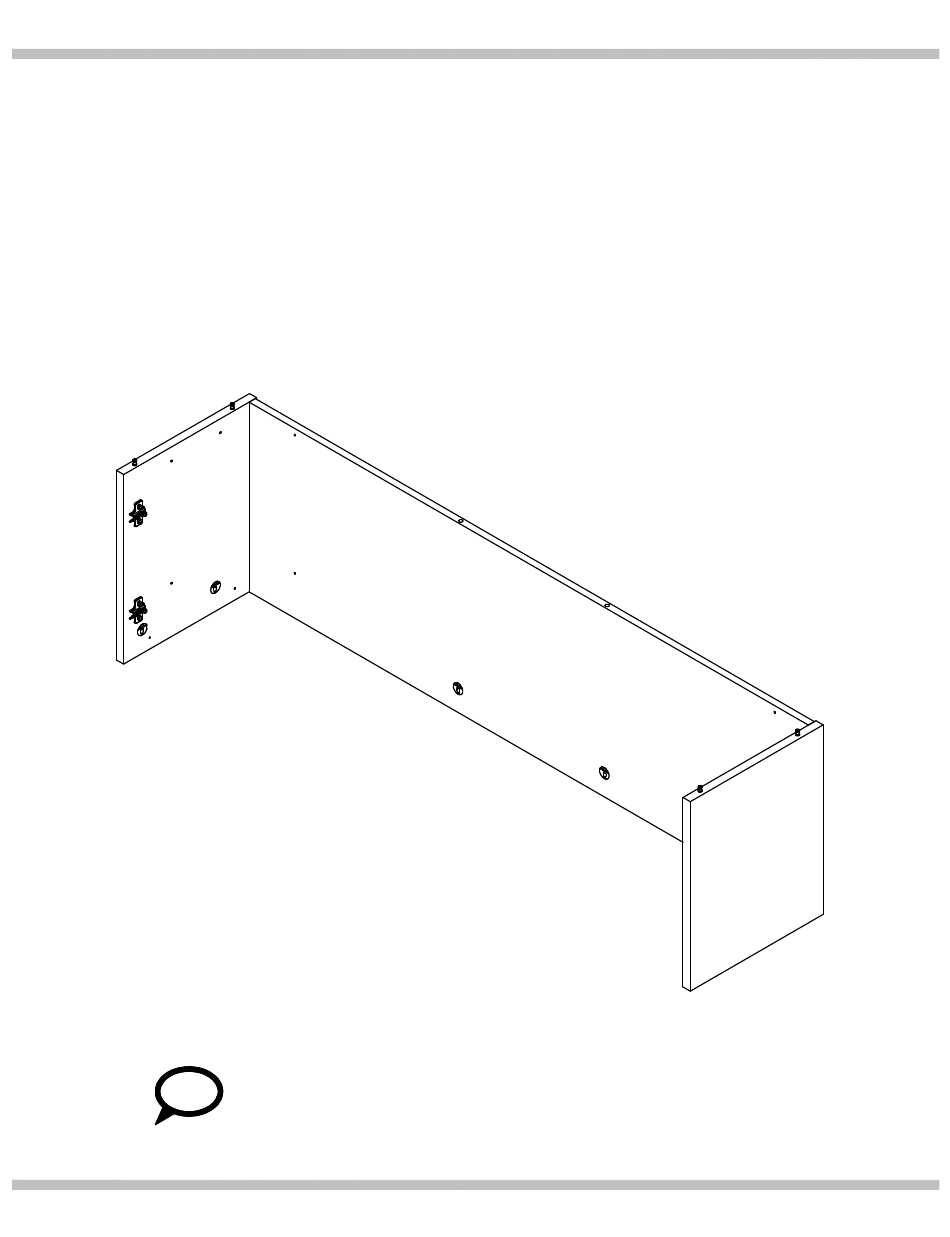

- Page 6 A183484A STEP [ 2 ] KD Bolt [ 4 ] Cover Cap...
- Page 7 A183484A STEP [ 2 ] Wood Dowel 8 x 30 [ 2 ] 15mm DO NOT insert if you purchased: NO inserte si ha comprado: NE PAS insérer si vous avez acheté:...
- Page 8 A183484A STEP Tilt at an angle and then install. Incline hacia un ángulo e instale. Inclinez à un angle et ensuite installer. [ 2 ] Cover Cap...
- Page 9 A183484A STEP [ 4 ] #10 x 1-1/4"...
- Page 10 A183484A STEP [ 2 ] [ 3 ] #10 x 1-1/4" Cover Cap...
- Page 11 A183484A STEP [ 3 ] [ 2 ] #10 x 1-1/4" Cover Cap...
- Page 12 A183484A STEP Bumper (4) per pack [ 1 ] Bumper...
- Page 13 A183484A STEP Bumper (4) per pack [ 1 ] Bumper...
- Page 14 A183484A STEP Maximum Weight: 0 Lbs. Peso Máximo: 0 Libras Poids Maximum: 0 kilogramme Maximum Weight: 77 Lbs. Peso Máximo: 77 Libras Poids Maximum: 34 kilogramme Maximum Weight: 32 Lbs. Peso Máximo: 32 Libras Poids Maximum: 14 kilogramme Maximum Weight: 32 Lbs. Peso Máximo: 32 Libras Poids Maximum: 14 kilogramme...
- Page 15 A183484A STEP To finish installation please refer to individual Instuctions sheets for 22HBP60 and/or 22HLEGSV-03. Para finalizar la instalación, consulte las hojas de instuctions individuales para 22HBP60 y / o 22HLEGSV-03. Pour terminer l'installation s'il vous plaît se référer à instuctions feuilles individuelles pour 22HBP60 et / ou 22HLEGSV-03.
