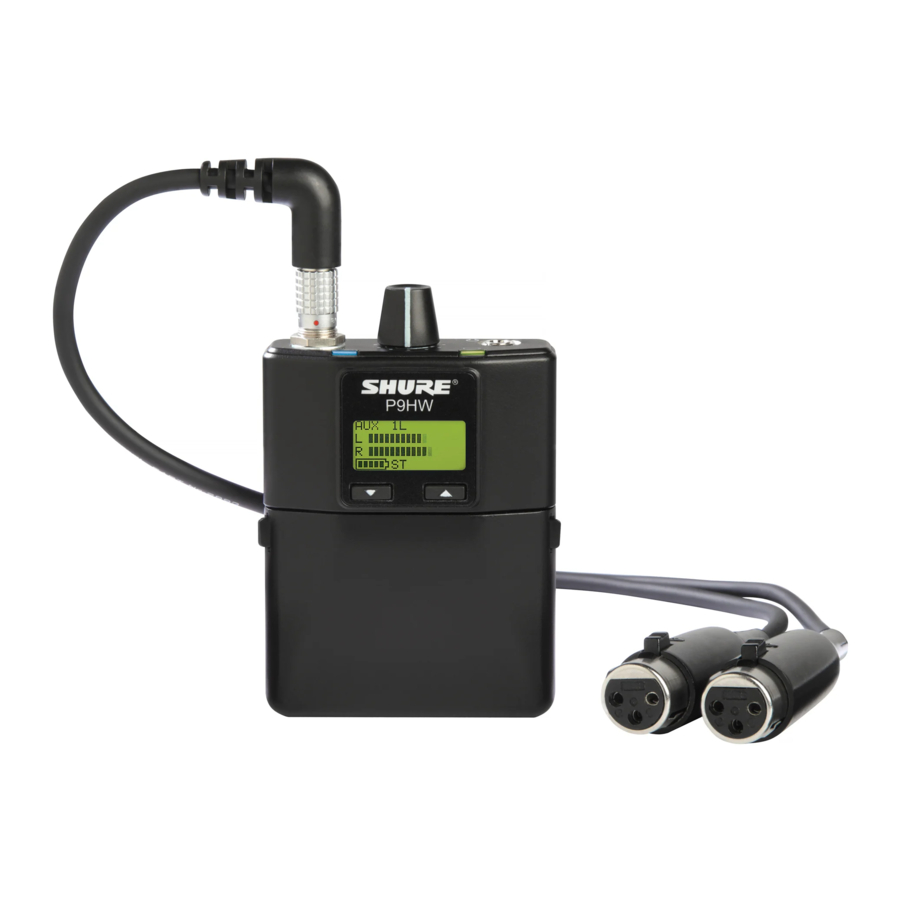

- Page 1 P9HW Wired Bodypack Personal Monitor The Shure wired, two-channel stereo bodypack system, P9HW, user guide. Version: 2.4 (2021-F)
-
Page 2: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS SAFETY PRECAUTIONS Shure SB900A Rechargeable Battery CAUTION Single Bay Charger WARNING Multiple Bay Chargers WARNING Important Tips for Care and Storage of Shure Recharge able Batteries General Description Battery Life P9HW Bodypack Pin Assignments Setup Specifications Audio Settings... -
Page 3: P9Hw Wired Bodypack Personal Monitor
Shure Incorporated P9HW Wired Bodypack Personal Monitor IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. -
Page 4: Safety Precautions
This product is intended for professional use only. This product should only be sold through professional sales channels. General Description The Shure P9HW is a wired, twochannel stereo bodypack system designed to replace loudspeakers used for onstage moni toring. The portable, lightweight P9HW has several advantages over onstage monitor loudspeakers: it is less visible, offers im... -
Page 5: P9Hw Bodypack
Shure Incorporated signed for use in sound reinforcement applications including public address, live music, studio recording, broadcast, and the ater. P9HW Bodypack Use the supplied Y-splitter cable to connect up to two sources. ① Audio Input Important: Align the red dot on the cable with the notch inside the bodypack input. -
Page 6: Setup
Note: the bodypack can connect either directly to the mixer or through a patch bay on stage. ③ Put on the earphones The P9HW is designed to perform best with Shure earphones, but works with any head and connect them to the phones or in-ear monitors that have a standard 1/8-inch (3.5 mm) stereo plug. -
Page 7: Audio Settings
Shure Incorporated System Overview Audio Settings STEREO: Audio from channel 1 is heard on the left earphone; audio from channel 2 is on the MODE right earphone.MIXMODE: Both channels are heard on the left and right earphones. The blend between mixes is adjustable. -
Page 8: Utilities
Shure Incorporated Set a value (-3 to -21 dB) to attenuate the highest possible volume level. Turning the volume knob through its entire range of motion still affects volume; the limit simply narrows the range VLIMIT (Maximum Volume) of dB adjustment. -
Page 9: Mixmode
Shure Incorporated Adjusting Balance To adjust the left/right balance, select AUDIO > BAL ST. Use the ▲▼ buttons to change the setting. MixMode To operate in MixMode, enter the menu and select AUDIO > MODE > MIXMODE. In MixMode, the blend between two monitoring mixes (an instrumental mix and a vocal mix, for example) is adjustable. The sig... -
Page 10: Shure Sb900A Rechargeable Battery
Shure SB900A Rechargeable Battery Shure SB900A lithiumion batteries offer a rechargeable option for powering the bodypack. Batteries quickly charge to 50% ca pacity in one hour and reach full charge within three hours. -
Page 11: Multiple Bay Chargers
Status Charging Green Charging Complete Amber Flashing Fault: check connections and battery No battery in bay Multiple Bay Chargers Shure offers several models of multiple-bay chargers: • SBC200 two-bay charger • SBC210 two-bay charger • SBC220 two-bay networked charger •... -
Page 12: Important Tips For Care And Storage Of Shure Rechargeable Batteries
Fault: check connections and battery No battery in bay Important Tips for Care and Storage of Shure Rechargeable Batteries Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime. • Always store batteries and bodypacks at room temperature •... -
Page 13: Pin Assignments
Shure Incorporated Pin Assignments Signal Left XLR Right XLR Shield − − Specifications Audio Frequency Response 20 Hz–20 kHz (±3 dB) 13/15... -
Page 14: Optional Accessories And Replacement Parts
196 g (6.6 oz.) (with batteries) Battery Life 9 hours (continuous use) AA batteries Optional Accessories and Replacement Parts Dual-XLR to 5-pin LEMO cable PA720 Shure Lithium-Ion Rechargeable Battery SB900A AA battery adapter 65A15224 PS9 Battery Eliminator 90A4794 Dynamic MicroDriver earphones... -
Page 15: Certifications
Industry Canada ICES-003 Compliance Label: CAN ICES-3 (B)/NMB-3(B) Industry Canada ICES-003 Compliance Label: CAN ICES-3 (B)/NMB-3(B) The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European representatives. For contact information please visit www.shure.com The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance...
