Tyrell Chenergy HH607 Quick Start Manual

Tyrell Chenergy HH607 Quick Start Manual

Heavy duty jump starter 1400amp 100psi compressor

Advertisement

Heavy Duty Jump Starter
1400AMP 100PSI Compressor
IMPORTANT:
This product has been carefully engineered and manufactured to give you dependable operation. Prior to use, please ensure that
you read and understand all warnings, cautions and instructions included in this instruction manual, and those published by your
vehicle battery manufacturer and manufacturer of any device intended to be used with this unit. Please retain this manual for
future reference.

FEATURES:

Heavy Duty Jump Starter
100 PSI High flow air compressor
12V DC Power Port
USB 5V 2.1A

TECHNICAL SPECIFICATIONS

Internal battery:
Compressor: Max.
LED work light:
USB:
Charging time AC charger:
Charging time DC charger:
EXPLANATION OF SYMBOLS
This symbol indicates a health hazard, e.g.
electric shock.
The exclamation mark indicates particular
risks in handling, function and use.

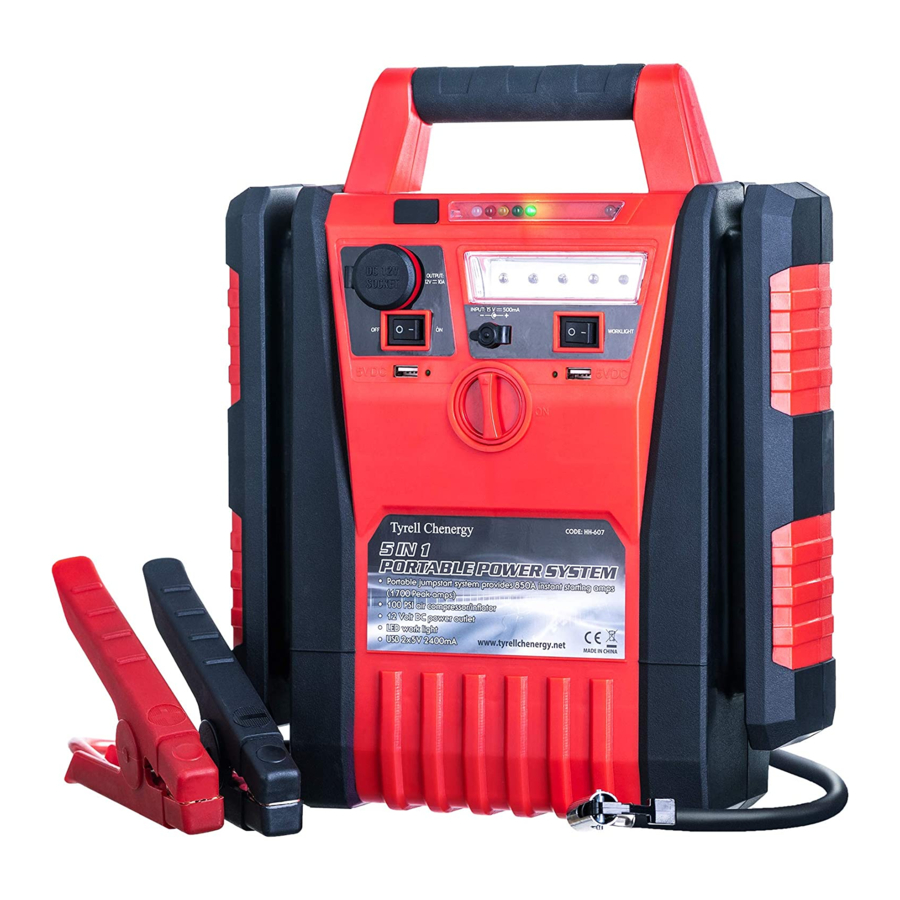

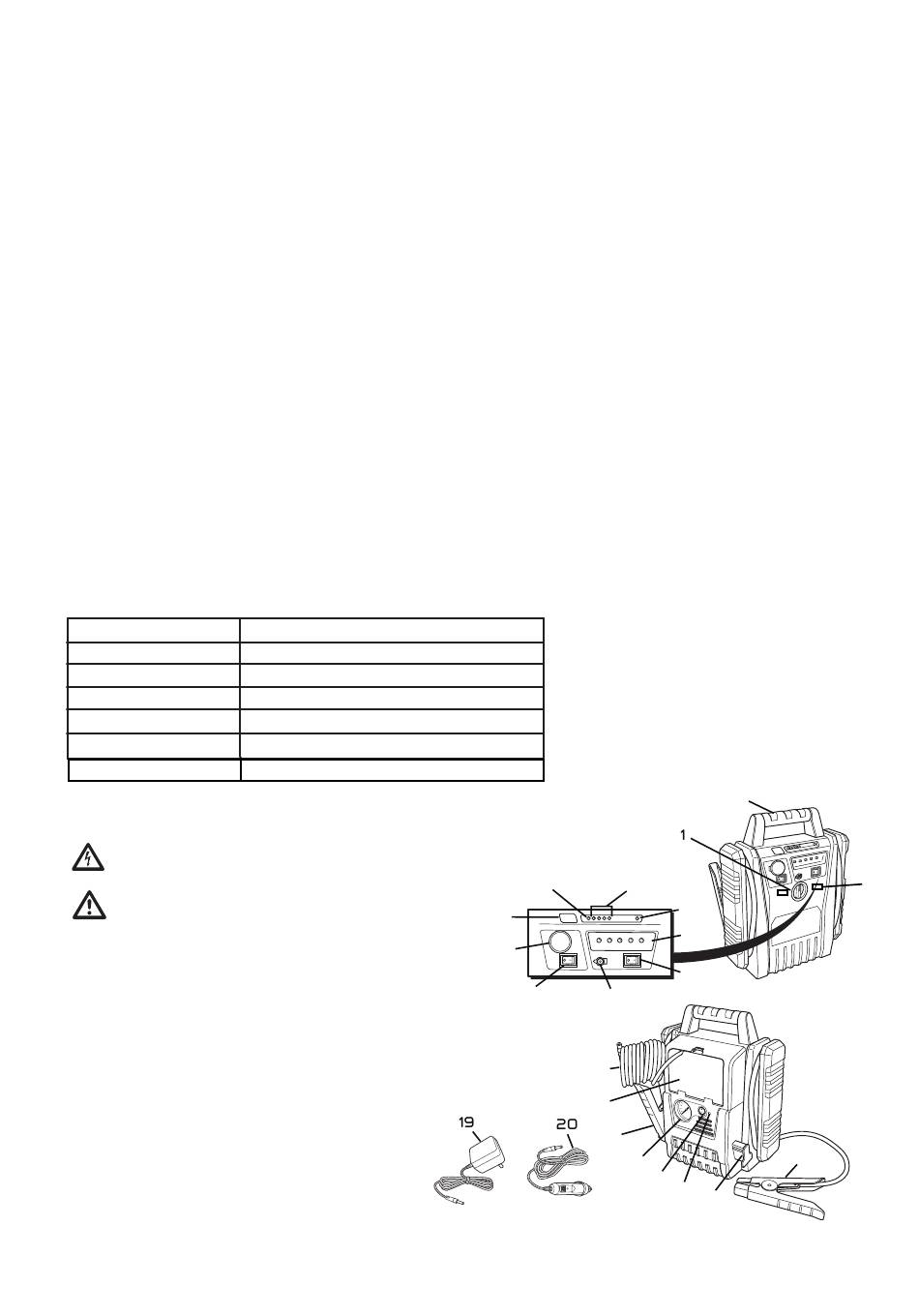

LOCATION OF CONTROLS
1.
On/Off switch for jump start function
2.
Carrying handle
3.
LED for charging indicator
4.
Four LEDs for internal battery indicator
5.
LED for correct/wrong polarity for jump starts
6.
Work light with white LEDs
7.
On/Off switch for LED work light
8.
Charging socket (for AC charger or 12V charger)
9.
On/Off switch for 12V output socket/USB
10. 12V output socket for connection of an
appropriate device, e.g. 12V charging adapter for
mobile phone or similar)
11.
Button for charging indicator (see point 4)
12.
Cable with alligator clamps for jump starts
13.
Holder for secure fastening of the alligator clamps
14. LED for indicator for overheating of air compressor
Product Code : HH607
12V 22Ah rechargeable sealed lead acid battery
100PSI
Max. 10A
White LEDs
5V 2.1A
Approximately 40 hours
Approximately 24 hours
3
4
11
10
9
8
18
17
13
16
1
2
5
6
7
12
15
14
13
21
