OPERATION MANUAL

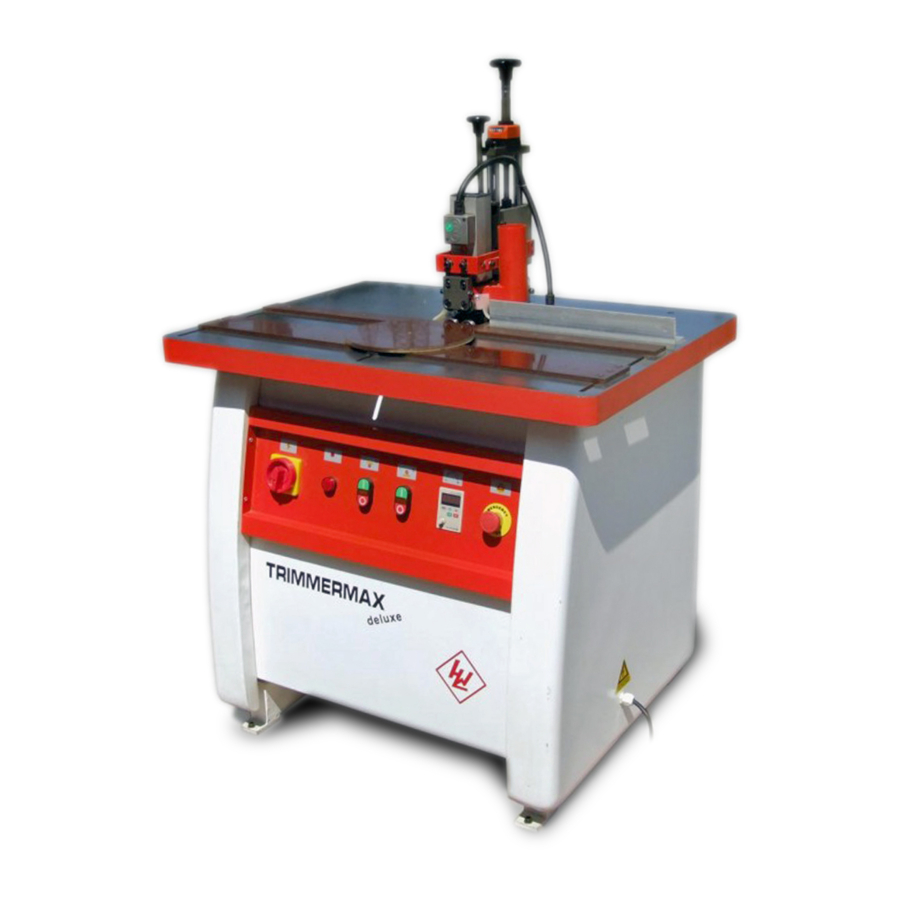

WINTER TRIMMERMAX - DELUXE
WARNING!
The operator must thoroughly read this manual before operation.
Keep this manual for future reference.
Henrik Winter Holztechnik GmbH
Druckereistr. 8
04159 Leipzig
Tel: +49 (0)341/ 4619021 Fax: +49 (0)341/4618358 Funk: +49 (0)171/2820443
Em@il: info@winter-holztechnik.de Internet: www.winter-holztechnik.de

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRIMMERMAX DELUXE and is the answer not in the manual?

Questions and answers

Related Manuals for Winter TRIMMERMAX DELUXE

Summary of Contents for Winter TRIMMERMAX DELUXE

  • Page 1 OPERATION MANUAL WINTER TRIMMERMAX - DELUXE WARNING! The operator must thoroughly read this manual before operation. Keep this manual for future reference. Henrik Winter Holztechnik GmbH Druckereistr. 8 04159 Leipzig Tel: +49 (0)341/ 4619021 Fax: +49 (0)341/4618358 Funk: +49 (0)171/2820443...
  • Page 2 1.Safety regulations ！ 1.1Warning Please read the understanding manual and corresponding security proceduress at the before using； After reading have any questions,please don't use equipment,should contact the nearby distributor. 1.2Safe operation ● please attention on the machine sundries at the start machine; ●...
  • Page 3 3.Main part schematic (Picture 1）...
  • Page 4 4.Wiring After confirm the power supply and on the machine control panel cut off power， the machine power lines attach on the special power to three phase AC380V、 50Hz，and the machine ground lead reliable the land（power lines is four core wire,yellow and green double color attach ground lead).
  • Page 5 to near wheel and up trimming knife of the concentric.the up and down trimming and near wheel of the concentric at last. 5.1.2 Board thickness adjust （Picture 3） As show in picture3,before leave factory setting higher table-board 2mm,to the bottom copy bearing,the board thickness need not adjust of the change.when the change board thickness,main adjust up handle,when the thickness numeration table display board thickness numeration is OK.(when the up handle clockwise rotation,board is add,opposite is reduce).
  • Page 6 5.1.3 Trimming feeding adjust When the up and down board trimming measure is not appropriate,as show in picture 3 loosen the motor lock handle,turn of up and down feeding measure adjust handle make the trimming measure get to appropriate.(clockwise rotation feeding measure adjust handle ,the trimming is reduce,opposite the trimming is add.) 5.2 Operation.

  • Page 7: Electrical Part

    As show in picture 4,the board according to arrow direction depend on front straight line set pattern,at the straight line trimming before.again turn left move the board until leaving trimming knife is ok. 5.2.3 Curve line trimming Reference picture4， at the curve trimming remove the before and behind straight line set pattern.(If the behind straight set pattern don't block panel move can need not remove)the depend on wheel according the panel exterior move until trimming finish.

  • Page 8: Troubleshooting

    7.Maintenance 1.after working finish for each time,the machine need to be cleaned,but not use water. 2.the metal material such as glue part need to use alcohol clean, but not use other chemical or it will change shape and affect the function of machine. Every part stick on the glue is forbidden to use hand things to scratch,avoidscathe the surface and affect the function of machine.
  • Page 9 9.1Inverter Parameter setting Symbols Parameters 200HZ When the display = 72 enter extended parameters. 9.2 The need setting expand parameters. d026 250HZ d041...
