ALT Via Dante/Misto 30882 Installation & Care Manual

Thermostatic valve trim kit

Advertisement

Quick Links

#30882 Via Dante/Misto
#30892 Via Dante/Misto
#30883 Via Dante/Misto
#30893 Via Dante/Misto
last revision: 09/11/2017
VIA DAN T E-M ISTO
2-way (shared & non-shared) thermostatic valve
trim kit
Garniture pour valve thermostatique 2 voies
(partagée & non-partagée)
3-way (shared & non-shared) thermostatic valve
trim kit
Garniture pour valve thermostatique 3 voies
(partagée & non-partagée)
Installation & Care Guide
Guide d'installation et d'entretien

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Via Dante/Misto 30882 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ALT Via Dante/Misto 30882

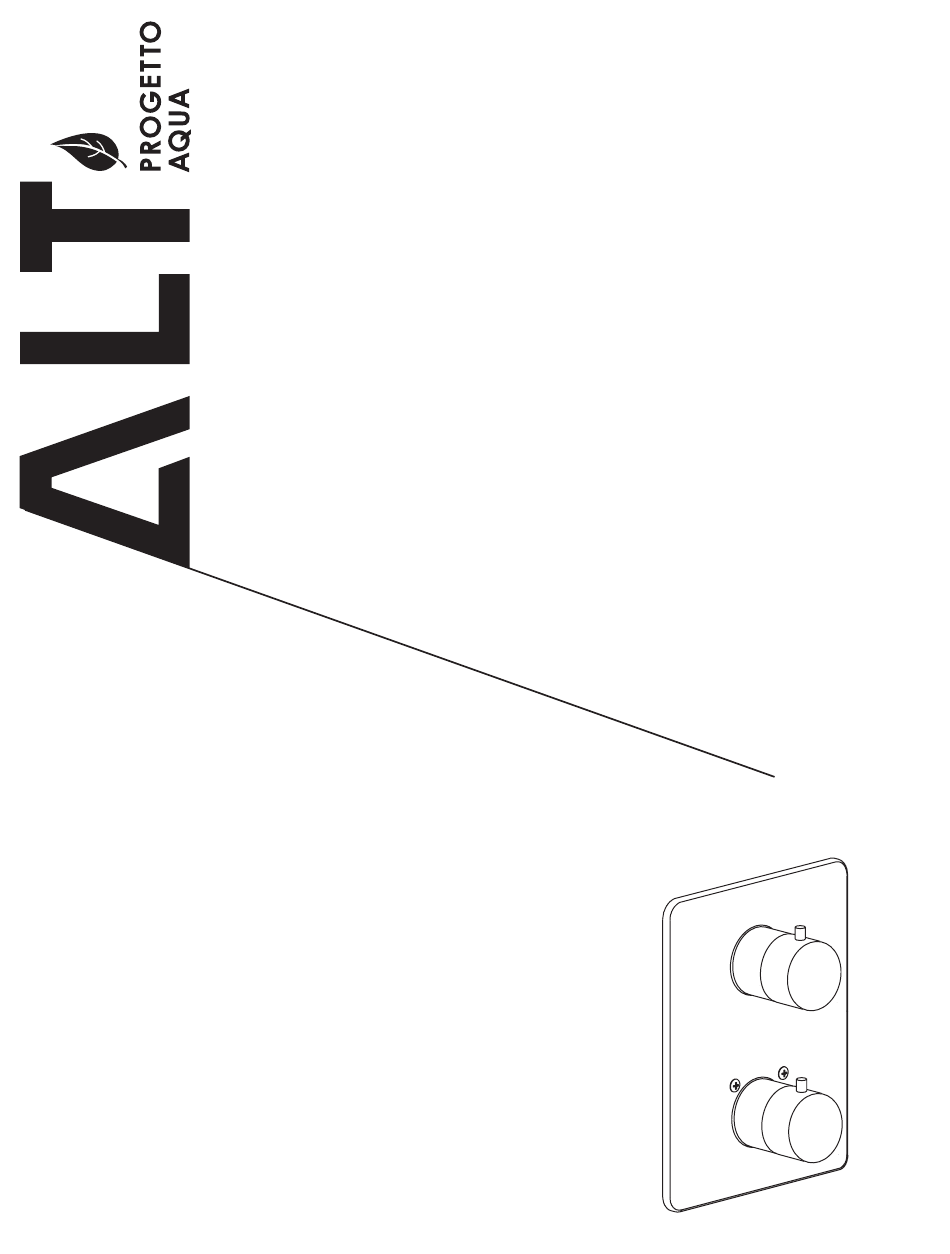

  • Page 1 VIA DAN T E-M ISTO 2-way (shared & non-shared) thermostatic valve trim kit #30882 Via Dante/Misto #30892 Via Dante/Misto Garniture pour valve thermostatique 2 voies (partagée & non-partagée) 3-way (shared & non-shared) thermostatic valve trim kit #30883 Via Dante/Misto #30893 Via Dante/Misto Garniture pour valve thermostatique 3 voies (partagée &...
  • Page 2 Félicitations pour l’achat de purchase of your Alt product votre produit Alt By purchasing an Alt product, you are taking part in En achetant un produit Alt, vous prenez part au the global movement for better living. We take pride in mouvement global pour le mieux-vivre.
  • Page 3 TRIM COMPONENTS COMPOSANTES DE FINITION EXPLOSION PARTS / SCHÉMA DES PIÈCES ALT7-60-670-01: Foam gasket / joint mousse ALT7-60-851-01: Rectangular trim plate+screw / plaque rectangulaire+vis ABCA-TH-200 : 2-way shared diverter cartridge / Cartouche avec déviateur a 2 voies partagées ABCA-TH-300 : 3-way shared diverter cartridge / Cartouche avec déviateur a 3 voies partagées ABCA-TH-2LD : 2-way non-shared diverter cartridge / Cartouche avec déviateur a 2 voies non-partagées ABCA-TH-3LD : 3-way non-shared diverter cartridge / Cartouche avec déviateur a 3 voies non-partagées 4&5 ALT7-60-603-01: Decorative Sleeve / ensemble de l'anneau décoratif...
  • Page 4 BEFORE YOU START AVANT DE COMMENCER CAUTION: FOR BEST RESULTS, WE STRONGLY REC- MISE EN GARDE: POUR OBTENIR UN RÉSULTAT OMMEND THE INSTALLATION OF THIS VALVE BE DONE OPTIMAL, NOUS RECOMMANDONS FORTEMENT QUE BY A LICENSED PLUMBER. L’INSTALLATION DE CETTE VALVE SOIT FAITE PAR UN PLOMBIER ACCRÉDITÉ.
  • Page 5: Installation

    INSTALLATION Installing the cartridge First, shut off the 2 check-valves (1),afterwards, unscrew the large nut (2) and remove the protective plug (3) (see Fig.1) . Insert the diverter cartridge (4) into the valve body as shown (Fig.2). Screw the large nut (2) back into place. DO NOT OVERTIGHTEN.
  • Page 6 INSTALLATION Installing the trim kit Insert the broach extensions (3 & 6) and secure with the screws (4 & 7). Then screw the components 2 & 1 in place, and put the temperature stop ring (5) onto and thermostatic cartridges. Screw the decorative sleeves (8 &...
  • Page 7: Water Temperature Adjustment

    INSTALLATION Water temperature adjustment The highest tempature setting has been factory preset at 120˚F (49˚C). However, the preset temperature can be adjusted by following these steps: Remove the setscrew (1) and the volume control handle (2) (See Fig.4). Pull out the temperature stop ring (3) from the cartridge. Gradually rotate it clockwise to lower the maximum temperature or counter clockwise the right to increase Once new setting has been adjusted, reassemble...
  • Page 8: Maintenance

    MAINTENANCE To Service The Cartridges Shut off the main water supply, then remove all the components from (7) to (21). (See Fig.5). Afterwards, shut off the 2 check valves (1) by turning them clockwise with a screwdriver. Unscrew the screw (3), the large nuts (5 & 6) and remove the cartridges (2 &...
  • Page 9 CARE SOIN To clean your ALT faucet or accessory, wash with a Pour nettoyer et conserver l’apparence de vos robinets ou accesoires ALT, lavez-les avec un linge wet nonabrasive soapy cloth. Then wipe dry with a soft towel or cloth. We recommend this be done on mouillé...
  • Page 10: Warranty Garantie

    - Any and all ALT products that are subjected to any type of harsh de produits abrasifs, de corrosion et/ou d’accidents causés par un abrasive, such as cleaners containing abrasive cleansers, ammonia, professionnel ou par toute autre personne.
