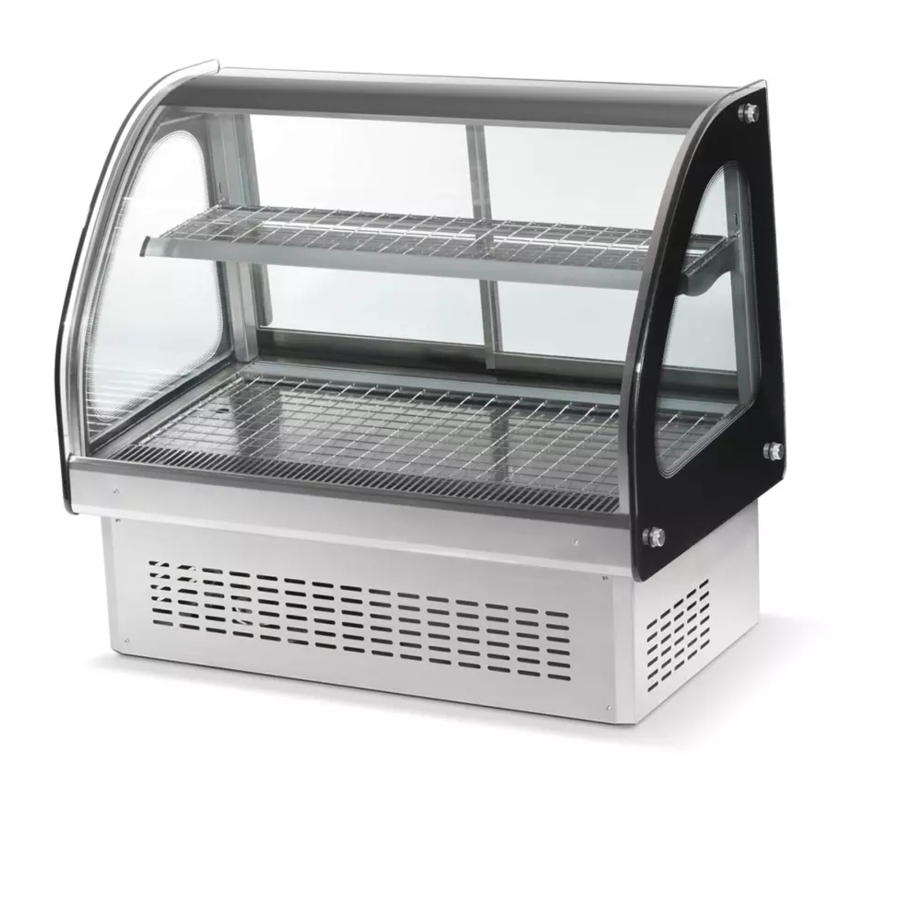

Vollrath HDE7136 Operator's Manual

Thank you for purchasing this Vollrath equipment. Before operating the
equipment, read and familiarize yourself with the following operating
and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. Save the original box and packaging. Use this packaging
to ship the equipment if repairs are needed.
SAFETY PRECAUTIONS
To ensure safe operation, read the following statements and understand
their meaning. This manual contains safety precautions which are
explained below. Please read carefully.
WARNING
Warning is used to indicate the presence of a hazard that will or can
cause severe personal injury or death.
CAUTION
Caution is used to indicate the presence of a hazard that will or can
cause minor or major personal injury if the caution is ignored.
NOTICE: Notice is used to note information that is important but not
hazard-related.
To reduce risk of injury or damage to the equipment:
• Use only grounded electrical outlets matching the nameplate rated
voltage.
• Have a qualified person install the equipment in accordance with
local codes and ordinances.
• Use equipment in a flat, level position.
• Do not use an extension cord with this equipment. Do not plug this
equipment into a power strip or multi-outlet power cord.
• Unplug equipment and turn off before cleaning or moving.
• Do not spray controls or outside of equipment with liquids or
cleaning agents.
• Do not clean the equipment with steel wool.
• Keep equipment and power cord away from open flames, electric
burners or excessive heat.
• Do not operate unattended.
• Do not operate equipment in public areas and/or around children.
• Do not operate if equipment has been damaged or is malfunctioning
in any way.
Front Access Curved Case
Item No. Model No. Description
40845
40846
40847
4084505 HDE1136
4084605 HDE1148
4084705 HDE1160
40855
40856
40857
4085505 HDE1236
4085605 HDE1248
4085705 HDE1260
40865
40866
40867
4086505 HDE1336
4086605 HDE1348
4086705 HDE1360
40883
40884
40885
4088305 HDE1436
4088405 HDE1448
4088505 HDE1460
40890
40891
40892
4089005 HDE1536
4089105 HDE1548
4089205 HDE1560
Please register your product at Vollrath.com
©
2016 The Vollrath Company L.L.C.
Operator's Manual
Heated Display Cases
Curved Case
Drop-in Case
HDE7136 36"
HDE7148 48"
HDE7160 60"
Drop-In
36"
48" 220-240
60"
HDE8136 36"
HDE8148 48"
HDE8160 60"
Countertop
Curved
36"
48" 220-240
60"
HDE8236 36"
HDE8248 48"
HDE8260 60"
Countertop
Cubed
36"
48" 220-240
60"
HDE8336 36"
HDE8348 48"
Self-Serve
HDE8360 60"
Countertop
Curved
36"
48" 220-240
60"
HDE8436 36"
HDE8448 48"
Self-Serve
HDE8460 60"
Countertop
36"
Cubed
48" 220-240
60"
Part No. 2350050-1 ml
Cubed Case
Volts Amps Watts Hz Plug
5.6 670
120 5.9 710 60 5-15P
6.3 750
4.7 752
UK/
4.9 792 50/60 Schuko/
China*
5.2 832
5.6 670
120 5.9 710 60 5-15P
6.3 750
4.7 752
UK/
4.9 792 50/60 Schuko/
China*
5.2 832
6.1 730
120 6.6 790 60 5-15P
7.1 850
5.0 810
UK/
5.4 870 50/60 Schuko/
China*
5.8 930
5.6 670
120 5.9 710 60 5-15P
6.3 750
3.4 770
UK/
3.5 810 50/60 Schuko/
China*
3.7 850
6.1 730
120 6.6 790 60 5-15P
7.1 850
3.6 830
UK/
3.9 890 50/60 Schuko/
China*
4.1 950
5/31/16
