Video Conference Collaboration System
User Manual V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV3100 and is the answer not in the manual?

Questions and answers

Related Manuals for Eacome SV3100

Summary of Contents for Eacome SV3100

  • Page 1 Video Conference Collaboration System User Manual V1.0...
  • Page 2 Attentions This manual introduces the functions, installation methods and operations for audio video conferencing room solution in details. Please read this manual carefully before installation and use. 1.How to Use To prevent damage to this product or any product connected to it, this product can only be used within the specified range.

  • Page 3: Packing Contents

    Packing Contents (1) Camera (2)Accessories User Manual Speakerphone Remote Control 5m DIN6 Cable * 2 pcs 3m USB cable *1 pcs Power supply...

  • Page 4: Product Overview

    Product Overview 2.1 Speakerphone 5. Bluetooth indicator 1. Optional expansion microphone port 1 6. Function keys 2. Optional expansion microphone port 2 7. Volume indicator 3. DIN6 cable port 4. LED Status indicator 2.2 Camera 3. USB Cable port 1. Status indicator 4.

  • Page 5: Key Operation Description

    2.3 Hub 1. DIN6 Cable port 2. USB port 3. Power port 4. Turn on/off 5. Status indicator Key operation Description (1) About Remote control Functions IR select switch Focus mode (AUTO :automatic MANUAL: manual) Open the menu Backlight compensation switch Power standby switch Pan direction reset (press together with No.12) Preset number area, call presets by numbers...
  • Page 6 3.2 About Speakerphone Key Description： Those keys represent the camera Presets button preset positions 1,2 and 3 respectively Zoom in/out The camera zooms in/out Control the direction of the Camera pan / tilt camera: left, right, up, down. Press the volume down/up button Volume button Turn on/off...

  • Page 7: Connection Description

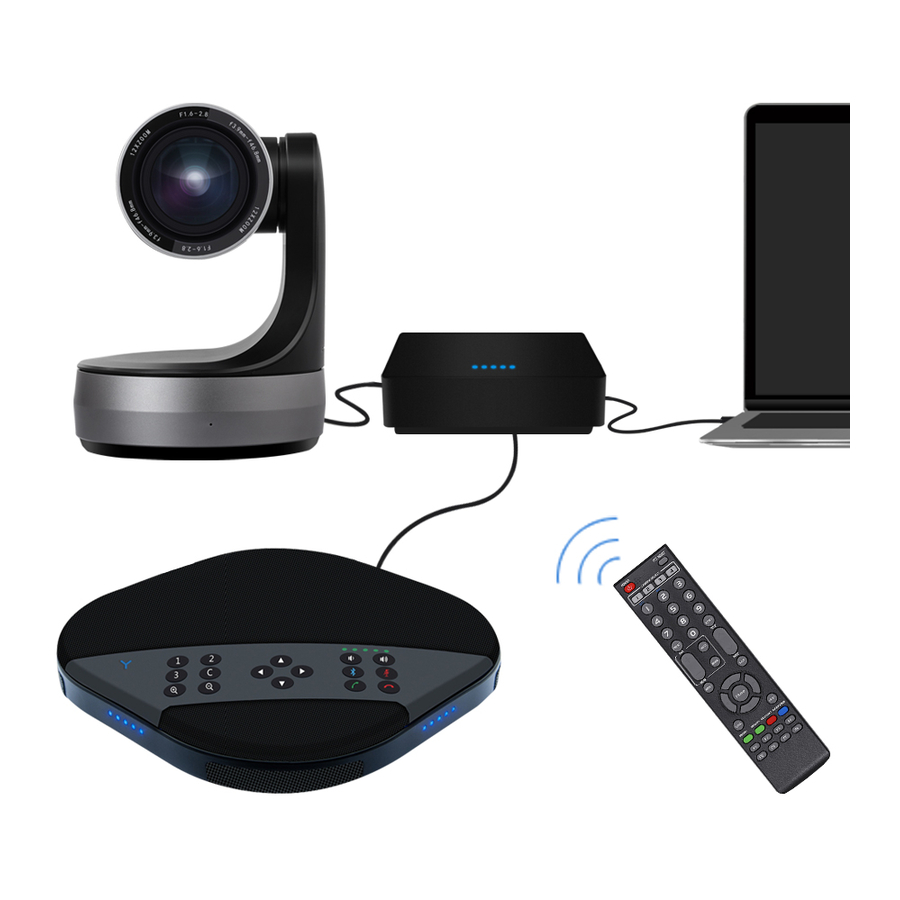

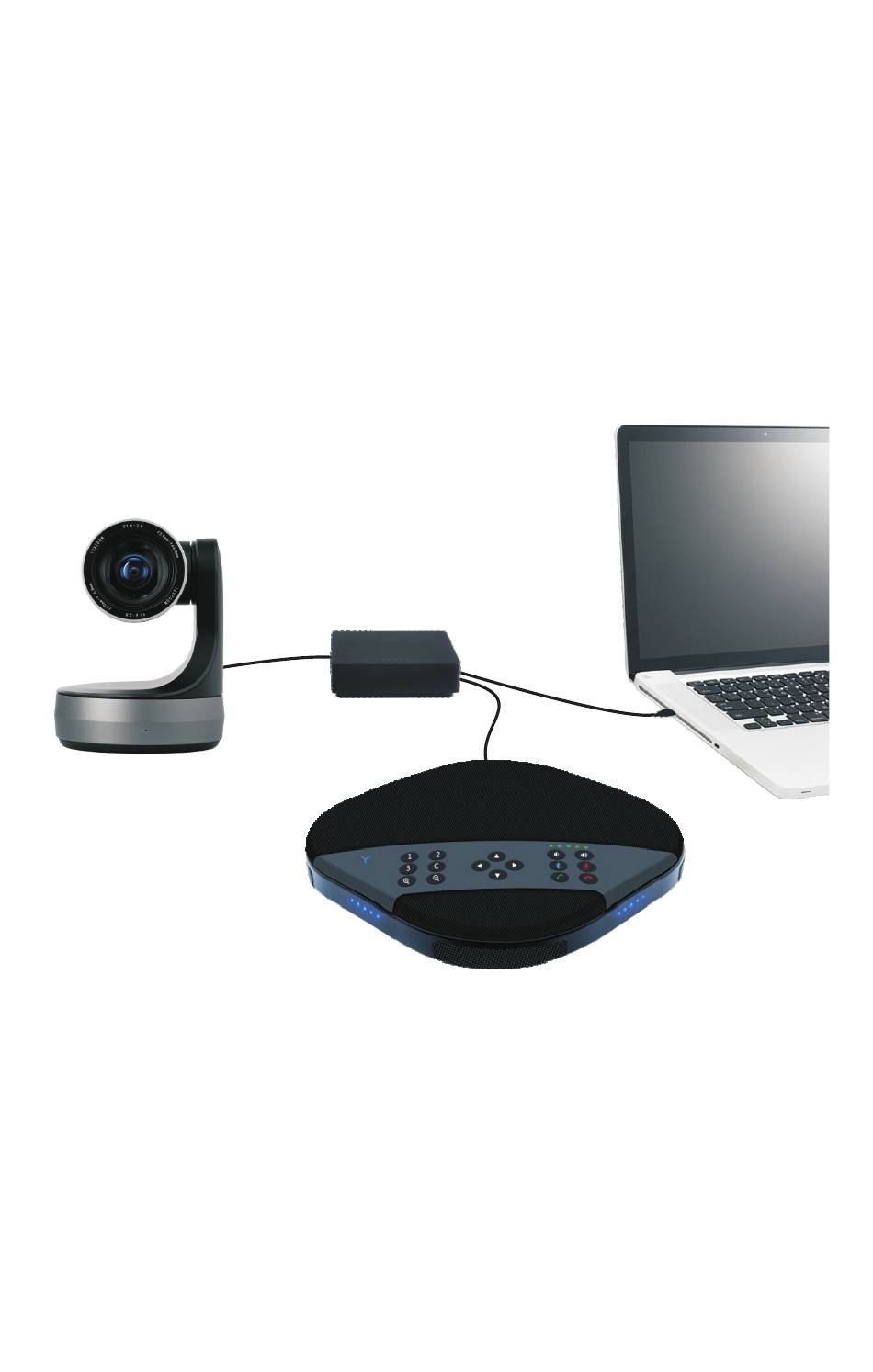

    Connection Description USB cable DIN6 cable DIN6 cable Power Supply The speakerphone can be connected to computer, the hardware video equipment system through Hub USB. It's not only provides 48KHz digital voice bandwidth speakers, but also an ultra-clear video experience. Connection steps: 1.Connect the camera and Hub with the original DIN6 data cable;...
  • Page 8 Mode: 1. Please adjust the volume of horns and microphones comprehensively to ensure the communication is clear and smooth. 2. Don't turn on the speaker and microphone automatic gain. 3. Give priority to turn off the audio processing functions of the computer software/ video software (such as turning off...
  • Page 9 The LED status indicator description Blue LED light USB connection Status indicator Microphone mute Red LED light status The higher the volume is, Green light the more number of Volume indicator lights is Red light Speaker mute status 1.Turn on the Bluetooth, the green light flashes Bluetooth Y type Bluetooth...
  • Page 10 Installation and use of optional expansion microphone(Optional) Use an expansion microphone for important and large meetings. 1. Connect one end of a 3.5-meter long 4P4C dedicated wire to the socket of the expansion microphone and the other end to the speakerphone EXT1.

  • Page 11: Technical Specifications

    Technical Specifications Video Conference Camera Image Sensor SONY 1/2.8" Progressive CMOS Effective 3.1 Megapixels Pixels MJPG/H.264:320*240,640*480,720*576,1280*720,19 20*1080 Resolution HD YUY2:320*240,640*480,720*576,1280*720 Signal PAL/NTSC 12x，f=3.9mm(W)～46.8mm(T) Lens Horizontal 72.5°(W) ～6.5°(T) View Angle Focus System Auto/Manual Minimum 0.5Lux Illumination Shutter 1/25～1/10000S Gain Auto/Manual Auto/Manual/Indoor/Outdoor/One push/ATW White Balance Full color/Image flip Image Effect...
  • Page 12 Omnidirectional Speakerphone Acoustic Echo cancellation（AEC）：>65dB Echo length cancellation：≥500ms Voice Bidirectional noise compression（NC）：<25dB technical Automatic Direction finding Technology of parameters Intelligent microphone（EMI） Automatic gain control（AGC） Microphone frequency response：100Hz-22KHz Speaker frequency response：100Hz-22KHz Audio Speaker volume: 90dB at the most parameters Microphone sound-pickup radius: 4 meters, 360 degrees full range Bluetooth Bluetooth devices available...
