- Page 1 Video Conferencing Room Solu on User Manual V1.0...
- Page 2 A en ons This manual introduces the func ons, installa on and opera ons for SV3100video conferencing room solu on in details. Please read this manual carefully before installa on and use. 1.How to Use To prevent damage to this product or any product connected to it, this product can only be used within the specified range.
- Page 3 5.Do not Disassemble the Product without Permission This product contains no parts which can be maintained by the users themselves. Any damage caused by dismantling the product by the users without permission is not covered by warranty. 6.Magne c Interference Electromagne c fields at specific frequencies may affect the image.
-
Page 4: Table Of Contents
Content 1.Packing Contents 2.Product Overview 2.1 Speakerphone 2.2 VHD-V71CV Camera 2.3 Hub 3. Keys opera on Descrip on 3.1 About Remote control 3.2 About Speakerphone 4. Connec on Descrip on 5. About Bluetooth pairing 6. The LED Status indicator descrip on 7. -
Page 5: Packing Contents

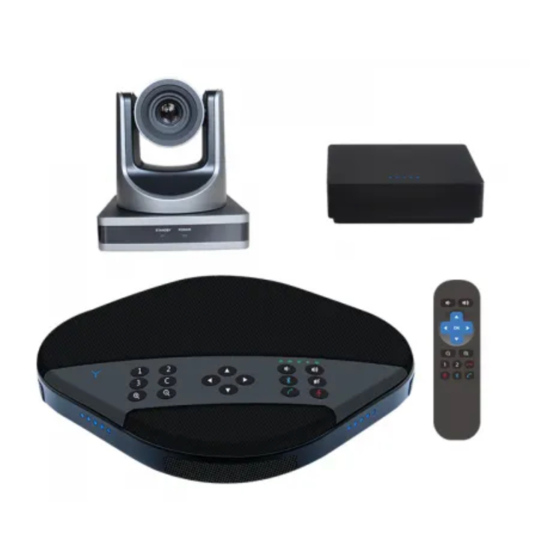

1. Packing Contents 1. Speakerphone 2. VHD-V71CV Camera 3. Hub 4. Remote Control 5. 5m DIN6 Cable * 2 pcs 6. 3m USB cable *1 pcs 7. Power supply... -
Page 6: Product Overview
2.Product Overview 2.1 Speakerphone 1. Op onal expansion microphone port 1 2. Op onal expansion microphone port 2 3. DIN6 cable port 4. LED Status indicator 5. Bluetooth indicator 6. Func on keys 7. Volume indicator 2.2 VHD-V71CV Camera 1. Status indicator 2. -
Page 7: Hub
2.3 Hub 1. DIN6 Cable port 2. USB port 3. Power port 4. Turn on/off 5. Status indicator 3. .Keys opera on Descrip on 3.1 About Remote control 1: Volume down 2: Volume up 3: Pan / Tilt 4: OK 5: Zoom out 6: Zoom in 7: 1-2 Camera presets... -
Page 8: About Speakerphone
3.2 About Speakerphone KeysDescrip on： Those keys represent the camera Presets bu on preset posi ons 1,2 and 3 respec vely Remote control The Camera Zero posi on bu on Zoom in/out The camera zooms in/out Control the direc on of the Camera pan / lt camera:le , right,up, down,. -
Page 9: Connec On Descrip On
Camera self-check completed, turn on the terminal third-party conference so ware, and select the corresponding Camera, microphone (Eacome SV3100) and speaker driver (Eacome SV3100) to start the audio and video conference with the device. -
Page 10: About Bluetooth Pairing
Bluetooth pairing mode. 2. Place the mobile device in the Bluetooth device search mode and select “Eacome SV3100”. A er the Bluetooth connec on, the indicator light is steady green. At this point, you can use an omnidirec onal... -
Page 11: The Led Status Indicator Descrip On
6. The LED Status indicator descrip on Blue LED light USB connec on Status indicator Microphone mute Red LED light status The higher the volume, Volume indicator Green light the more the number of lights 1.Turn on the Bluetooth, the green light flashes Bluetooth Y type Bluetooth 2.Bluetooth connec on,... -
Page 12: Installa On And Use Of Op Onal Expansion Microphone(Op Onal)
8. Installa on and use of op onal expansion microphone(Op onal) Use an expansion microphone for important and large mee ngs. 1. Connect one end of a 2.5-meter long 4P4C dedicated wire to the socket of the expansion microphone and the other end to the speakerphone EXT1. -
Page 13: Technical Specifica Ons
9. Technical Specifica ons VHD-V71CV USB2.0 HD Video Conference Camera Model NO. Product Picture Sensor 1/2.7'', CMOS 2.07M Effec ve Pixels 1080P, 720P, 540P, 480P, 360P, 240P etc Video Format 12x, f=3.5mm ~ 42.3mm Op cal zoom lens View angle Horizontal Angle of View：72.5°~ 6.9°... - Page 14 Brightness, Color, Satura on, Contrast, Sharpness, Video Adjustment B/W mode, Gamma curve ≥55dB Horizontal Rota on Range:±170° Rota on angle Ver cal Rota on Range：-30°~ +90° Pan Speed Range：1.7°~ 100°/s Control speed Tilt Speed Range:1.7°~ 69.9°/s Dimensions 144mm x 144mm x 167.9mm Speakerphone Model NO.
- Page 15 Speakerphone Model NO. Microphone frequency response 100Hz-22KHz Speaker frequency response 100Hz-22KHz Audio parameters Speaker volume: 90dB at the most Microphone sound-pickup radius: 6 meters, 360 degrees full range Angle: 360° Distance: 10m IR Recep on IR Transparent transmission available Expansion Mic 2 external microphones op onal for connec on (op onal) makes the sound-pickup radius up to 10 meters...
- Page 16 Model NO. Power plug(DC12V) Power supply Adapter input AC110V-AC220V,output DC12V/2A Mini DIN6 data line × 2 Connec on Cable Length: 5m（10m/15m for op ons） USB cable USB cable Support Windows, Android, iOS and Linux Drive-free automa c recogni on of cameras, microphones and speakers Compa bility Compa ble with Zoom, Lynch, Vidyo, Skype for...
-
Page 17: Warranty
Warranty Warranty service is an important part in shopping. Please refer to the company's website if the details and warranty period that not men oned in the following contents. The warranty Customers who purchase this product can enjoy the repair services in defec ve of materials and workmanship.By the way, the repair services excluded the terms listed below. - Page 18 Address:Floor 15th,Baoneng Technology Building, Qingxiang Road,Longhua District,Shenzhen,China Tel:+86-75586223352 ext 838 Mob:+86-13922832151 Email:Tylerzhou@eacome.cn Web:www.eacome.com...
- Page 19 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
