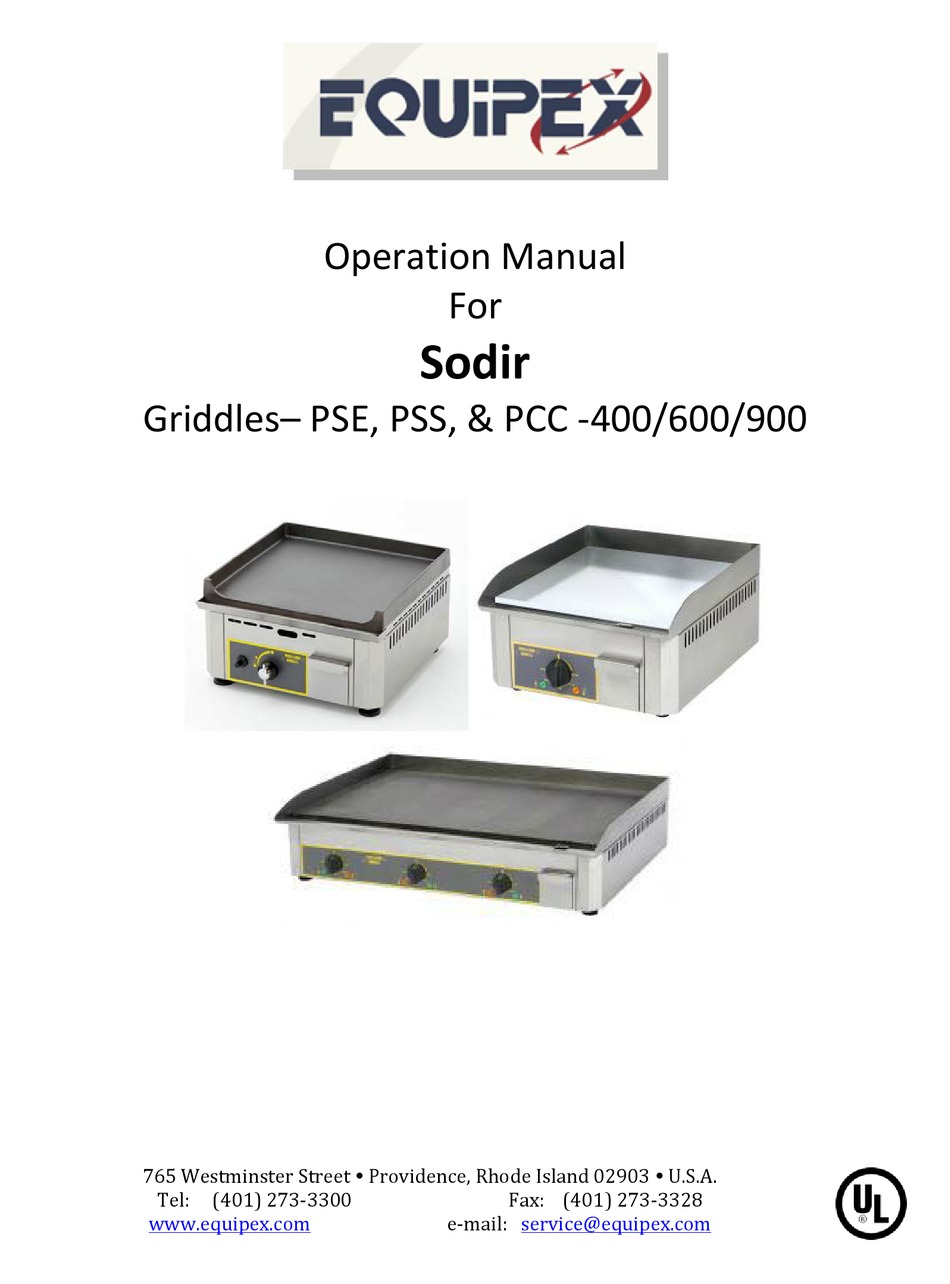

- Page 1 Operation Manual Sodir Griddles– PSE, PSS, & PCC -400/600/900 765 Westminster Street Providence, Rhode Island 02903 U.S.A. Tel: (401) 273-3300 Fax: (401) 273-3328 www.equipex.com e-mail: service@equipex.com...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all the instructions before use. 2. Do not touch hot surfaces; use handles or knobs. 3. To avoid electric shock, do not immerse the power cord, or any part of the unit, in any liquid. 4. -
Page 3: Installation

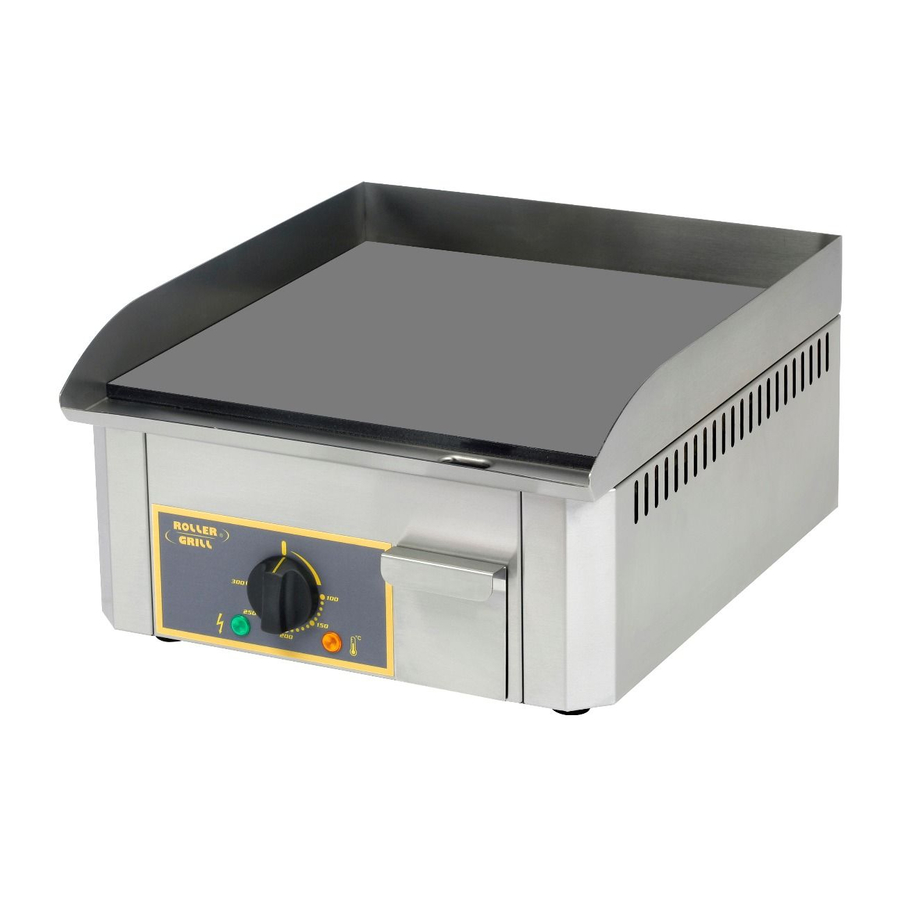

INTRODUCTION The SODIR models PSE, PSS AND PCC -400 -600 AND -900 griddles are designed to offer quality cooking. The griddles are constructed of food service quality stainless steel, and are equipped with fine grain cast iron, cold-rolled steel or chrome cooking surfaces. -
Page 4: Operation
ASSEMBLY The SODIR griddle comes from the factory completely assembled, except for the side spacers, which need to be screwed into the threaded holes in each side of the unit. These will help to maintain the proper clearance. It is shipped with plastic exterior protective film, which must be removed before operation. -
Page 5: Maintenance
If you have trouble locating a service agency in your area, please consult our website at http://www.equipex.com/, or call us at 1-800-649-7885 and ask for customer service. - Page 6 Spare Parts PSE-400...
- Page 7 Part Number Qty Description DWG# B02027+PTR Cast iron plate 53184 Frame 53122 Front panel A01020 Power Switch A06032 Regulating Thermostat (NT-253 40-280C) A08009 Green pilot light, 220V A08007 Green pilot light, 120V A14078 Knob A08003 Orange pilot light, 220V A08002 Red pilot light, 120V A13017 Foot...
- Page 8 PSE-600...
- Page 9 Part Number Description DWG# B02026+PTR Cast iron plate 53187 Frame 53118 Front panel Power Switch A01020 A06032 Regulating Thermostat (NT-253 40-280C) A08009 Green pilot light, 220V A08007 Green pilot light, 120V A14078 Knob A08003 Orange pilot light, 220V A08002 Red pilot light, 120V A13017 Foot D02169...
- Page 10 PSS-400...
- Page 11 Part Number Description DWG# 53120SE Frame and steel plate assembly 37115 Thermostat holder 53121 Casing 53122 Front panel A06032 Regulating Thermostat (NT-253 40-280C) A01020 Power Switch A08009 Green pilot light, 220V A08007 Green pilot light, 120V A14078 Knob A08003 Orange pilot light, 220V A08002 Red pilot light, 120V A13012...
- Page 12 PSS-600...
- Page 13 Part Number Description DWG# 53113SE Frame and steel plate assembly 37115 Thermostat holder 53111 Casing 53118 Front panel A06032 Regulating Thermostat (NT-253 40-280C) A01020 Power Switch A08009 Green pilot light, 220V A08007 Green pilot light, 120V A08003 Orange pilot light, 220V A08002 Red pilot light, 120V A14078...
- Page 14 PSS-900...
- Page 15 Part Number Description DWG# 53129SE Frame and steel plate assembly 37115 Thermostat holder 53127 Casing 53130 Front panel A06032 Regulating Thermostat (NT-253 40-280C) A01020 Power switch A08003 Orange pilot light, 220V A08009 Green pilot light, 220V A14078 Knob A13012 Foot D02141 Heating element, 220V 53077...
- Page 16 PCC-400...
- Page 17 Part Number Description DWG# 53120SECH Frame and chrome plate assembly 37115 Thermostat holder 53121 Casing 53122 Front panel A06032 Regulating Thermostat (NT-253 40-280C) A01020 Power Switch A08009 Green pilot light, 220V A08007 Green pilot light, 120V A14078 Knob A08003 Orange pilot light, 220V A08002 Red pilot light, 120V A13012...
- Page 18 PCC-600...
-
Page 19: Electrical Diagrams
Part Number Description DWG# 53113SECH Frame and chrome plate assembly 37115 Thermostat holder 53111 Casing 53118 Front panel A06032 Regulating Thermostat (NT-253 40-280C) A01020 Power Switch A08009 Green pilot light, 220V A08007 Green pilot light, 120V A08003 Orange pilot light, 220V A08002 Red pilot light, 120V A14078... -
Page 26: Limited Warranty
This warranty applies only to equipment under normal use and service in the U.S.A. and Canada. It does not apply to any item which has been repaired or altered in any way so as, in the judgment of EQUIPEX, to affect its reliability.
