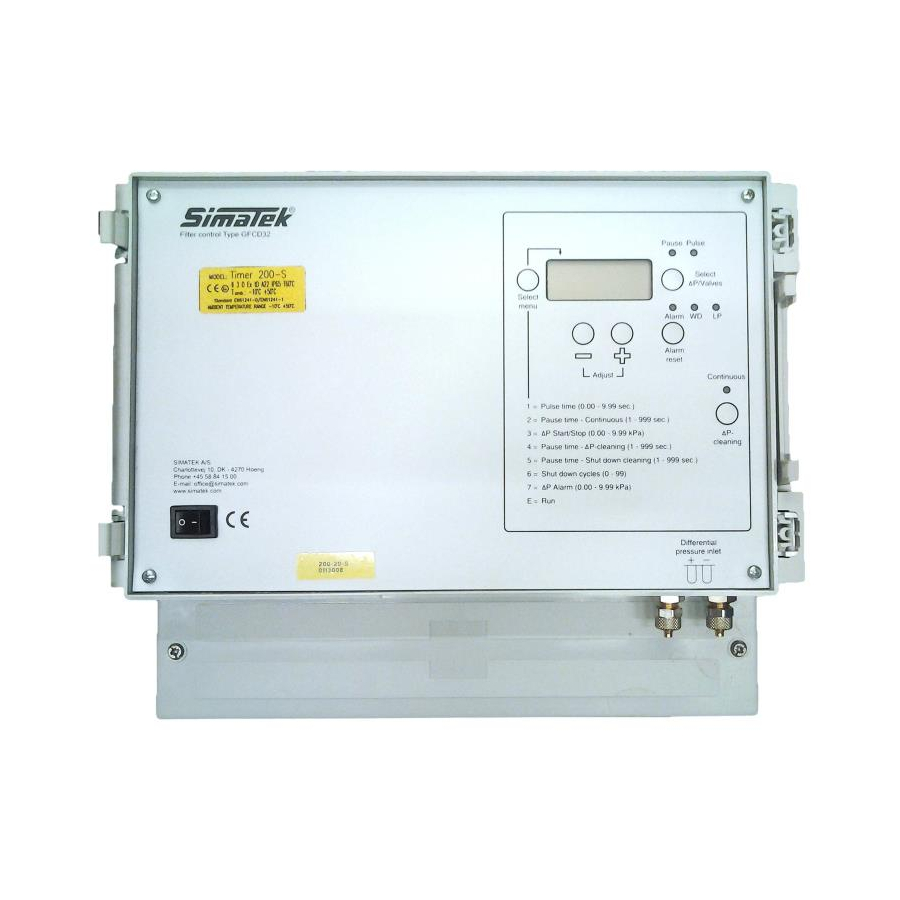

- Page 1 Manual Control Unit GFCD 32 1400001_EN/05.2017...
-
Page 2: Table Of Contents
ATTENTION! Before use, read the instructions thoroughly to acquire sufficient knowledge of the product. For your convenience, keep this sheet as a quick reference. Subject to change without notice. The GFCD 32 unit is to be installed by trained personnel only SIMATEK A/S www.simatek.com Doc. -
Page 3: Main Features
GFCD 32 1. Main features The Simatek GFCD 32 completely controls the diaphragm valves, on the dust collector filters, with pneumatic cleaning procedures (pulse-jet). The main features of the Simatek GFCD 32 are: – Automatic regulation of cleaning, according to the level of filter clogging (ΔP). -
Page 4: Installation Guidelines
• A disconnecting switch has to be installed on the power line before the control unit. • Do not attempt to repair the control unit – contact Simatek! • • All wiring has to be carried out by a qualified electrician to prevent any risk of fire and electrical shocks. -
Page 5: Preliminary Checks
4. Preliminary checks Check that the Simatek GFCD 32 does not have power (on/off switch [1] on 0 and terminals [4] disconnected). Check that the supply voltage, indicated on the yellow label [22] as “IN” corresponds to the available power supply (Voltage and Frequency.) -
Page 6: Settings
7.1 Voltage selection CHECK: That the Simatek GFCD 32 does not have power (switch on/off [1] on 0 and terminals [4] disconnected). That the supply voltage, indicated on the yellow label [22] as “IN” corresponds to the available supply voltage (Voltage and Frequency). - Page 7 Immediately after, on the display appears the value of the filter ΔP. If the LED OK [18] and Pause [12] turn on and the LED Continuous [30] flashes, the Simatek GFCD 32 is in Manual Mode. If only the LED OK [18] turns on, the Simatek GFCD 32 is in Automatic Mode.
-
Page 8: Shut Down Cleaning
7.3.1 Manual mode operation In Manual Mode, the Simatek GFCD 32 commands the valves with fixed Pause Time. The cleaning is not dependent on the level of the clogging of the filter bags. The Manual Mode is to be used during the start-up phase only. -
Page 9: Codes And Alarms
ΔP/Valves button On the display [7], the Simatek GFCD 32 shows the filter ΔP. Press Delta-P/Valves [14] to pass from filter ΔP indication to active valve indication (and vice versa). When you turn on the Simatek GFCD 32, on the display automatically is visualised the filter ΔP. -
Page 10: Low Pressure Function (Or Stand-By)
Control Unit GFCD 32 Low pressure function (or Stand-by) It is possible to put the Simatek GFCD 32 in Low Pressure (or Stand-by) remotely. When the Simatek GFCD 32 is in Stand-by, all its functions are blocked. To activate the function: Unscrew and remove the terminal cover [20]. - Page 11 Press “–” until compose on the display the number “A879”. Press Select menu: on the display appears the letter C and the number of outlets of the Simatek GFCD 32. (Example: in case of a Simatek GFCD 32:32, appears “C 32” on the display).
-
Page 12: Troubleshooting
Operate as in chapter 9.3. “P---”. kPa. IMPORTANT NOTE: If you use the Simatek GFCD 32 with power supply at 24 V DC, check that it isn’t lower than 24 V and the power is suitable at connected load. Fuse table Dimension... -
Page 13: Factory Settings/Program Menu
0.10 kPa (the fan is off). Any equipment for removal of the separated dust should run during shutdown cleaning. Simatek recommends 2-3 cycles, as the current cycle is regarded as the first shutdown cycle. Therefore the first cycle will not necessarily be a full cycle. -
Page 14: Legend
Control Unit GFCD 32 Legend On/off switch Extractable terminals (outlets and commons) Ground terminals for outlets Power supply terminals Jumper for inlet supply voltage selection Jumper for voltage selection to valves Display Jumper for the frequency selection to valves (AC/DC) -
Page 15: Simatek Gfcd 32 4-20: General Assembly
Control Unit GFCD 32 Simatek GFCD 32 4-20: General assembly SIMATEK A/S www.simatek.com Doc. No.: 1400001_EN Hotline: +45 4046 7525 Rev.: - aftersales@simatek.dk Date: 05.2017... -
Page 16: Electric Diagram For Simatek Gfcd 32: 20 Valves
Control Unit GFCD 32 Electric diagram for Simatek GFCD 32: 20 valves SIMATEK A/S www.simatek.com Doc. No.: 1400001_EN Hotline: +45 4046 7525 Rev.: - aftersales@simatek.dk Date: 05.2017... -
Page 17: Declaration Of Conformity
Control Unit GFCD 32 Declaration of Conformity SIMATEK A/S www.simatek.com Doc. No.: 1400001_EN Hotline: +45 4046 7525 Rev.: - aftersales@simatek.dk Date: 05.2017...
