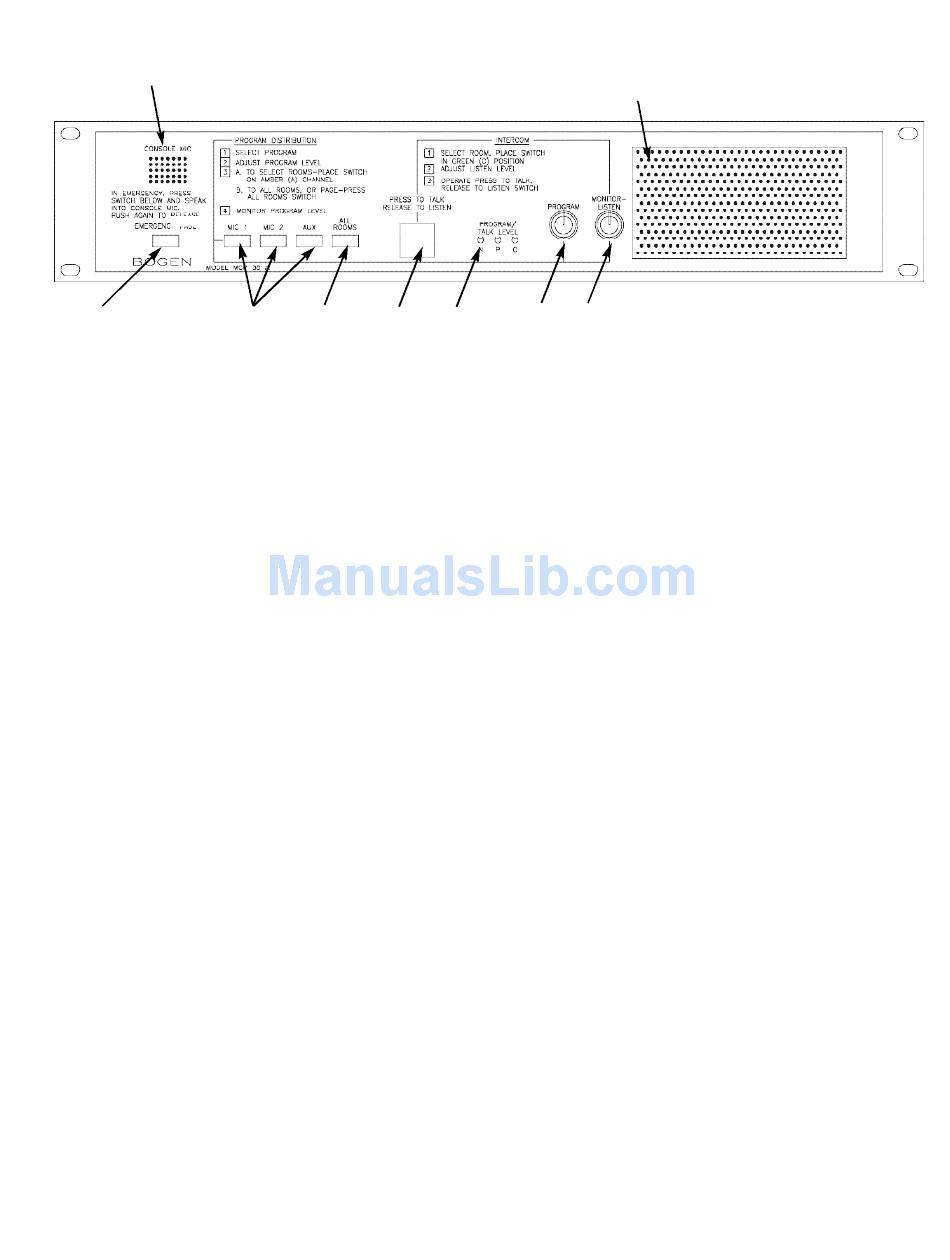

MCP35A Front Control Panel

1
RELEASE
2
1. CONSOLE MIC - Used as microphone 1 or in conjunction with the emergency page or press-to-talk/release-to-
listen (intercom) push-buttons.This mic is always used for two-way intercom calls, using the green button, and
emergency paging using the red button. No external mic can replace the console mic for these functions.
2. EMERGENCY PAGE - Red push-button. Used to make announcements to all speaker stations.Announcements
made using this button override all program distribution and/or switchbank settings.
3. PROGRAM DISTRIBUTION - Push-buttons. Used to make input source selections. Choose from or mix input
from MIC 1 (console or external microphone), MIC 2 (external microphone), or AUX (tuner/cassette player),
as desired.
4. ALL ROOMS - Push-button. Used to distribute a program to all speaker stations with selector panel switches set to
either the "A" or "O" channel.
5. INTERCOM PRESS-TO-TALK/RELEASE TO LISTEN - Push-button. Used to communicate with the speaker
station selected from switchbank channel "C".This does not affect program distribution to other stations.
6. PROGRAM TALK LEVEL - LED indicators.
N (normal) lights green to indicate proper signal level
P (peak) lights amber to indicate occasional higher than normal signal level
O (overload) lights red to indicate possible signal clip.
7. PROGRAM - Amber knob. Used to adjust volume level to speaker stations.
8. MONITOR/LISTEN - Green knob. Used to adjust the volume level to the front panel speaker.
9. FRONT PANEL SPEAKER - Used to monitor a program or to listen to a station via the intercom (C) channel.
3 5
4
9
6 7 8
4
